Automotive Code D HSD Cable Assembly 4+2 Pin Practical Stable

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD LVDS Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details

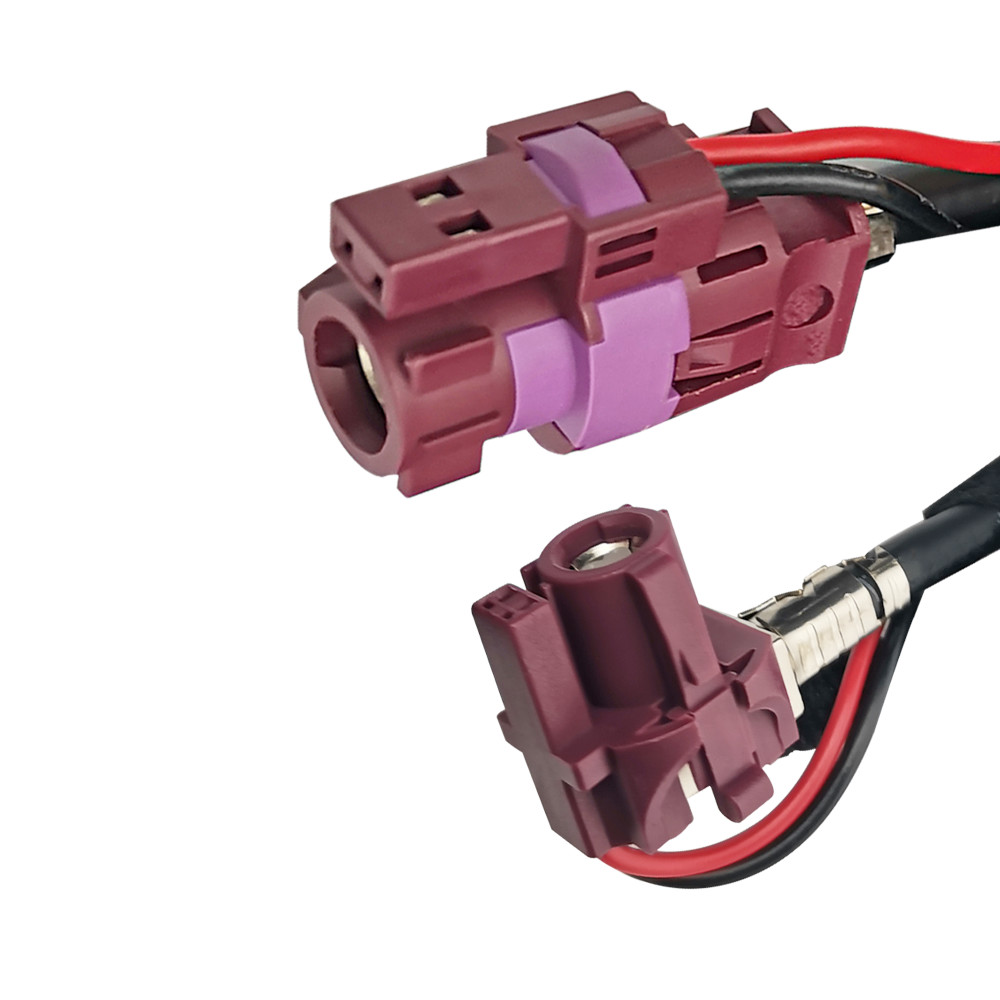

Model Number HSD 4+2PIN Connector And Cable Connector 1 Code D,Straight,Claret Violet Color
Connector 2 Code D,Right Angle,Claret Violet Color Application Automotive
Business Type OEM&ODM MOQ 20 PCS
High Light

Code D HSD Cable Assembly

,

Practical HSD Cable Assembly

,

Stable Automotive Cable Assembly

Leave a Message
Product Description

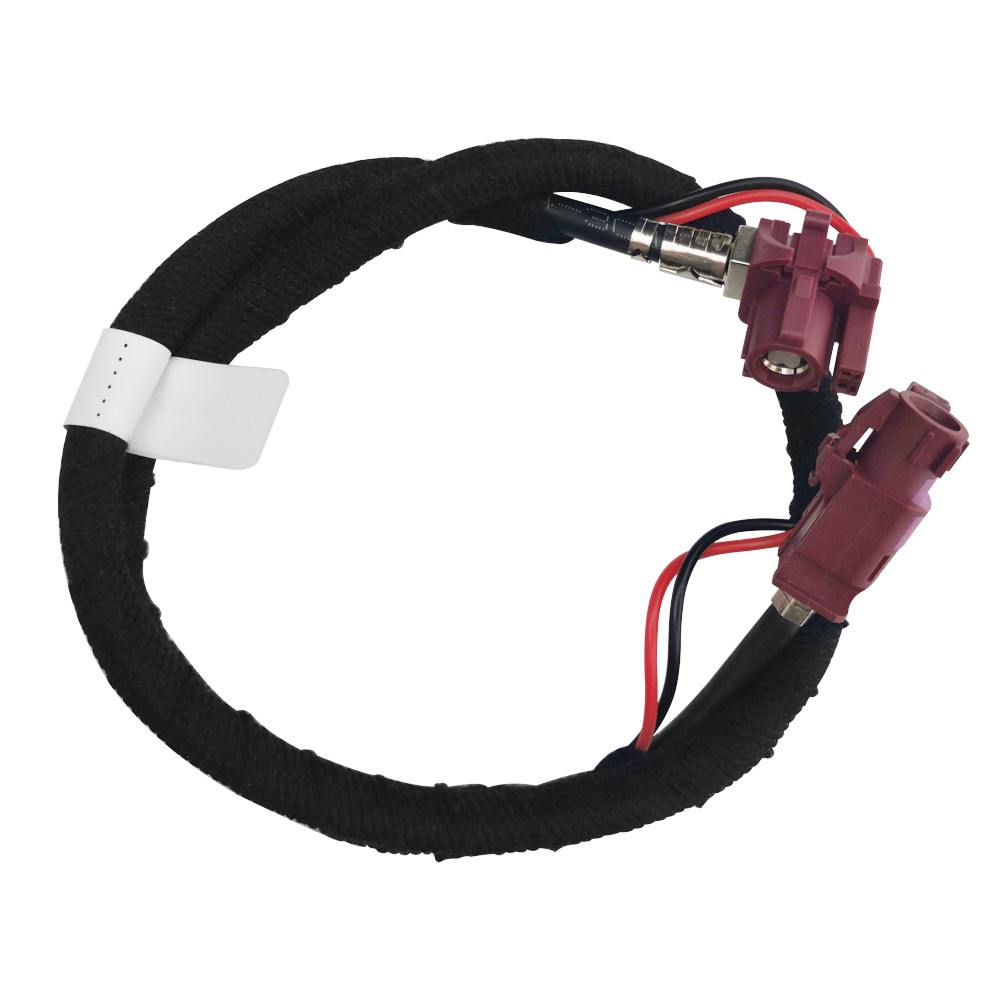

HSD Cable Assembly 4+2-Pin Code D LVDS Extension Cable For Automotive



Product description:

HSD+2, +4, and +8 also include additional power pins (MQS terminals) for power supply. HSD interconnects enable excellent data transmission via LVDS (Low Voltage Differential Signaling), preventing crosstalk and other external sources of interference. High level digital interconnects such as infotainment systems, HD entertainment systems, driver assistance systems, telematics applications or LVDS camera systems can all use this high level digital interconnect.



Main Feature:

1. Excellent data transmission
2. Protection from crosstalk and other external sources of interference
3. Excellent mechanical fit security and robustness
4. mechanical and color coding to prevent mismatches between different signal paths
5. primary and secondary locking mechanisms ensure maximum interconnection security
6. Compliance with LVDS, Ethernet and USB protocols
7. Meets the demanding requirements of the automotive industry

8. MOQ:20 PCS



Applications:

1. Connect the display
2.Main unit and rear seat infotainment module
3.LVDS(Low Voltage Differential Signal)
4.GVIF(Gigabit Video Interface)
5. USB
6.IEEE 1394
7.Ethernet protocol



Offer Custom:

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.



Technical Specifications:



HSD
Coding HSD+2 A.B.C.D.E.F.Z
PIN 4 signal pins,2 power pins
Cable e.g.Dacar 535,Dacar 636
Packing Unit on request
Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C



HSD Coding:

Automotive Code D HSD Cable Assembly 4+2 Pin Practical Stable 0Automotive Code D HSD Cable Assembly 4+2 Pin Practical Stable 1



FAQ:

1.Do you provide samples?
A: Yes, we can provide samples, but you need to pay the shipping cost.

2. Q: Do you accept customizable orders?
A: Yes, we accept OEM and ODM.

3. What are your payment terms?
A: We accept L/C, T/T, Western Union.

4. Q: How can I get the price list?
A: Please contact us with detailed inquiry information so that we can provide you with the latest price.
