IEE 1394 Code Z HSD Wire LVDS Cable Assemblies 4+2-Pin To D For Car

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD LVDS Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details

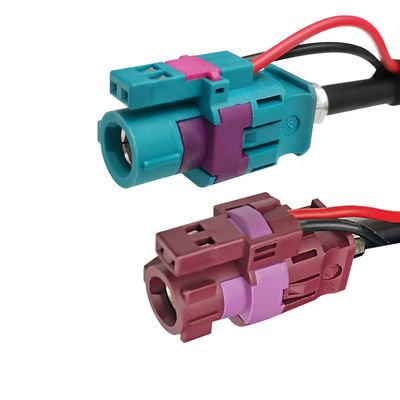

Model Number HSD 4+2PIN Connector And Cable Connector 1 Code D,Claret Violet Color
Connector 2 Code Z, Water Blue Color Application Automotive
Business Type OEM&ODM MOQ 20 PCS
High Light

IEE 1394 HSD Wire

,

Code Z HSD Wire

,

Car LVDS Cable Assemblies

Leave a Message
Product Description

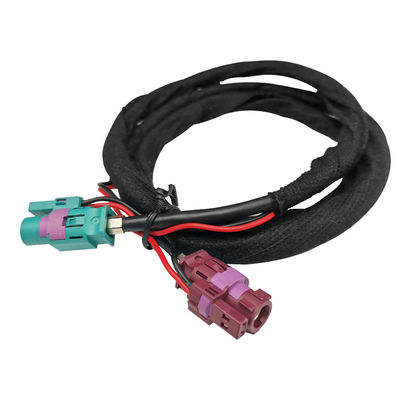

HSD Cable Assembly 4+2-Pin Code Z To D LVDS Extension Cable For Car



Product description:

HSD+2, +4, and +8 also include additional power pins (MQS terminals) for power supply. RF High Speed Data (HSD) cable assembly is a 100 Ω connection system for differential and digital data transmission. HSD cable assembly contains a female contact with a closed entry to prevent mismatching and crosstalk. Typical applications include infotainment modules, head-end devices, trunked displays, and consumer ports.


Main Feature:

1. Excellent data transmission
2. Prevents interference from crosstalk and other external sources
3. 100 Ohm impedance
4. Excellent mechanical mating security and robustness
5. Mechanical and color coding prevents mismatching between different signal paths
6. Primary and secondary locking mechanisms ensure the highest interconnection security
7. Two differential signal pairs can transmit data according to LVDS, GVIF (Gigabit Video Interface), IEEE 1394, USB and Ethernet protocols and specifications

8. MOQ:20 PCS



Applications:

1. Infotainment system
2. HD - Entertainment System
3. Driver Assistance System
4. Telematics application
5. LVDS camera system
6. GVIF video transmission
7. IEE 1394, USB, ethernet data link



Offer Custom:

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.



Technical Specifications:



HSD
Coding HSD+2 A.B.C.D.E.F.Z
PIN 4 signal pins,2 power pins
Cable e.g.Dacar 535,Dacar 636
Packing Unit on request
Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C



HSD Coding:

IEE 1394 Code Z HSD Wire LVDS Cable Assemblies 4+2-Pin To D For Car 0IEE 1394 Code Z HSD Wire LVDS Cable Assemblies 4+2-Pin To D For Car 1



FAQ:

1.Do you provide samples?
A: Yes, we can provide samples, but you need to pay the shipping cost.

2. Q: Do you accept customizable orders?
A: Yes, we accept OEM and ODM.

3. What are your payment terms?
A: We accept L/C, T/T, Western Union.

4. Q: How can I get the price list?
A: Please contact us with detailed inquiry information so that we can provide you with the latest price.
