LVDS Extension FAKRA HSD Cable Code G Blue Gray 7031 Color Stable

Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA HSD Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conversion Style HSD To HSD Connector Type HSD 4P Jack
Connector Code G,Blue Gray Color Gender Male To Female
Business Type OEM&ODM MOQ 20 PCS
High Light

LVDS FAKRA HSD Cable

,

Code G FAKRA HSD Cable

,

Stable LVDS Extension Cable

Leave a Message
Product Description

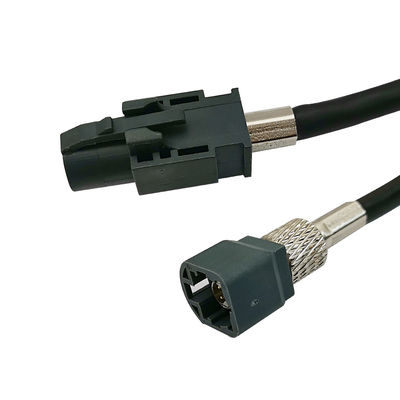

FAKRA HSD Cable Code G Blue Gray/7031 Color LVDS Extension Cable



Introduction of HSD cables:

HSD stands for High Speed Data and is a 4-pin interface that can be used to create a shielded high speed connection system. HSD interconnect products are focused on automotive applications, such as internal compartments for connecting displays, hosts and rear seat infotainment modules.



Main Feature:

1. Meet the demanding requirements of the automotive industry
2. High anti-interference capability
3. Meet the needs of high-speed digital data transmission in vehicles
4. Prevents misuse due to a secure coding system
5. High assembly safety due to the primary and secondary locking system
6. High stability and reliability, high precision, perfect docking with the original car

7. MOQ: 20 PCS



Application:

1.Automotive electronics
2.Telecommunications industry, such as radio base stations
3.Digital infotainment electronics
4.Digital symmetric networks
5.LVDS cameras, USB connectivity, Ethernet (IEEE 802.3) and FireWire (IEEE 1394)



Offer Custom:

Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.



Technical Specifications:



HSD
Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Insulation resistance ≥ 1x 10³ MΩ
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Contact current depending on cable type <3A DC @85℃ ambient temperature
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C



HSD Coding:

LVDS Extension FAKRA HSD Cable Code G Blue Gray 7031 Color Stable 0LVDS Extension FAKRA HSD Cable Code G Blue Gray 7031 Color Stable 1



FAQ:

1.Q: What is your brand?
A: LEADSIGN.


2.Q: Can you provide customization service?
A:Of course you can. We accept OEM and ODM orders.


3.Q: Can you send samples?
A: Yes, our samples are free, customers only need to pay the courier fee.


4.Q: How can I get the price list?
A: Please contact us with detailed inquiry information so that we can provide you with the latest price.
