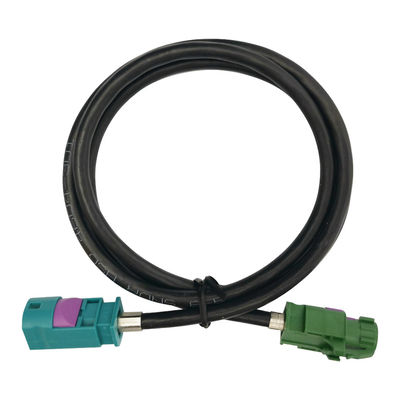

RF GPS FAKRA HSD Cable Code E To Z High Speed Data Transmission

Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA HSD Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type HSD 4P Jack Connector 1 Code E,Leaf Green Color
Connector 2 Code Z,Waterblue Color Application Telematics, Multimedia, Infotainment, GPS, Navigation
Business Type OEM&ODM MOQ 20 PCS
High Light

RF FAKRA HSD Cable

,

GPS FAKRA HSD Cable

,

High Speed FAKRA RF Cable

Leave a Message
Product Description

RF High Speed Data Transmission FAKRA HSD Cable Code E To Z For GPS



Introduction of HSD cables:

HSD connectors feature multiple color codes, easy identification and unique keying to prevent mismating and meet the specific mechanical and environmental requirements of the automotive industry. Widely used as vehicle high speed data transmission connection, in-car entertainment system, in-car audio and video transmission, LVDS camera, tire pressure monitoring and alarm system, water supply system, car radio, car phone, car antenna.



Main Feature:

1. primary and secondary locks
2. Different codes on the plastic housing to prevent misconnection
3. easy to install
4. High cable retention
5. easy identification and unique keying to prevent mismatching
6. Meet the special mechanical and environmental requirements of the automotive industry

7. MOQ: 20 PCS



Application:
1.Automotive
2.Global positioning satellite
3.Remote Vehicle Diagnostics
4.Infotainment Systems
5.In-vehicle audio and video transmission
6.USB Connections, IEEE 1394, Ethernet and LVDS camera



Offer Custom:

Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.



Technical Specifications:



HSD
Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Insulation resistance ≥ 1x 10³ MΩ
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Contact current depending on cable type <3A DC @85℃ ambient temperature
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C



HSD Coding:

RF GPS FAKRA HSD Cable Code E To Z High Speed Data Transmission 0RF GPS FAKRA HSD Cable Code E To Z High Speed Data Transmission 1



FAQ:

1.Q: What is your brand?
A: LEADSIGN.


2.Q: Can you provide customization service?
A:Of course you can. We accept OEM and ODM orders.


3.Q: Can you send samples?
A: Yes, our samples are free, customers only need to pay the courier fee.


4.Q: How can I get the price list?
A: Please contact us with detailed inquiry information so that we can provide you with the latest price.
