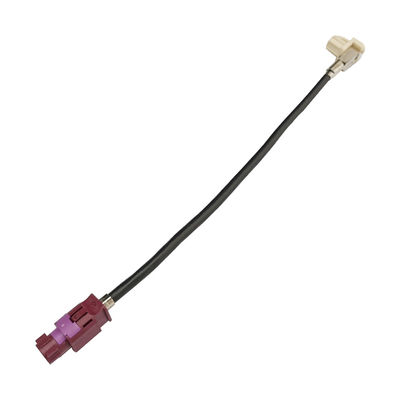

Code B To D FAKRA HSD Cable Assemblies For Rear View Backup Camera

Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA HSD Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details

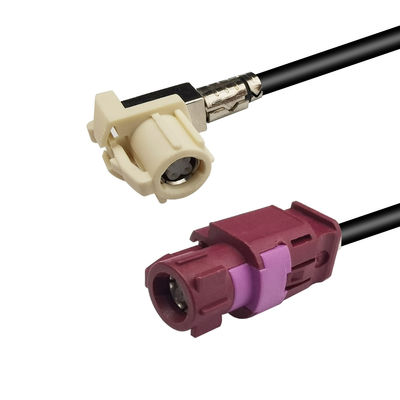

Connector Type HSD 4P Jack Connector 1 Code B, White Color
Connector 2 Code D, Claret Violet Color Application Rear View Backup Camera
Business Type OEM&ODM MOQ 20 PCS
High Light

Code B FAKRA HSD Cable

,

Code D FAKRA HSD Cable

,

Camera FAKRA Cable Assemblies

Leave a Message
Product Description

FAKRA HSD Cable Code B To D Connector For Rear View Backup Camera



Introduction of HSD cables:

HSD system is designed for automotive markets such as LVDS cameras, USB and IEEE 1394 applications. the HSD system features mechanical keying, latching, color coding options and minimum dimensions to meet global automotive requirements. HSD is a high-performance digital system that protects against crosstalk and interference from external sources.



Main Feature:

1. Primary and secondary locks
2. Crimp connection
3. High cable holding force
4. Different codes on plastic housing to prevent misconnection
5. Fully shielded connector system with different wire diameters and types
6. High level of process automation and global manufacturing system

7. MOQ: 20 PCS



Application:
1. Automotive electronics
2. Telecommunications
3. Digital infotainment electronics
4. Digital symmetric networks
5. USB 1.0, 2.0, 3.0
6. LVDS
7. Ethernet
8. IEEE 1394
9. GVIF



Offer Custom:

Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.



Technical Specifications:



HSD
Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Insulation resistance ≥ 1x 10³ MΩ
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Contact current depending on cable type <3A DC @85℃ ambient temperature
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C



HSD Coding:

Code B To D FAKRA HSD Cable Assemblies For Rear View Backup Camera 0Code B To D FAKRA HSD Cable Assemblies For Rear View Backup Camera 1



FAQ:

1.Q: What is your brand?
A: LEADSIGN.


2.Q: Can you provide customization service?
A:Of course you can. We accept OEM and ODM orders.


3.Q: Can you send samples?
A: Yes, our samples are free, customers only need to pay the courier fee.


4.Q: How can I get the price list?
A: Please contact us with detailed inquiry information so that we can provide you with the latest price.
