RF Coaxial FAKRA HSD Cable Code K To C Connector For Car Antenna

Place of Origin CHINA
Model Number FAKRA HSD Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

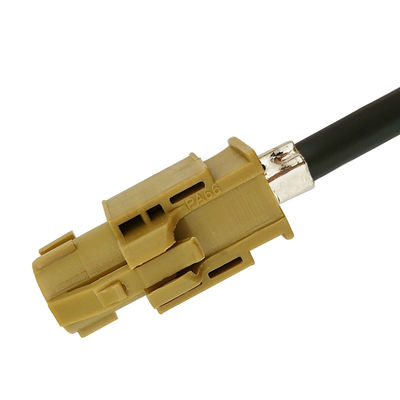

Connector Type HSD 4P Jack Connector 1 Code K,Curry Color

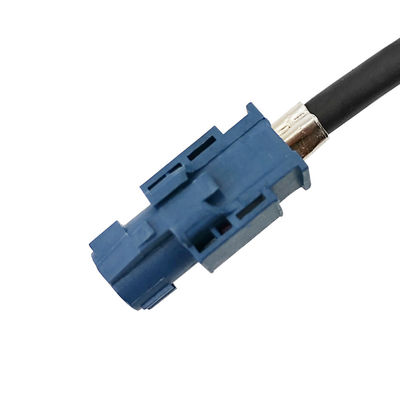

Connector 2 Code C,Blue Color Application Automotive
Business Type OEM&ODM MOQ 20 PCS
High Light

Coaxial FAKRA HSD Cable




Antenna FAKRA RF Coaxial Cable

Leave a Message
Product Description

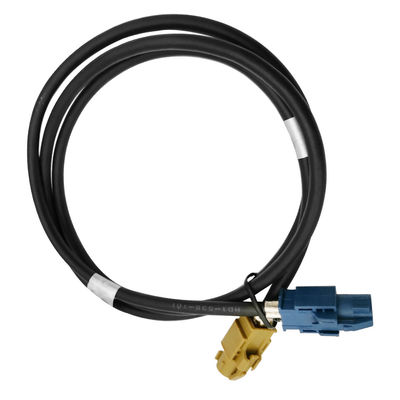

RF Coaxial FAKRA HSD Cable Code K To C Connector For Car Antenna


Introduction of HSD cables:

HSD features a shielded twisted pair with mechanical keying and locking for high connection retention and coding to avoid misuse. HSD connectors are highly resistant to crosstalk and external interference, making the HSD cable and PCB connector system perfect for LVDS cameras, USB connections, Ethernet and FireWire (IEEE 1394) applications.


Main Feature:

1. Up to 6Gbps data transfer rate
2. Different codes on the plastic housing to prevent misconnection
3.Primary and secondary locking systems lead to high assembling security
4. Compliant with LVDS, Ethernet and USB protocols
5. Full range of board-side and wire-to-wire connectors available for unsealed and sealed applications
6. Suitable for different wire types and sizes

7. MOQ: 20 PCS



1. Connection monitoring
2. Rear-seat infotainment system module
3. Can use various protocols such as LVDS (Low Voltage Differential Signaling), GVIF (Gigabit Video Interface), USB, IEEE 1394 and Ethernet protocols
4. Bluetooth
5. Surround camera
6. Global satellite positioning
7. Vehicle remote diagnostics


Offer Custom:

Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.


Technical Specifications:


Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Insulation resistance ≥ 1x 10³ MΩ
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Contact current depending on cable type <3A DC @85℃ ambient temperature
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C


HSD Coding:

RF Coaxial FAKRA HSD Cable Code K To C Connector For Car Antenna 0RF Coaxial FAKRA HSD Cable Code K To C Connector For Car Antenna 1



1.Q: What is your brand?

2.Q: Can you provide customization service?
A:Of course you can. We accept OEM and ODM orders.

3.Q: Can you send samples?
A: Yes, our samples are free, customers only need to pay the courier fee.

4.Q: How can I get the price list?
A: Please contact us with detailed inquiry information so that we can provide you with the latest price.
