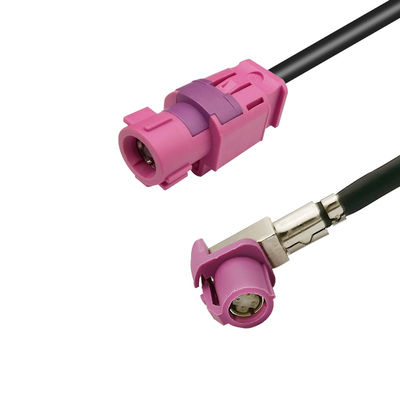

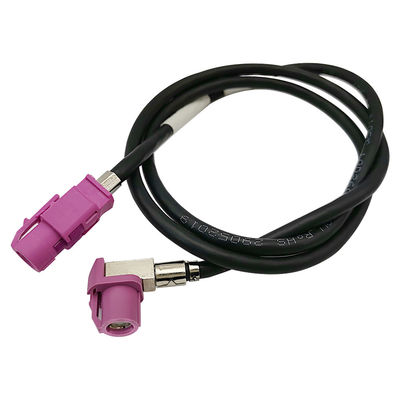

Code H Connector FAKRA HSD Extension Cable Assembly 4 Pin For Car Video Interface

Place of Origin CHINA
Model Number FAKRA HSD Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Connector Type HSD 4P Jack Connector 1 Fakra HSD H Straight Plug
Connector 2 Fakra HSD H Right Angle Plug Application Automotive,Audio & Video
Business Type OEM&ODM MOQ 20 PCS
High Light

Code H FAKRA HSD Extension Cable


4 Pin FAKRA HSD Extension Cable


Car FAKRA Cable Assembly

Leave a Message
Product Description

FAKRA HSD Extension Cable 4pin Code H Connector For Car Video Interface


Introduction of HSD cables:

Along with the rapid development of automotive networking, automotive connectors, especially RF connectors, antennas, GPS, high-definition video and other connectors with the central control and other applications are becoming more and more widespread. HSD connector is a differential connector, developed and designed specifically for the automotive industry, generally used for in-car infotainment systems, camera interfaces and other high-speed data transmission functions, single-wire four-core.


Main Feature:

1. Up to 6Gbps data transfer rate
2. Suitable for different wire types and sizes
3. Different codes on the plastic housing to prevent misconnection
4. Compliant with LVDS, Ethernet and USB protocols
5. Full range of board-side and wire-to-wire connectors available for unsealed and sealed applications

6. MOQ: 20 PCS



1.Traditional infotainment system
2.Dashboard/Touch Screen
4.USB connection
5.Surround camera
6. Global satellite positioning
7. Vehicle remote diagnostics
8. USB connection, IEEE 1394, Ethernet and LVDS camera


Offer Custom:

Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.


Technical Specifications:


Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Insulation resistance ≥ 1x 10³ MΩ
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Contact current depending on cable type <3A DC @85℃ ambient temperature
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C


HSD Coding:

Code H Connector FAKRA HSD Extension Cable Assembly 4 Pin For Car Video Interface 0Code H Connector FAKRA HSD Extension Cable Assembly 4 Pin For Car Video Interface 1



1.Q: What is your brand?

2.Q: Can you provide customization service?
A:Of course you can. We accept OEM and ODM orders.

3.Q: Can you send samples?
A: Yes, our samples are free, customers only need to pay the courier fee.

4.Q: How can I get the price list?
A: Please contact us with detailed inquiry information so that we can provide you with the latest price.
