Code K To D FAKRA HSD Extension Cable , Car Video LVDS HSD Cable

Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA HSD Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details

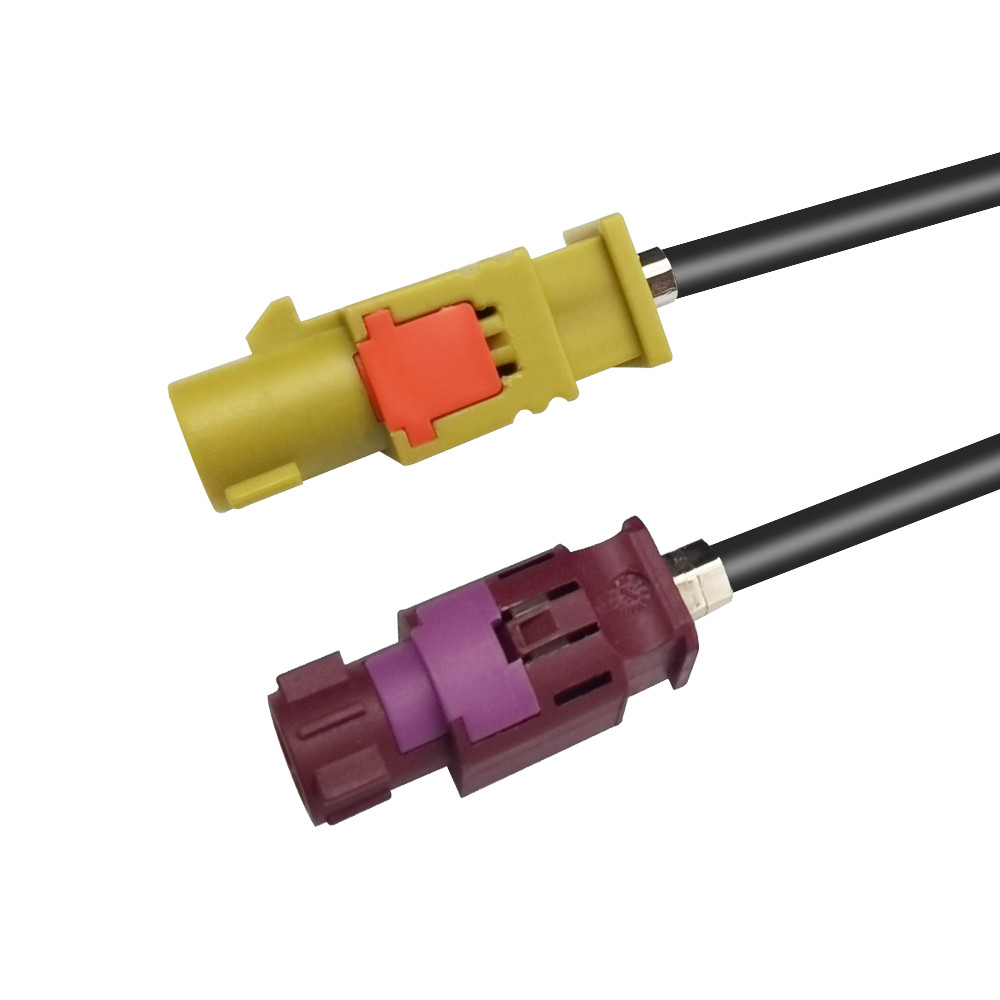

Connector Type HSD 4P Jack Connector 1 Code K,Curry Color
Connector 2 Code D,Claret Violet Color Application Automotive,Audio & Video
Business Type OEM&ODM MOQ 20 PCS
High Light

Code K HSD Extension Cable

,

Code D HSD Extension Cable

,

Car Video LVDS HSD Cable

Leave a Message
Product Description

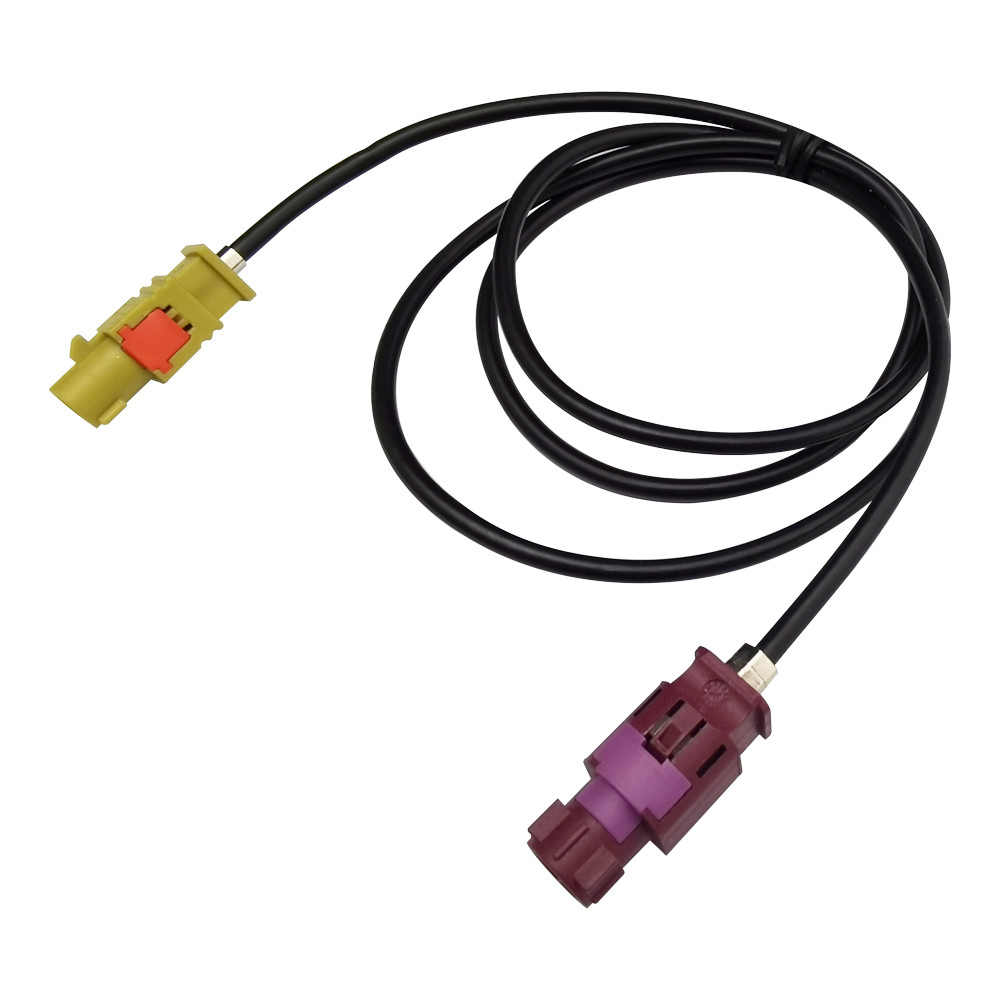

FAKRA HSD Cable Code K To D LVDS Extension Cable For Car Video Interface



Introduction of HSD cables:

HSD connectors are differential connectors developed and designed for the automotive industry for applications such as LVDS cameras, USB and IEEE1394, featuring high speed transmission and high shielding efficiency. HSD connectors feature multiple color codes, easy identification and unique keying to prevent mismatching and meet specific mechanical and environmental requirements of the automotive industry.



Main Feature:

1. Fully shielded connector system with different wire diameters and types

2. Compliant with LVDS, Ethernet and USB protocols

3. Full range of connectors for unsealed and sealed applications

4. Expanded portfolio of PCB-side connectors

5. High level of process automation and global manufacturing system

6. MOQ: 20 PCS



Applications:

1.Traditional Infotainment

2.Dashboard/Touch Screen

3.HD screen

4.Bluetooth

5.USB connectivity

6.Dual-band WIFI

7.Surround Camera



Offer Custom:

Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.



Technical Specifications:



HSD
Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Insulation resistance ≥ 1x 10³ MΩ
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Contact current depending on cable type <3A DC @85℃ ambient temperature
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C



HSD Coding:

Code K To D FAKRA HSD Extension Cable , Car Video LVDS HSD Cable 0Code K To D FAKRA HSD Extension Cable , Car Video LVDS HSD Cable 1



FAQ:

1.Q: What is your brand?
A: LEADSIGN.


2.Q: Can you provide customization service?
A:Of course you can. We accept OEM and ODM orders.


3.Q: Can you send samples?
A: Yes, our samples are free, customers only need to pay the courier fee.


4.Q: How can I get the price list?
A: Please contact us with detailed inquiry information so that we can provide you with the latest price.
