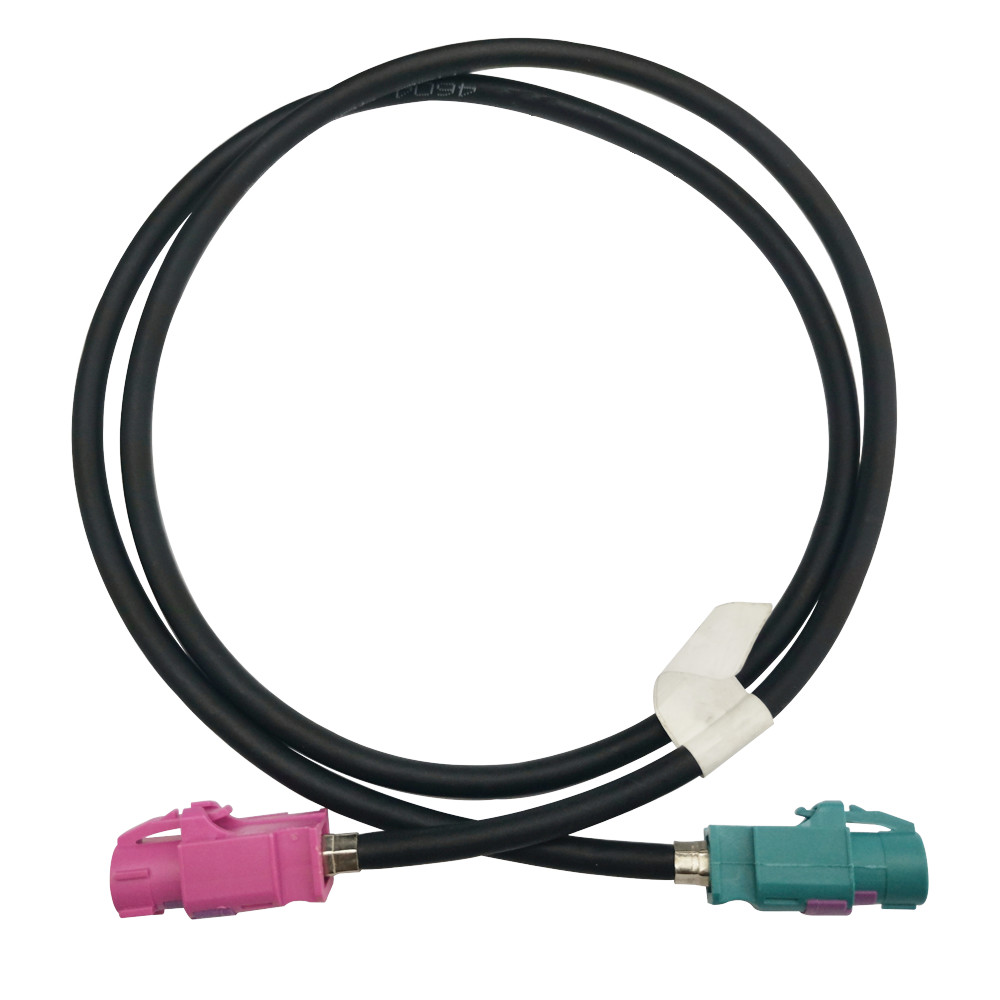

Stable HSD FAKRA LVDS Cable Lightweight Code Z To H For Video
| Place of Origin | CHINA |
|---|---|
| Brand Name | LEADSIGN |
| Model Number | FAKRA HSD Cable |
| Minimum Order Quantity | 20 PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details

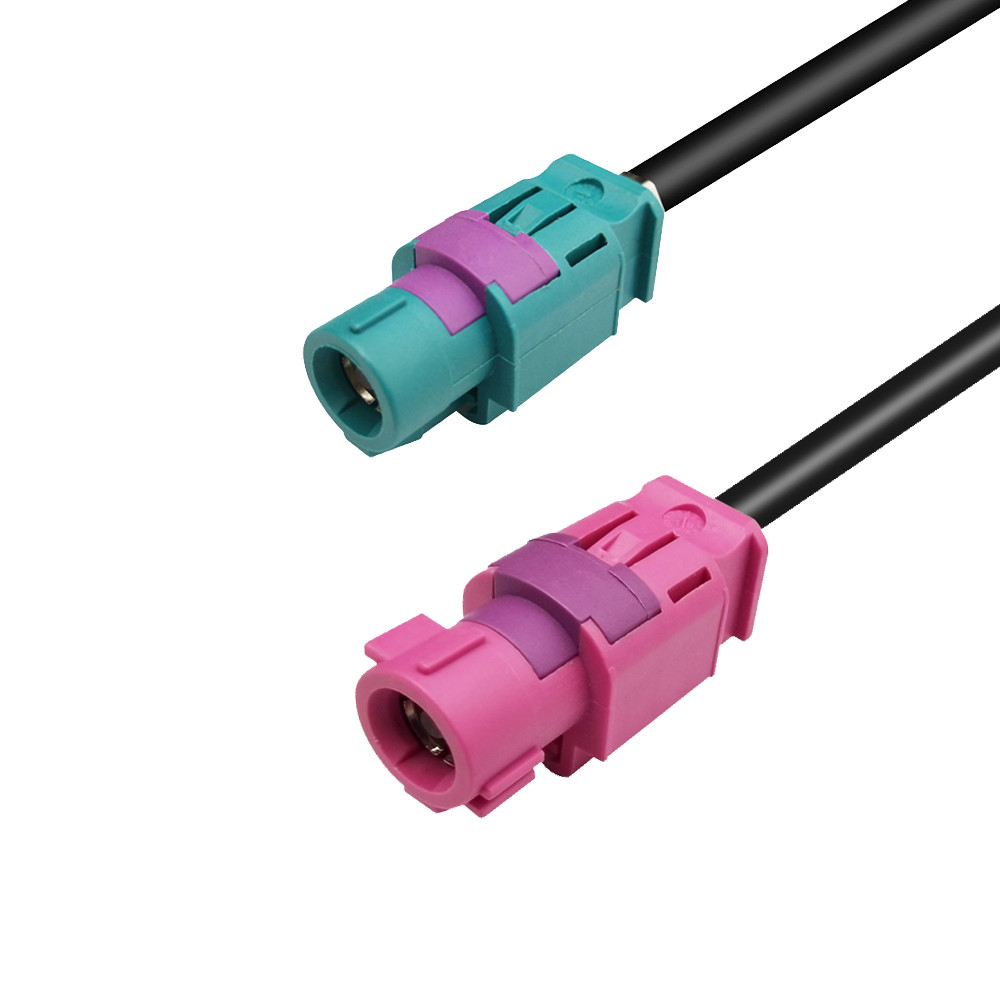

| Connector Type | HSD 4P Jack | Connector 1 | Code Z,Waterblue Color |
|---|---|---|---|
| Connector 2 | Code H,Heather Violet Color | Application | Parking Sensor, Parking Sensor System |
| Business Type | OEM&ODM | MOQ | 20 PCS |
| High Light | Stable FAKRA LVDS Cable,Lightweight FAKRA LVDS Cable,Video HSD LVDS Cable |
||
Product Description
FAKRA HSD Cable Code Z To H LVDS Install Harness Wire For Video
Introduction of HSD cables:
HSD: High Speed Data, High Speed Data Transfer. Generally used in car infotainment systems, camera interfaces and other high-speed data transmission functions, single-wire four-core. HSD connector is a differential connector, developed and designed for the automotive industry, used in applications such as LVDS cameras, USB and IEEE1394, with high-speed transmission and high shielding efficiency.
Main Feature:
1. secure coding system to prevent misuse
2. Easy identification and unique keying to prevent mismatching
3. High performance digital system for low voltage differential signals
4. Data rates up to 6 Gbps
5. Protection against crosstalk and interference from external sources
6. high holding power
7. Meet the special mechanical and environmental requirements of the automotive industry
8. MOQ: 20 PCS
Applications:
1.Vehicle high speed data transmission connection
2.In-vehicle entertainment system
3.In-vehicle audio and video transmission
4.LVDS camera
5.In-vehicle radio
6.In-vehicle phone
7.Car antenna
Offer Custom:
Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.
Technical Specifications:
| HSD | |
| Electrical Data | |
| lmpedance | 100Ω |
| Frequency range depending on cable type | DC to 6 GHz |
| Insulation resistance | ≥ 1x 10³ MΩ |
| Signal contact resistance | ≤10 mΩ |
| Outer contact resistance | ≤7.5 mΩ |
| Test voltage | 250 V rms |
| Working voltage | 60 V rms |
| Contact current depending on cable type | <3A DC @85℃ ambient temperature |
| Mechanical Data | |
| Mating cycles | ≥25 |
| Engagement force | ≤30 N |
| Disengagement force | ≥5N |
| Retention force latch | ≥ 110N |
| Environmental Data | |
| Temperature range | -40°C to +105°C |
HSD Coding:
FAQ:
1.Q: What is your brand?
A: LEADSIGN.
2.Q: Can you provide customization service?
A:Of course you can. We accept OEM and ODM orders.
3.Q: Can you send samples?
A: Yes, our samples are free, customers only need to pay the courier fee.
4.Q: How can I get the price list?
A: Please contact us with detailed inquiry information so that we can provide you with the latest price.
