OEM Code Z FAKRA HSD Cable LVDS Wire Harness For Screen Display

Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA HSD Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conversion Style HSD To HSD Connector Type HSD 4P Jack, Z Code
Connector Orientation Straight Application Parking Sensor, Parking Sensor System
Business Type OEM&ODM MOQ 20 PCS
High Light

OEM FAKRA HSD Cable

,

Code Z FAKRA HSD Cable

,

Display FAKRA LVDS Wire Harness

Leave a Message
Product Description

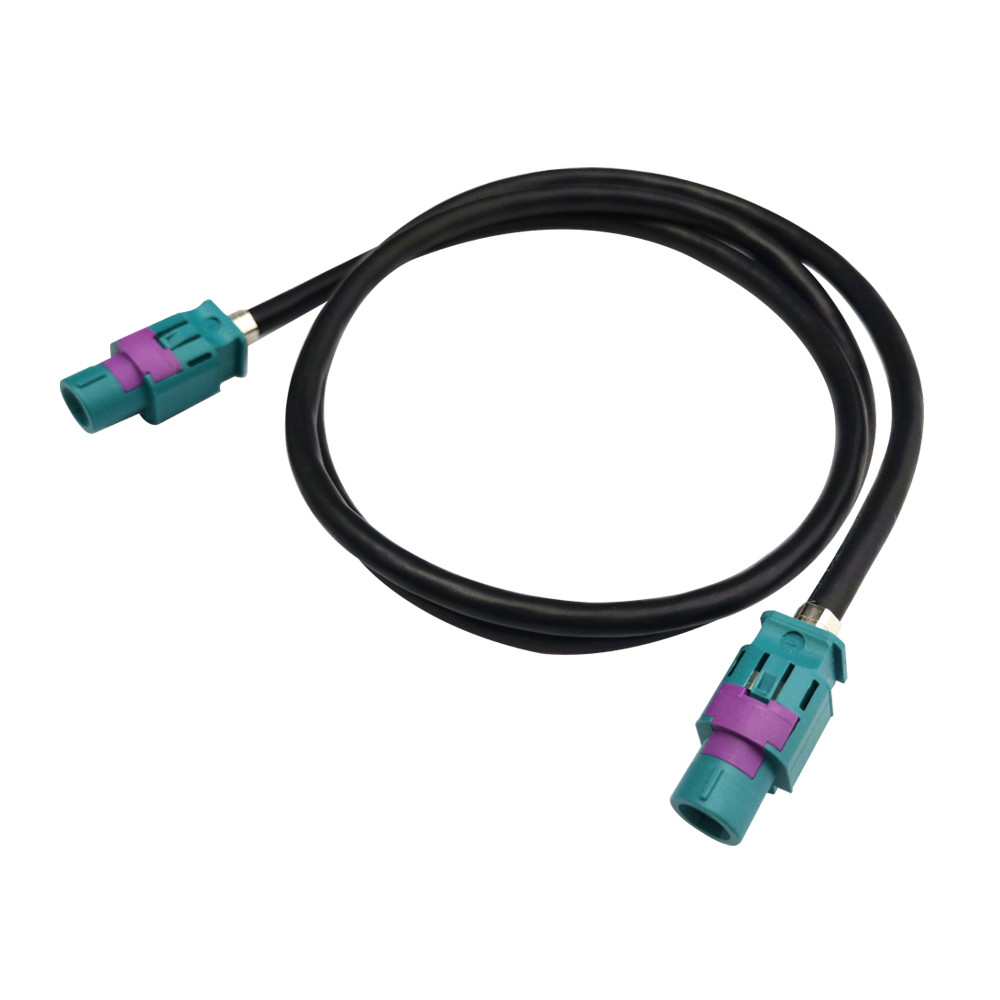

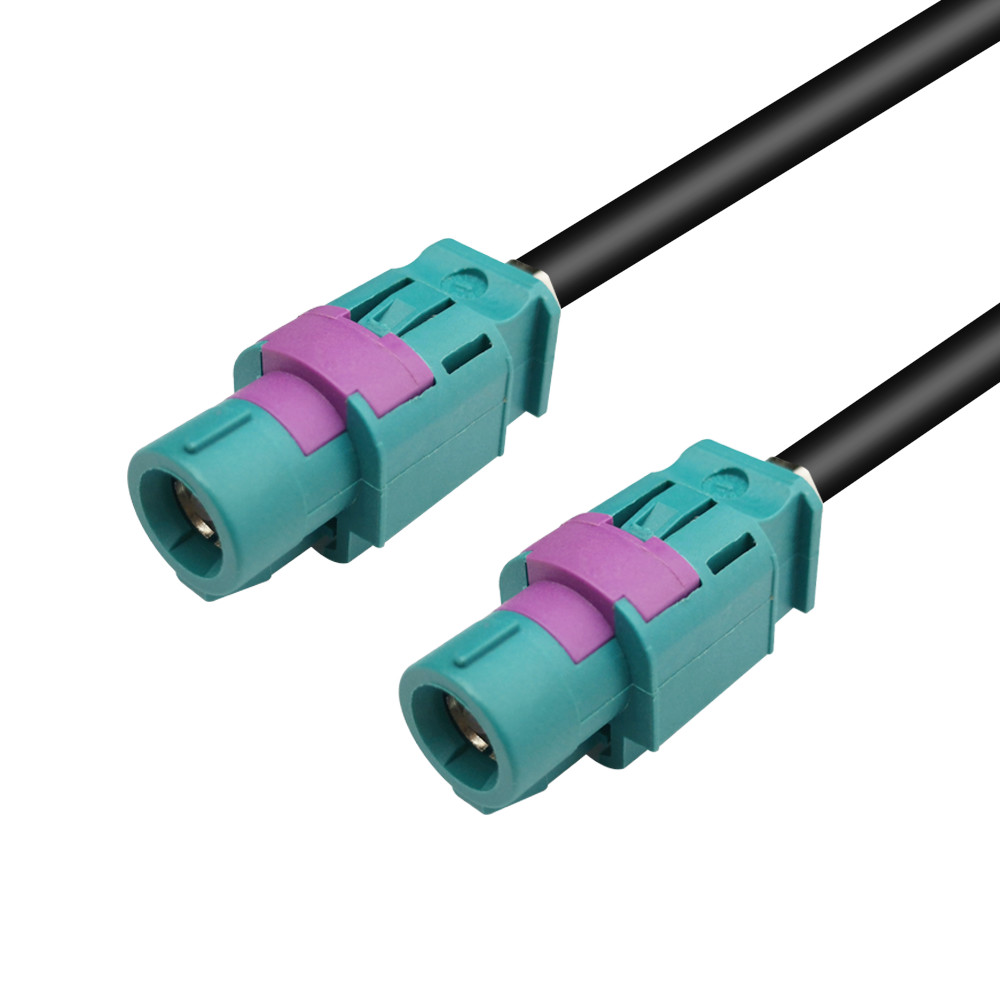

FAKRA HSD Cable Code Z Screen Display LVDS Install Harness Wire



Introduction of HSD cables:
HSD (High Speed Data) meets this need for automotive high speed data communication systems.HSD interconnect products are focused on automotive applications such as internal compartments for connecting displays, hosts and rear seat infotainment modules. The product portfolio is available for various protocols such as LVDS (Low Voltage Differential Signaling), GVIF (Gigabit Video Interface), USB, IEEE 1394 and Ethernet protocols.



Main Feature:

1. Secure coding system to prevent abuse
2. With primary and secondary locking system, high assembly security
3. Multiple housings for space-saving and fast insertion operation
4. High-performance digital system for low-voltage differential signals
5. data rates up to 6 Gbps
6. protection against crosstalk and interference from external sources
7. high holding power
8. Meet the demanding requirements of the automotive industry
9. MOQ: 20 PCS



Applications:
1.Infotainment Modules
2.Headend Units
3.Cluster Displays
4.Consumer Ports

5. Advanced Driver Assistance Systems (ADAS)
6. Telematics, multimedia, infotainment, GPS, navigation and cameras
7. Body control, safety, security and comfort



Offer Custom:

Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.



Technical Specifications:



HSD
Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Insulation resistance ≥ 1x 10³ MΩ
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Contact current depending on cable type <3A DC @85℃ ambient temperature
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C



HSD Coding:

OEM Code Z FAKRA HSD Cable LVDS Wire Harness For Screen Display 0OEM Code Z FAKRA HSD Cable LVDS Wire Harness For Screen Display 1



FAQ:

1.Q: What is your brand?
A: LEADSIGN.


2.Q: Can you provide customization service?
A:Of course you can. We accept OEM and ODM orders.


3.Q: Can you send samples?
A: Yes, our samples are free, customers only need to pay the courier fee.


4.Q: How can I get the price list?
A: Please contact us with detailed inquiry information so that we can provide you with the latest price.
