Small Stable FAKRA Coax Connector , Code K FAKRA Coaxial Cable Connector

Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA Cable Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Quality RF Connector Code K-Code,Curry
Impedance 50Ω Application Data Transmission, Coaxial
MOQ 20 PCS Business Type OEM&ODM
High Light

Small FAKRA Coax Connector

,

Stable FAKRA Coax Connector

,

Code K FAKRA Coaxial Cable Connector

Leave a Message
Product Description

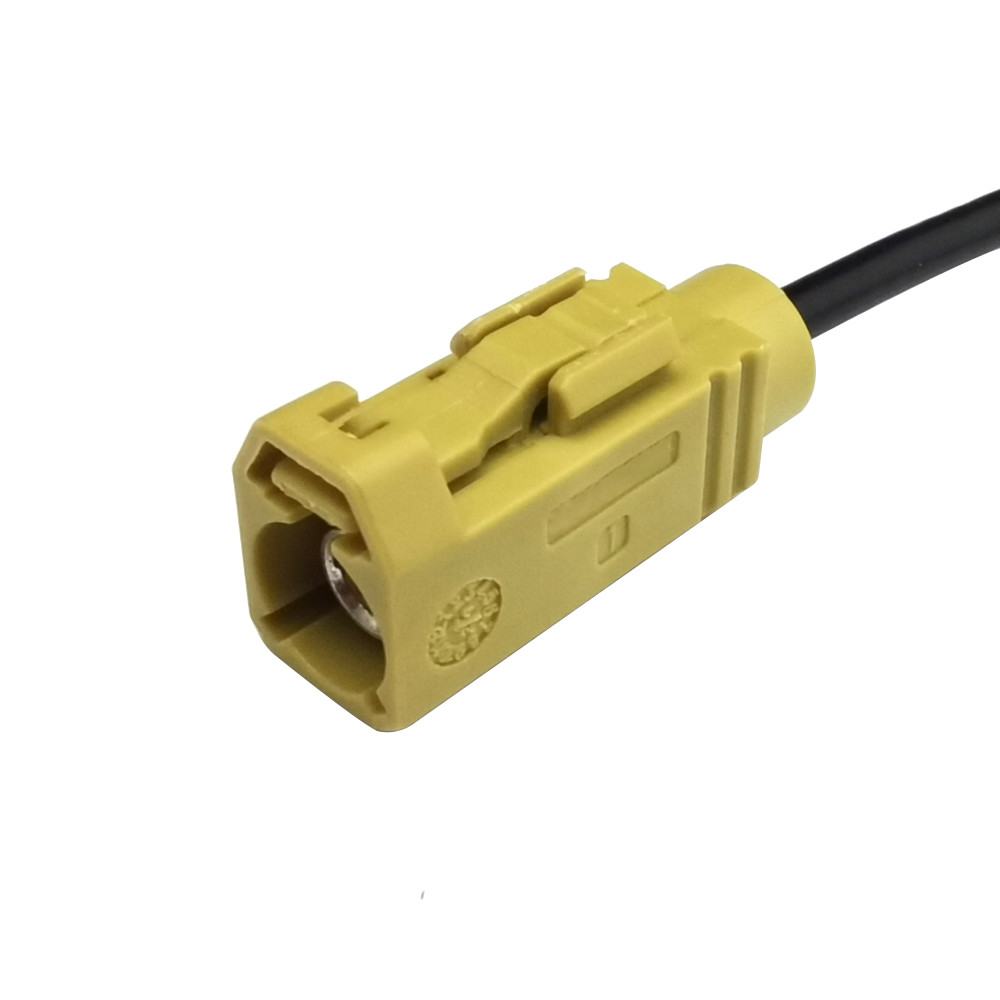

RF FAKRA Cable Connector Straight Crimp Jack Code K For Coaxial Cable



Product description:

FAKRA connectors are used throughout the automobile for applications such as telematics and GPS navigation, entertainment systems, Bluetooth, cell phones and keyless entry. FAKRA automotive connectors offer performance up to 6 GHz to meet the unique mechanical and environmental requirements of the automotive industry, ensuring reliable communication in and out of the vehicle and with each other.



Main Feature:

1. small size
2. Meet the demanding requirements of the automotive industry
3. Double lock with color and structure for foolproof assembly
4. Multiple housings for space saving and fast insertion operation
5. Available for various coaxial cables, such as RG-58, RF-174, RG-316, RG-178 and other miniature cables
6. Reliable and durable.
7. MOQ:20PCS.



Applications:

1.RF coaxial cable in the RF circuit of electronic instruments
2.Connecting radio equipment
3.Wrap-around camera
4.GPS antenna
5. TV/video monitor
6. Accident data analysis
7. Remote keyless entry
8. Navigation system



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of FAKRA connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



FAKRA Connector

Electrical

lmpedance 50 Ω
Frequency range DC -6 GHz
Voltage Rating 335 Volts RMS Continuous
Dielectric Withstanding Voltage 800 VRMS Max
Insulation Resistance 1000 MΩ Min
Test voltage 750V DC
Working voltage 60V DC
Contact current (depending on cable size) ≤1A DC

Mechanical

Mating cycles 100 Min
Engagernent force (single, standard) ≤25N
Engagerment force (waterproof) ≤45N
Disengagernent force ≥2N
Retention force latch ≥ 110N
Retention force primary lock ≥ 80 N
Retention force secondary lock ≥60 N

Environmental

Temperature range -40°C-+105°C



FAKRA Coding:

Small Stable FAKRA Coax Connector , Code K FAKRA Coaxial Cable Connector 0

FAQ:

1.Q:Can you provide samples to me?
A:Yes,we can provide samples to you and you need to pay the shipping cost.


2.Q: Can your company accept customize?
A: Welcome OEM & ODM.



3.Q:How can l get the FAKRA connector price list?
A:Please contact us with detailed inquiry information, so we can offer the latest price for you.
