Waterproof Car FAKRA Cable Connector Z Jack Lightweight Durable

Place of Origin China
Brand Name LDS
Certification E-Mark
Model Number LDS-FAKRA-01ZMW
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Carton size 29*13*11CM,20pcs per carton
Delivery Time 7~14 work days
Supply Ability 200000 PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Impedance 100Ω Frequency DC To 2 GHz
Insulation Resistance ≥1000 MΩ Test Voltage 250 V Rms
Working Voltage 100 V Rms Power Current ≤1.5A DC
Working Temperature -40℃ ~ +105℃ Waterproof Grade IP67
High Light

Waterproof FAKRA Cable Connector


Car FAKRA Cable Connector


Lightweight FAKRA Waterproof Connector

Leave a Message
Product Description

High Quality Waterproof Fakra Cable Connector Fakra Z Jack for Car

Wakerproof Fakra cable connector products are designed for high-speed data transmission to meet automotive data rates up to 6 GHz. The product is waterproof to IP67. The specification coding system of the FAKRA connectors guarantees easy and fast assembly; the locking system with primary and secondary locks guarantees the highest degree of installation and contact security.
Key Feature:
1. Meeting the high demands of the automotive industry in terms of functionality and safety
2. complex mechanical and color coding system with 13 different codes
3. maximum assembly safety
4. efficient automated further processing solutions
5. Rotatable coaxial inserts and cables in plastic housings

6. MOQ:20PCS
Technical Specifications:

 Housing  PA
 Center Pin  Copper Alloy
 Outer contact  Zinc Alloy
 Insulator  HTN
Electrical Performance
 Impedance  100 Ω
 Frequency Range  DC to 2 GHz
 Return Loss

 ≥20 dB to 1 GHz
 ≥17 dB to 2 GHz

 Insertion Loss  ≤0.1 dB to 2 GH
 Insulation Resistance  ≥ 1000 MΩ
 Center Contact Resistance  ≤ 8mΩ
 Test Voltage  250 V rms
 Working Voltage  100 V rms
 Contact Current  ≤ 1.5 A DC
Mechanical Performance
 Mating Cycles  ≥ 25 Time
 Engagement Force  ≤ 30 N
 Disengagement Force  ≥5 N
 Retention Force Latch  ≥ 110 N
 Temperature Range  -40 °C ~ +105 °C
 Waterproof Garde  IP67

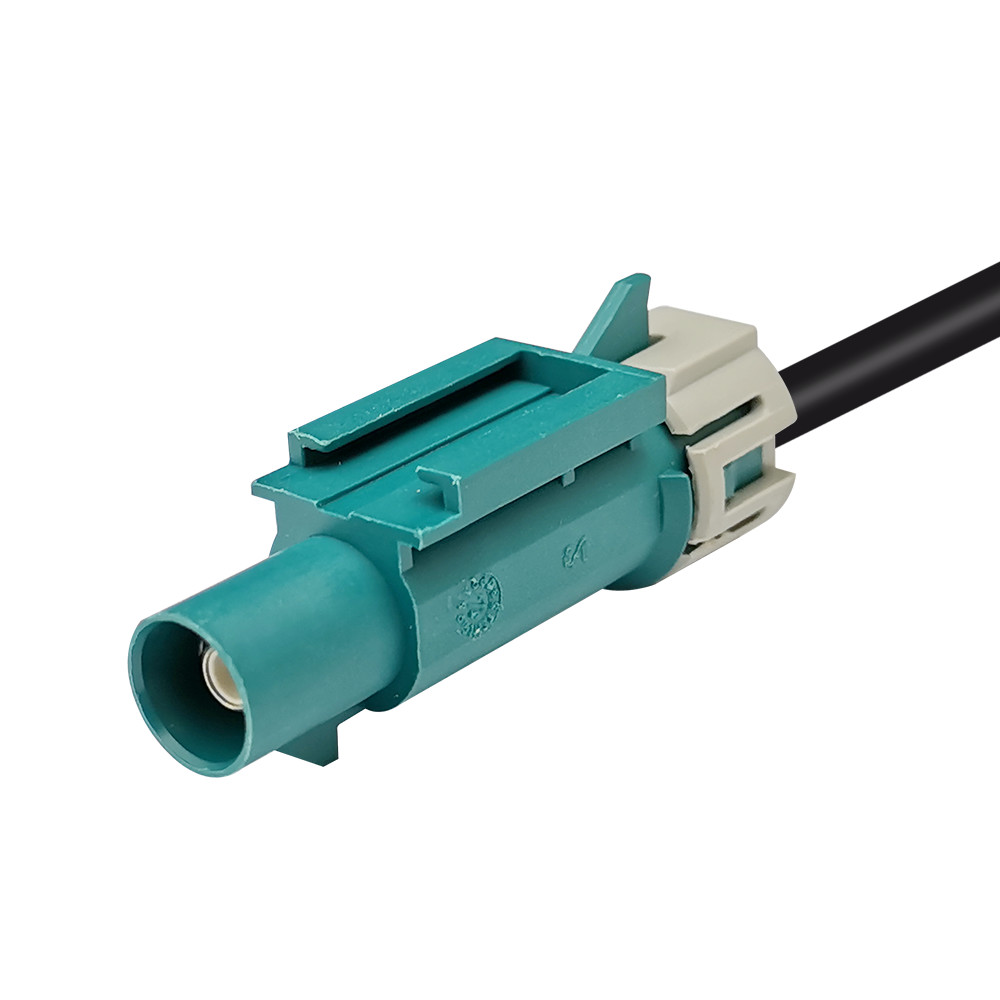

Product image:

Waterproof Car FAKRA Cable Connector Z Jack Lightweight Durable 0


1.Q:How do I apply for samples?

   A:You can contact our customer service, you only need to pay the freight, our samples are free.


2.Q:Does your factory accept customized service?

   A:Yes,we accept OEM&ODM.


3.Q:What are your company's strengths?

   A:We have a professional technical team to ensure quality as well as efficiency.
