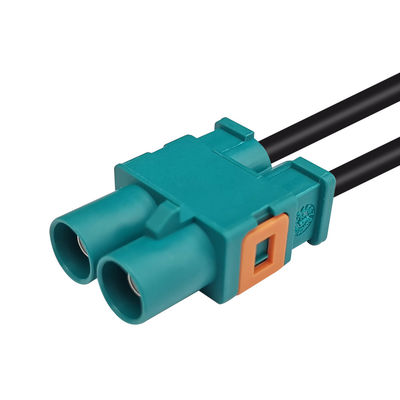

Automotive Double FAKRA Cable Connector Crimp Z Code Jack Waterblue Color

  • Automotive Double FAKRA Cable Connector Crimp Z Code Jack Waterblue Color
Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA Cable Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Dual FAKRA Crimp Code Z-Code,WaterBlue Color
Orientation Straight Application Data Transmission, Coaxial
MOQ 20 PCS Business Type OEM&ODM
High Light

Automotive FAKRA Cable Connector

,

Z Code FAKRA Cable Connector

,

Waterblue Double FAKRA Connector
Leave a Message
Product Description

Automotive Waterblue Crimp Z Code Jack Dual Fakra Cable Connector



Product description:

FAKRA automotive connectors offer performance up to 6 GHz to meet the unique mechanical and environmental requirements of the automotive industry, ensuring reliable communication inside and outside the vehicle and with each other.FAKRA connectors are embedded in plastic housings with multiple color coding for easy identification and provide a unique keying mechanism to avoid mating errors.



Main Feature:

1. Meet the strict requirements of the automotive industry.
2. Operating temperature range from -40℃ to +105℃.
3. Double locking, foolproof assembly of color and structure.
4. Easy to assemble and optimize installation space.
5. With performance up to 6GHz
6. Multiple color coding inside the plastic housing for easy identification
7. Reliable and durable
8. MOQ:20PCS.



Applications:

1.GPS antenna
2. Analog or digital radio
3. TV/video monitor
4. Accident data analysis
5. remote keyless entry
6. Navigation system



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of FAKRA connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



FAKRA

Electrical

Data

 lmpedance 50 Ω
Frequency range (depends on cable), connector, assembling, testing DC up to 6 GHz
Return loss ≥ 18 dB
Insulation resistance ≥1x 1 GΩ
Center contact resistance ≤5mΩ
Outer contact resistance ≤5mΩ
Test voltage 750V DC
Working voltage 60V DC
Contact current (depending on cable size, connector and housing) ≤4A DC
RF-leakage ≥65 dB

Mechanical

Data

 Mating cycles (standard) ≥25
Mating cycles (waterproof) ≥5
Engagernent force (single, standard) ≤25N
Engagerment force (waterproof) ≤45N
Disengagernent force ≥2N
Retention force latch ≥ 110N
Retention force primary lock ≥ 80 N
Retention force secondary lock ≥60 N

Environmental

Data

 Temperature range -40°C-+105°C



FAKRA Coding:

Automotive Double FAKRA Cable Connector Crimp Z Code Jack Waterblue Color 0

FAQ:

1.Q:Can you provide samples to me?
A:Yes,we can provide samples to you and you need to pay the shipping cost.


2.Q: Can your company accept customize?
A: Welcome OEM & ODM.



3.Q:How can l get the FAKRA connector price list?
A:Please contact us with detailed inquiry information, so we can offer the latest price for you.
