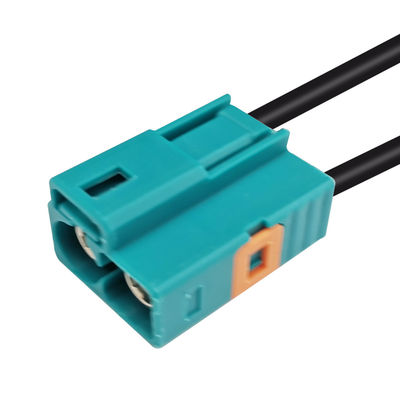

Code Z Twin FAKRA Aerial Adapter Connector WaterBlue Color For Coaxial Cable

Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA Cable Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Twin Fakra Crimp Code Z Code
Color Water Blue Application Data Transmission, Coaxial
MOQ 20 PCS Business Type OEM&ODM
Highlight

Code Z Twin FAKRA Aerial Adapter

,

WaterBlue Twin FAKRA Aerial Adapter

,

Coaxial Cable Dual FAKRA Adapter

Leave a Message
Product Description

Twin FAKRA Cable Connector Code Z WaterBlue Color For Coaxial Cable



Product description:

FAKRA RF connectors are designed for automotive applications. There are 14 different mechanical and color code identification and misalignment structures to prevent misalignment. It is widely used in industries and fields such as car navigation system, remote control system, car TV, audio equipment, antenna setup, etc.



Main Feature:

1. With performance up to 6 GHz
2. Meets the unique mechanical and environmental requirements of the automotive industry
3. Multiple color coding inside the plastic housing for easy identification
4. primary and secondary locking system with high assembly security
5. reliable and durable
6. MOQ:20PCS.



Applications:

1.Car navigation system
2.Remote control system
3.Car TV
4.Audio equipment
5.Antenna
6. Mobile communication
7. Keyless entry



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of FAKRA connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



FAKRA

Electrical

Data

lmpedance 50 Ω
Frequency range (depends on cable), connector, assembling, testing DC up to 6 GHz
Return loss ≥ 18 dB
Insulation resistance ≥1x 1 GΩ
Center contact resistance ≤5mΩ
Outer contact resistance ≤5mΩ
Test voltage 750V DC
Working voltage 60V DC
Contact current (depending on cable size, connector and housing) ≤4A DC
RF-leakage ≥65 dB

Mechanical

Data

Mating cycles (standard) ≥25
Mating cycles (waterproof) ≥5
Engagernent force (single, standard) ≤25N
Engagerment force (waterproof) ≤45N
Disengagernent force ≥2N
Retention force latch ≥ 110N
Retention force primary lock ≥ 80 N
Retention force secondary lock ≥60 N

Environmental

Data

Temperature range -40°C-+105°C



FAKRA Coding:

Code Z Twin FAKRA Aerial Adapter Connector WaterBlue Color For Coaxial Cable 0

FAQ:

1.Q:Can you provide samples to me?
A:Yes,we can provide samples to you and you need to pay the shipping cost.


2.Q: Can your company accept customize?
A: Welcome OEM & ODM.



3.Q:How can l get the FAKRA connector price list?
A:Please contact us with detailed inquiry information, so we can offer the latest price for you.
