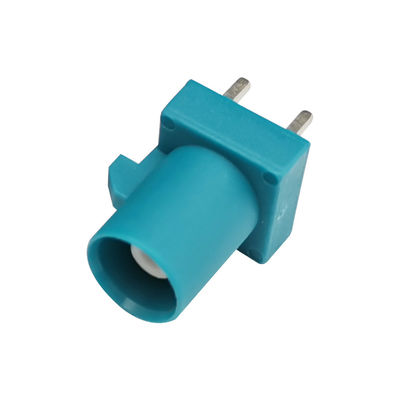

Z Code RF Cable FAKRA PCB Connector Waterblue Color Straight Plug

Place of Origin China
Brand Name LEADSIGN
Model Number FAKRA PCB Connector
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number RF Fakra Connector PCB Mount Gender Male
Orientation Straight Plug Code Z-Code,WaterBlue Color
Application Car Video, TV, Radio, Camera MOQ 20 PCS
High Light

Z Code FAKRA PCB Connector

,

Waterblue FAKRA PCB Connector

,

Straight RF FAKRA Connector

Leave a Message
Product Description

FAKRA PCB Connector Z-Code Waterblue Color Straight Plug PCB Mount For RF Cable

Description:

RF FAKRA automotive connectors meet the specific mechanical and environmental requirements of the automotive industry, ensuring reliable communication within and between vehicles.RF also offers a variety of FAKRA connectors for PCB and antenna interfaces, as well as hybrid dual coaxial/power FAKRA connectors.


Key Feature:

1. Extensive mechanical and color codes
2. Numerous connector configurations such as straight and right angle for cables, as well as edge launch and PCB designs
3. Rugged plastic housing with locking feature and audible click
4. Sealed units available
5. Available with different mounting requirements (right angle/straight/standard/low height)
6. Easy to assemble

7. MOQ:20PCS



Applications:

1. Automotive industry
2. Other industries that use high volume SMB cable assemblies
3.Global positioning satellite
4.Vehicle remote diagnostics
5.Infotainment system
6.In-vehicle AM/FM
7. In-vehicle Internet
8.Remote control


Technical Specifications:



Impedance 50Ω
Frequency DC to 6 GHz
Insulation resistance ≥1x10³ MΩ
Center contact resistance ≤ 5 mΩ
Outer contact resistance ≤ 5 mΩ
Test voltage 700 V rms
Working voltage 335 V rms
Power current ≤ 1 A DC
Mating cycles ≥25
Engagement force ≤25 N
Disengagement force ≥2N
Retention force latch ≥110 N
Coding efficiency ≥ 40 N
Temperature range -40°C to +105°C









FAKRA Coding:

Z Code RF Cable FAKRA PCB Connector Waterblue Color Straight Plug 0
