Durable Z Code HSD Connector Wire , 4 Core HSD LVDS Transmission Cable

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD LVDS Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Auto Vehicle High-Speed Transmission Code Z Code
Color Water Blue Application Automotive High Speed
Service Support OEM&ODM Order MOQ 20 PCS
High Light

Durable HSD Connector Wire

,

Z Code HSD Connector Wire

,

4 Core HSD LVDS Transmission Cable

Leave a Message
Product Description

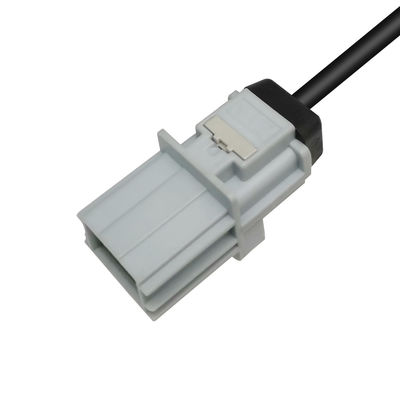

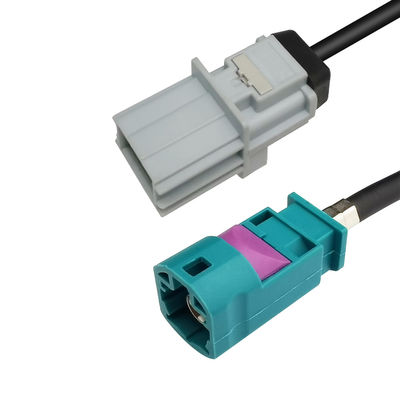

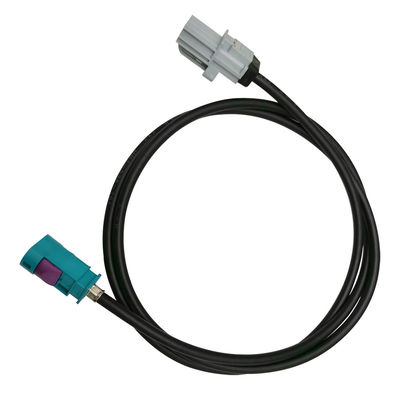

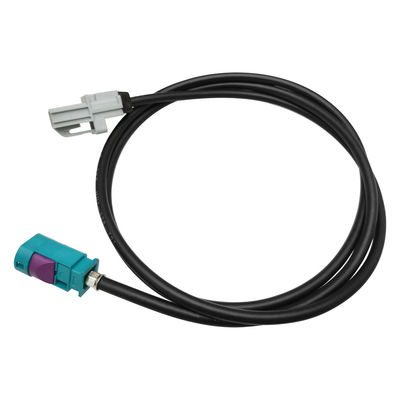

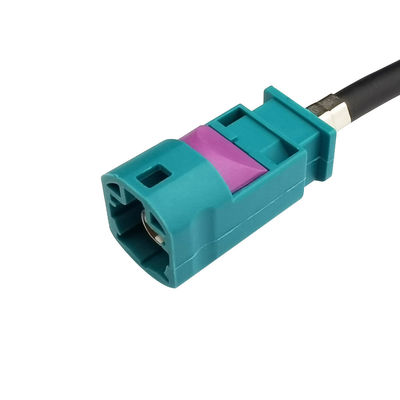

HSD Z Code 4-Core Connector To Host Connection Screen LVDS Transmission Cable

Product description:
HSD connector is a differential connector developed and designed for the automotive industry, generally used for automotive infotainment systems, camera interfaces and other high-speed data transmission functions, with fast transmission speed, signal stability, strong anti-interference ability, long service life and other characteristics.

Main Feature:

1. Fast transmission speed. Data rate up to 6Gbps
2. Stable signal
3. Strong anti-interference ability
4. Long service life
5. Fully shielded connector system for different sizes and types of wires
6. Compatible with LVDS, Ethernet and USB protocols
7. Multiple housings for space saving and fast plug-in operation
8. MOQ:20 PCS


Applications:

1.High definition TV
2.High definition camera
3. High-speed data storage devices
4. In-vehicle infotainment system
5. Advanced Driver Assistance Systems (ADAS)
6. telematics, multimedia, infotainment, GPS, navigation and video



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Characteristic impedance 100Ω
Frequency range DC-2 GHz
Operating voltage ≦100Volts rms
Insulation resistance 1000MΩ Min
Volts resistance 250Volts rms
Working current 1.5A ~ 3A DCdepending on cable type
Contact resistance Inner conductor: 10mΩ Max;
Outer conductor: 7.5mΩ Max
Insertion force 30N Max
Pull-out force 5N Min
Snap Retention Force 110 Min
Anti-misinsertion efficiency 80 Min



HSD Coding:

BMW HSD LVDS Cable Adapter HSD 4-Core Z Code Connector Cable 0



FAQ:

1.Q: How can I get the cable price list?

A: Please contact us with detailed inquiry information, so we can offer the latest price for you.



2.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.


3.Q: How can I get a sample to check the quality of your products?
A: You can contact our customer service, you only need to pay the fee, our sample is free of charge.



4.Q: What’s your payment term?
A: We accept L/C,T/T and Western Union.
