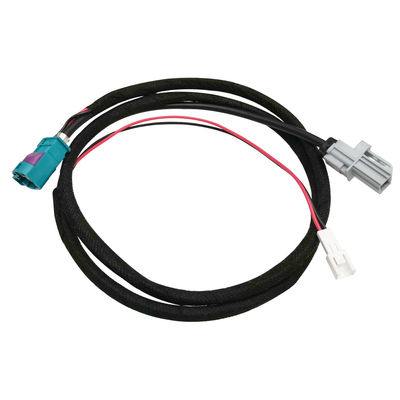

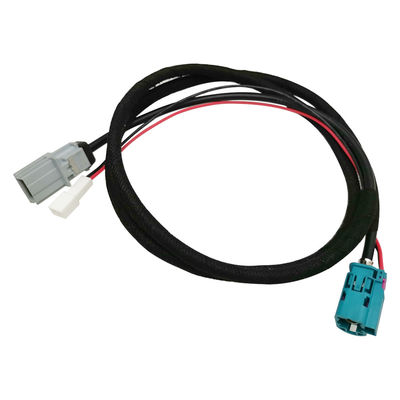

Automotive HSD LVDS Cable 4+2 Z Code Connector To 6 PIN HD Transmission Cable

  • Automotive HSD LVDS Cable 4+2 Z Code Connector To 6 PIN HD Transmission Cable
  • Automotive HSD LVDS Cable 4+2 Z Code Connector To 6 PIN HD Transmission Cable
  • Automotive HSD LVDS Cable 4+2 Z Code Connector To 6 PIN HD Transmission Cable
  • Automotive HSD LVDS Cable 4+2 Z Code Connector To 6 PIN HD Transmission Cable
  • Automotive HSD LVDS Cable 4+2 Z Code Connector To 6 PIN HD Transmission Cable
Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD LVDS Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Auto Vehicle High-Speed Transmission Code Z Code
Type Coaxial Application Automotive, Vehicle Infotainment Modules, Cameras
Service Support OEM&ODM Order MOQ 20 PCS
High Light

HSD LVDS Cable Z Code

,

6 PIN HSD LVDS Cable

,

HD Automotive HSD LVDS Cable
Leave a Message
Product Description

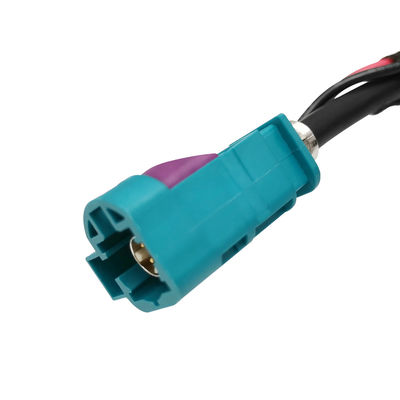

HSD 4+2 Z Code Connector Instrument LVDS Extension Harness For Buick



Product description:

HSD connectors are used for high speed data transfer and are generally used for high speed data transfer functions such as in-car infotainment systems and camera interfaces, single-wire, four-conductor. Connection solutions for automotive infotainment system modules, cameras, consumer ports and display units.



Main Feature:

1. Fully shielded connector system for different wire sizes and types
2. Compatible with LVDS, Ethernet and USB protocols
3. Super high interference resistant signal transmission
4. Multiple housings for space saving and fast insertion operation
5. Data rates up to 6 Gbps
6. Available in multiple versions, including a version with two power pins
7. Meets the demanding requirements of the automotive industry
8. MOQ:20 PCS



Applications:

1.High-speed data transmission
2.In-vehicle infotainment system
3.LVDS, IEEE 1394, Ethernet
4.Advanced Driver Assistance System (ADAS)
5. Telematics, multimedia, infotainment, GPS, navigation and camera



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Characteristic impedance 100Ω
Frequency range DC-2 GHz
Operating voltage ≦100Volts rms
Insulation resistance 1000MΩ Min
Volts resistance 250Volts rms
Working current 1.5A ~ 3A DCdepending on cable type
Contact resistance Inner conductor: 10mΩ Max;
Outer conductor: 7.5mΩ Max
Insertion force 30N Max
Pull-out force 5N Min
Snap Retention Force 110 Min
Anti-misinsertion efficiency 80 Min



HSD Coding:

BMW HSD LVDS Cable Adapter HSD 4-Core Z Code Connector Cable 0



FAQ:

1.Q: How can I get the cable price list?

A: Please contact us with detailed inquiry information, so we can offer the latest price for you.



2.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.


3.Q: How can I get a sample to check the quality of your products?
A: You can contact our customer service, you only need to pay the fee, our sample is free of charge.
