Coaxial 4+2 Z Code HSD LVDS Extension Harness For Buick Automotive

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD LVDS Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Auto Vehicle High-Speed Transmission Model Number Wire Harness Cable Assembly
Type Coaxial Application Automotive
Service Support OEM&ODM Order MOQ 20 PCS
High Light

Coaxial HSD LVDS Extension Harness

,

Z Code HSD LVDS Extension Harness

,

Automotive HSD LVDS Extension Wire

Leave a Message
Product Description

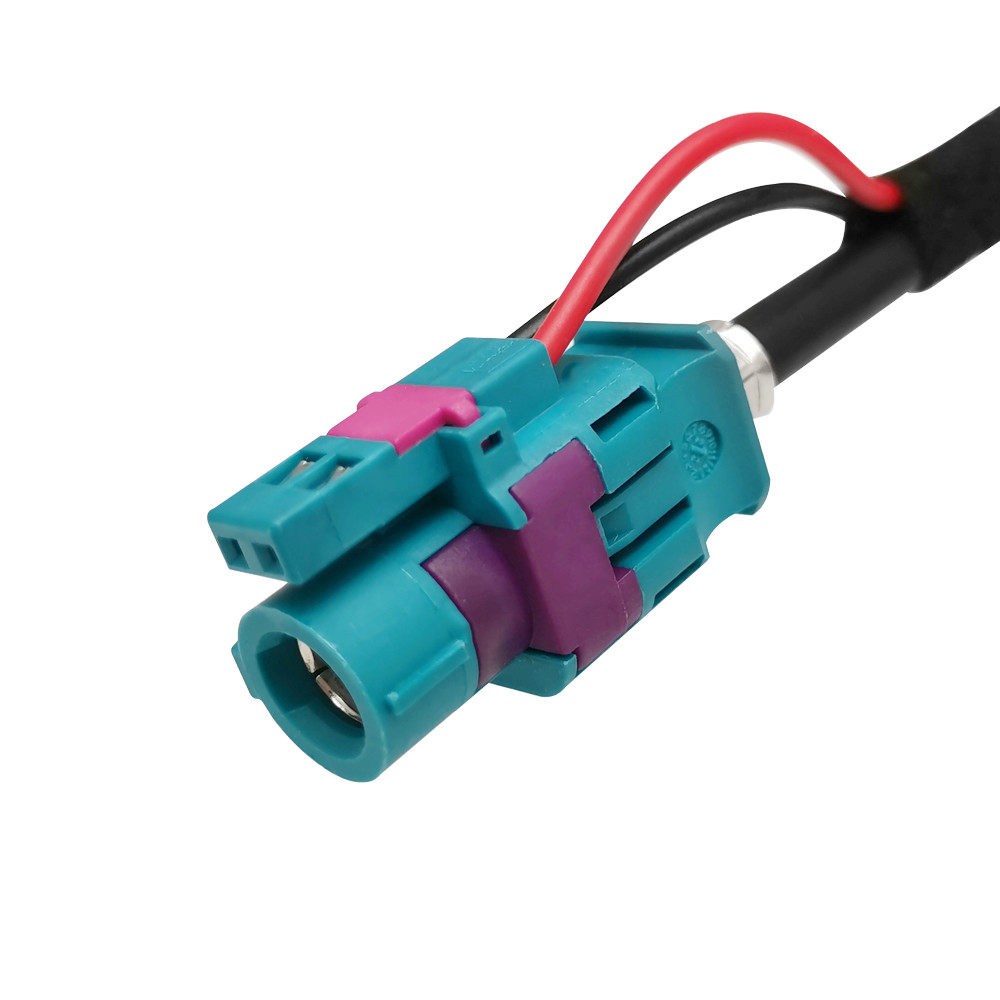

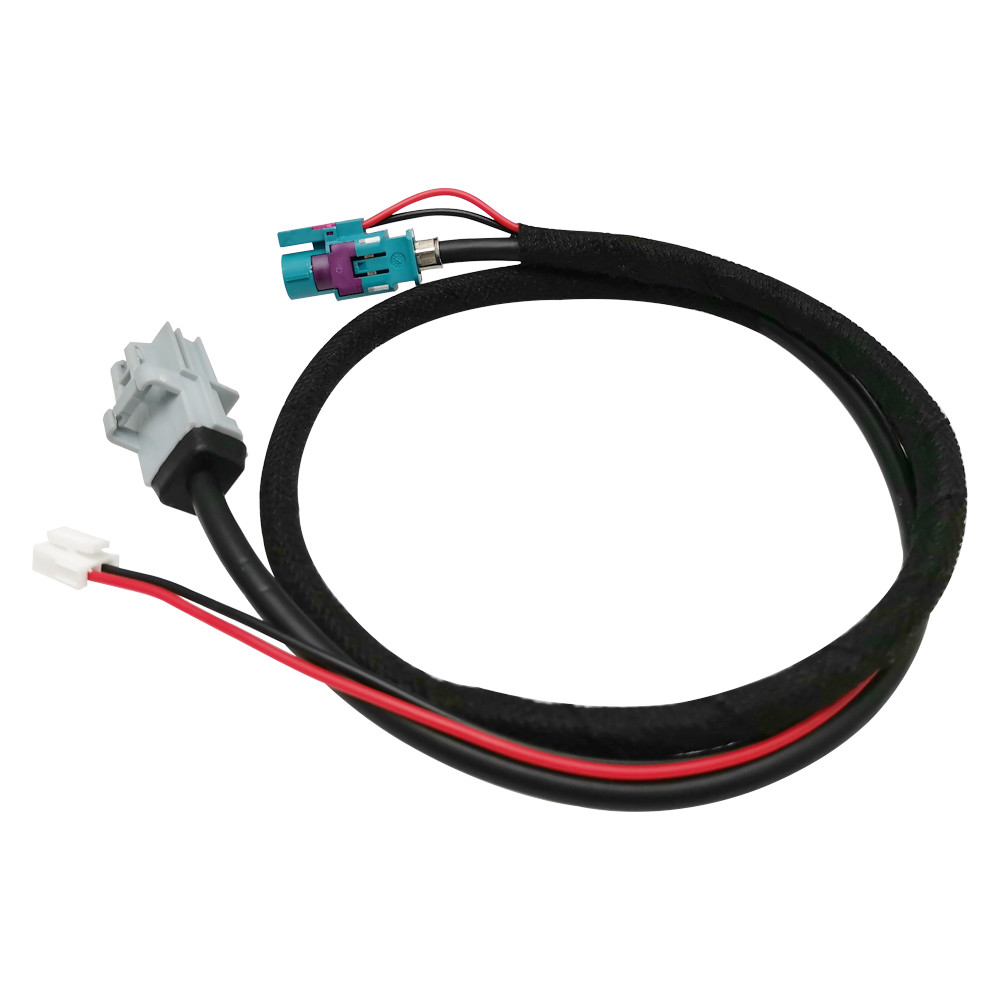

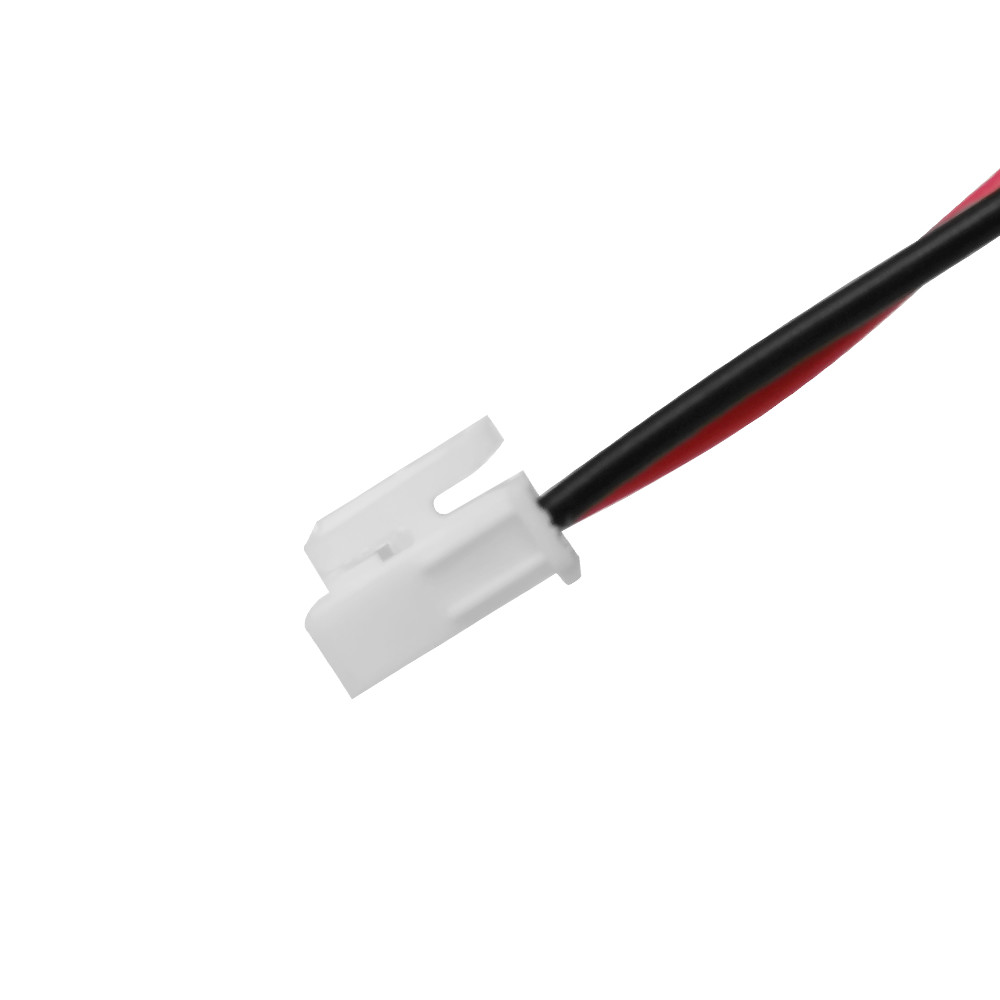

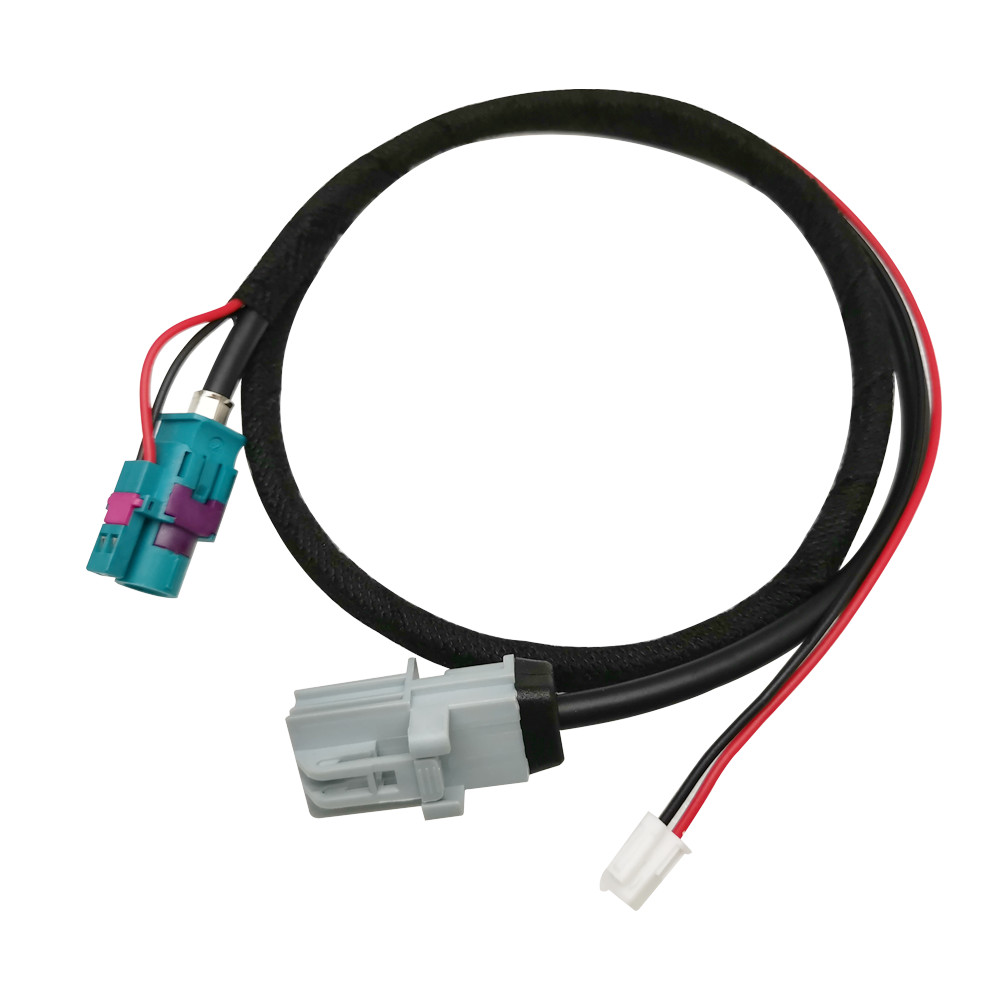

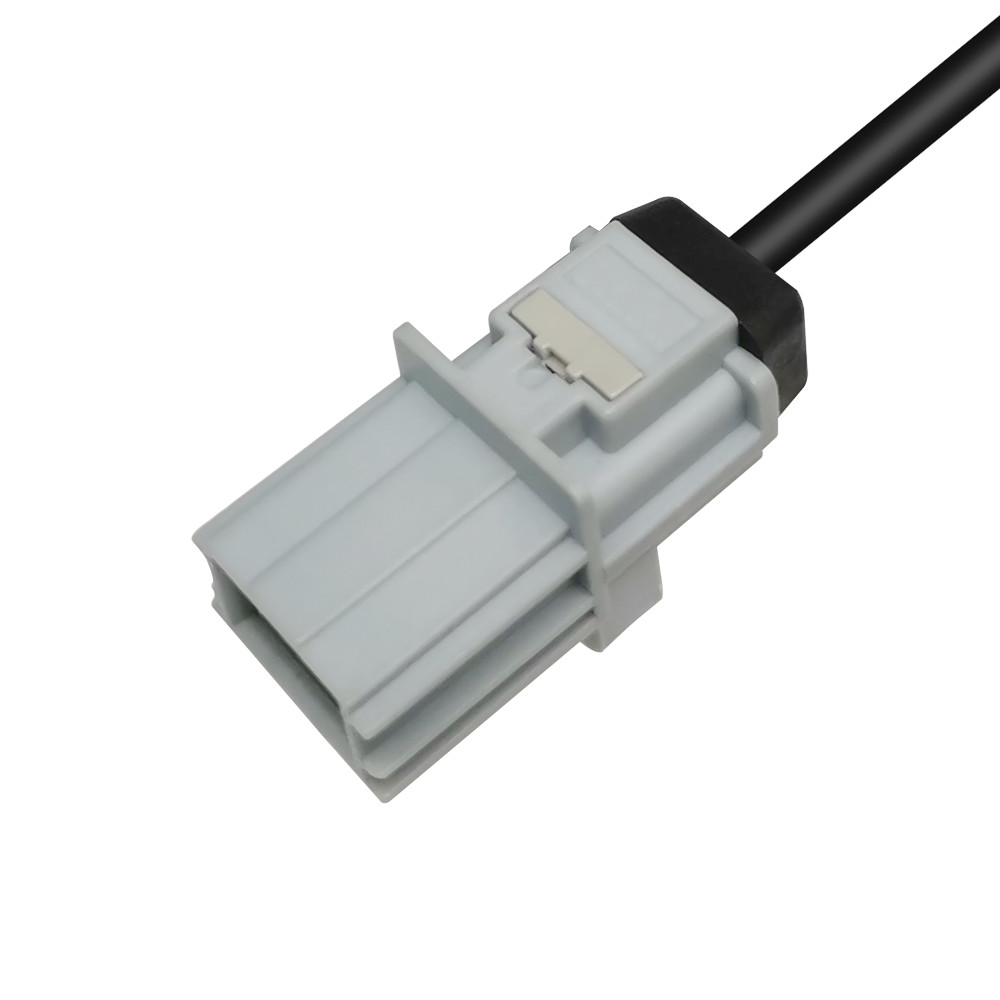

HSD 4+2 Z Code Connector Instrument LVDS Extension Harness For Buick



Product description:

HSD connectors are widely used in the field of automotive electronic entertainment systems, and are important components belonging to the signal transmission between multimedia devices in the car. Such as low-voltage differential signal cameras, USB connections or IEEE 1394 applications.



Main Feature:

1. Super high anti-interference signal transmission
2. Multiple housings for space saving and fast insertion operation
3. Data rate up to 6Gbps
4. Capable of high-speed data transmission, such as USB, LVDS and Ethernet
5. Automotive-compliant color coding and key-lock efficiency
6. Available in multiple versions, including a version with two power pins
7. Meets the demanding requirements of the automotive industry
8. MOQ:20 PCS



Applications:

1..Digital Symmetric Network
2.LVDS,IEEE 1394 ,Ethernet
3.USB 1.0, USB 2.0, USB 3.0
4.Advanced Driver Assistance Systems (ADAS)
5.Telematics, multimedia, infotainment, GPS, navigation, and cameras
6.Body control, safety, security, and comfort



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Characteristic impedance 100Ω
Frequency range DC-2 GHz
Operating voltage ≦100Volts rms
Insulation resistance 1000MΩ Min
Volts resistance 250Volts rms
Working current 1.5A ~ 3A DCdepending on cable type
Contact resistance Inner conductor: 10mΩ Max;
Outer conductor: 7.5mΩ Max
Insertion force 30N Max
Pull-out force 5N Min
Snap Retention Force 110 Min
Anti-misinsertion efficiency 80 Min



HSD Coding:

BMW HSD LVDS Cable Adapter HSD 4-Core Z Code Connector Cable 0



FAQ:

1.Q: How can I get the cable price list?

A: Please contact us with detailed inquiry information, so we can offer the latest price for you.



2.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
