Right Angle 4 Pin Mini FAKRA Connector PCB Mount Multi Color

Place of Origin CHINA
Model Number Mini Fakra PCB Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model Number Mini Fakra PCB Connector Type High Speed Connector
Impedance 50Ω Keyword Mini Fakra
Orientation Right Angle Application Automotive,GPS Antennas,TV/video Displays
High Light

Right Angle Mini FAKRA Connector


4 Pin Mini FAKRA Connector


PCB Mount FAKRA 4 Pin Connector

Leave a Message
Product Description

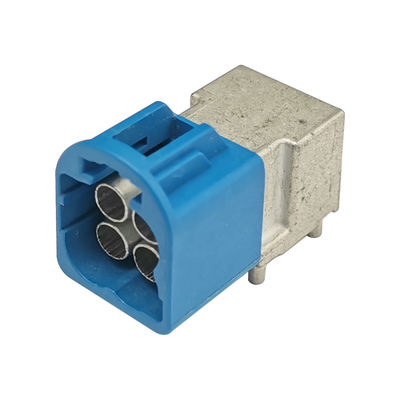

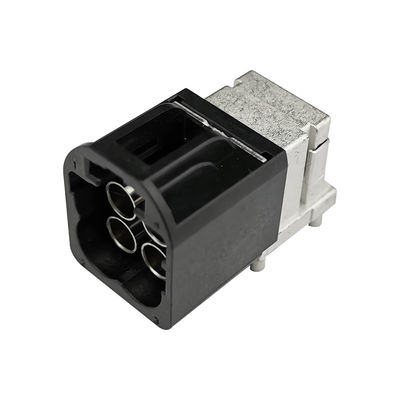

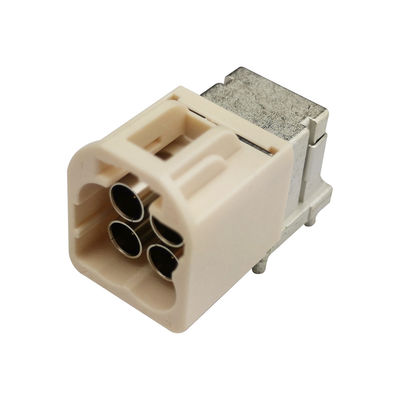

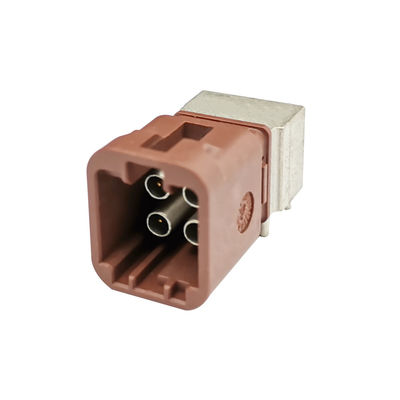

Through Hole Right Angle 4Pin MINI FAKRA PCB Mount Connector


Product description:

Mini-FAKRA is a high performance interface that does not take up much space. It requires up to 80% less installation space compared to conventional FAKRA products. Typical applications include 360° surround view cameras, self-driving cars, GPS navigation, 3D dashboards, etc.


Main Feature:

1. Small package size, ideal for use in small spaces
2. Supports data rates up to 20Gbps
3. Low insertion force required
4. Shock resistant
5. Color coded housing
6. Mechanical keying option to prevent mis-insertion


1.360° Surround View Camera
2.Self-driving cars
3.Advanced Assisted Driving Systems (ADAS)
4.GPS navigation
5.3D dashboard
6.High bandwidth infotainment system
7.Remote start and vehicle control
8.Telematics communication


Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.


Technical Specifications:


Body Material Brass / Phosphor Bronze / Zinc Diecast
Body Finish Gold / Matte Tin / Nickel / Tin
Contact Material Beryllium Copper / Brass / Phosphor Bronze
Contact Finish Gold
Insulator Material LCP / PBT / PTFE
Impedance 50Ω
Frequency Range DC - 6 GHz
Voltage Rating 335 Volts RMS Continuous
Dielectric Withstanding Voltage 800 VRMS Max
Insulation Resistance 1000 MΩ Min
Contact Current (dependant on cable size) Contact Current (dependant on cable size)
Power Handling 95 W Max @ 1 GHz @ 25ºC
Temperature Range −40°C to +105°C
Mating Cycles 100 Min
Coupling Mechanism Push-On
