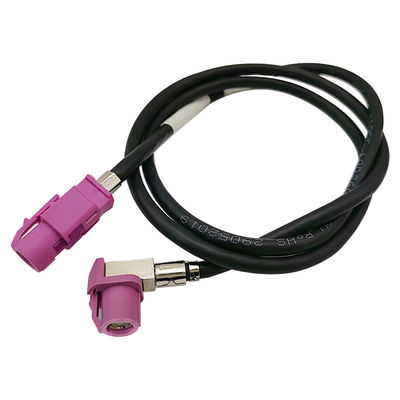

GPS Bluetooth HSD Pigtail Coaxial Cable , 4 Pin LVDS FAKRA Coaxial Cable Assemblies

Place of Origin CHINA
Model Number HSD Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Universal Fakra HSD Connector Cable Orientation Straight / Right Angle
Type RF Cable Cable Length Customized
Temperature Range −40°C To +105°C Application Automotive Electronics
High Light

GPS HSD Pigtail Coaxial Cable


Bluetooth HSD Pigtail Coaxial Cable


LVDS FAKRA Coaxial Cable Assemblies

Leave a Message
Product Description

HSD 4Pin LVDS Data Pigtail Coaxial Cable For Gps Antenna Video Bluetooth


Product description:

HSD provides two differential signal pairs for developing interfaces for the automotive industry, so it can send data based on low-voltage differential signals (LVDS) not only for a wide range of applications such as automotive infotainment modules, cameras, flat-screen displays, but also for USB 2.0/ 3.0, Ethernet. With high shielding efficiency.


Main Feature:

1. High-performance digital system for low-voltage differential signals
2. Protection against crosstalk and interference from external signal sources
3. High holding power
4. Cable side designed for crimp connections
5. USCAR-2 compliant design


1. Advanced Driver Assistance Systems (ADAS)
2. Telematics, multimedia, infotainment, GPS, navigation and cameras
3. Body control, safety, security and comfort


Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.


Technical Specifications:


Characteristic impedance 100Ω
Operating voltage ≤100Volts rms
Insulation resistance 100MΩ Min
Withstand voltage 250Volts rms
Internal conductive contact resistance 10mΩ Max
External conductive contact resistance 7.5mΩ Max
Endurance 25Cycles Min
Insertion force 30N Max
Pull-out force 5N Min
Snap Retention Force 110 Min
Anti-misinsertion efficiency 80 Min


Our Service:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.
