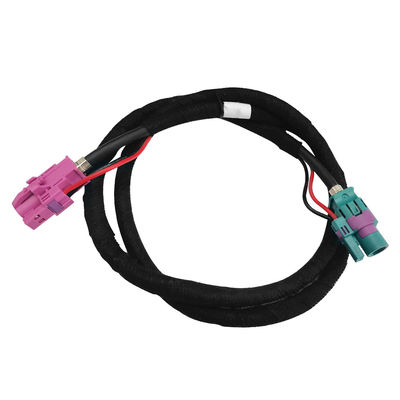

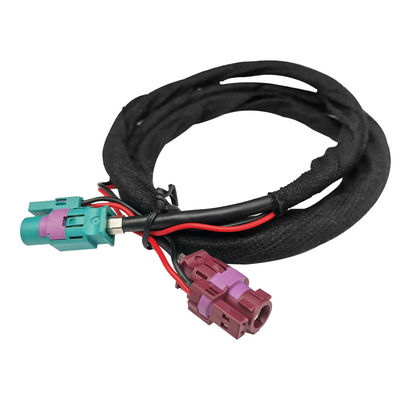

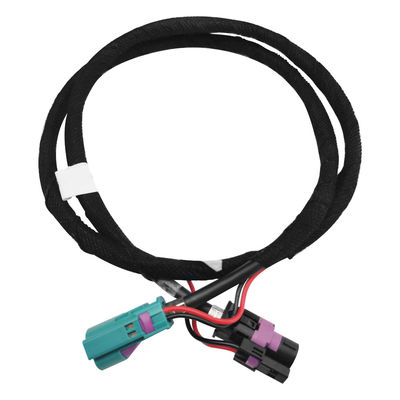

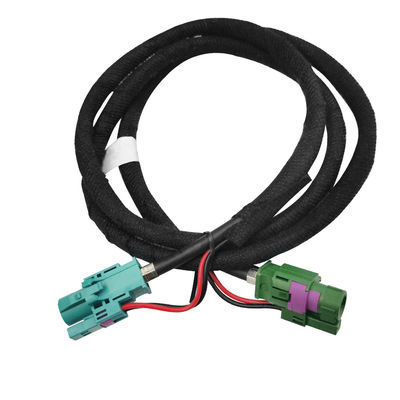

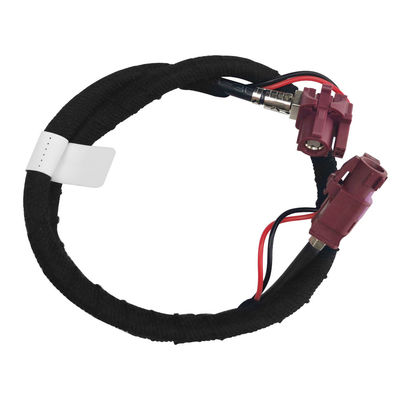

LVDS Coaxial HSD Cable Assembly 4+2 Pin Connector For Converter Extension

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD LVDS Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Keywords HSD LVDS Video Cable Model Number HSD 6 PIN Connector And Cable
Gender Male / Female Orientation Straight / Right Angle
Application Automotive, Vehicle Infotainment Modules, Cameras Service OEM & ODM Is Accepted
High Light

Coaxial HSD Cable Assembly

,

4+2 Pin HSD Cable Assembly

,

Converter LVDS Coaxial Cable

Leave a Message
Product Description

HSD 4+2 Pin Connector LVDS Coaxial Converter Extension Cable



Product description:

HSD series connectors are available for LVDS camera, USB and IEEE 1394 applications.HSD+2, +4, +8 (on request) power pin connectors – further variants with additional pins (MQS contacts) for power supply purposes.



Main Feature:

1. Capable of high-speed data transfer, such as USB, LVDS and Ethernet
2. Color coding and keylock efficiency in accordance with automotive standards
3. Crimp connection for cable-side connectors
4. Anti-jiggle design prevents contact pin damage
5. Available in multiple versions, including a version with two power pins



Applications:

1. Automotive electronics and displays
2.Digital infotainment
3.Digital Symmetric Network
4.LVDS
5.IEEE 1394 (FireWire)
6.Ethernet
7.USB 1.0, USB 2.0, USB 3.0
8.Telecom industry



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of HSD connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



HSD
Impedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Working Voltage 60 V rms
Temperature range -40°C to +105°C
Signal contact resistance ≤ 10 mΩ
Outer contact resistance ≤7.5 mΩ
test voltage 250 V rms
Coupling attenuation

≥75 dB,DC to 1 GHz

≥ 65 dB,1 GHz to 2 GHz
