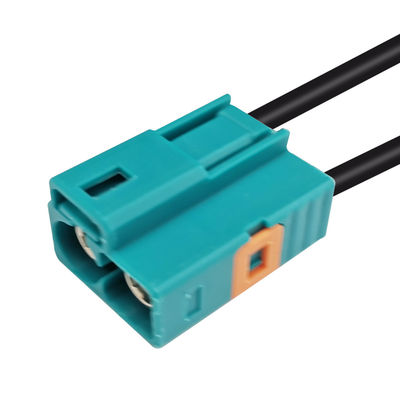

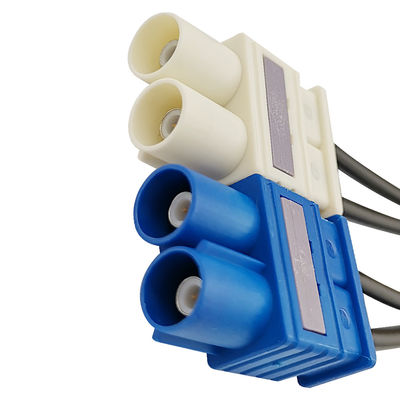

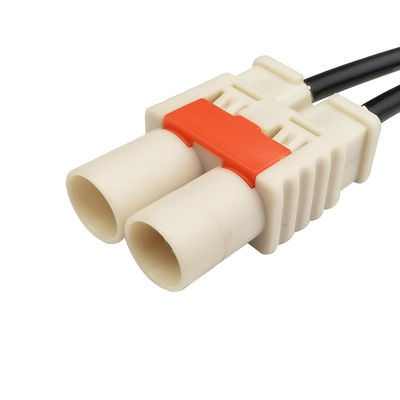

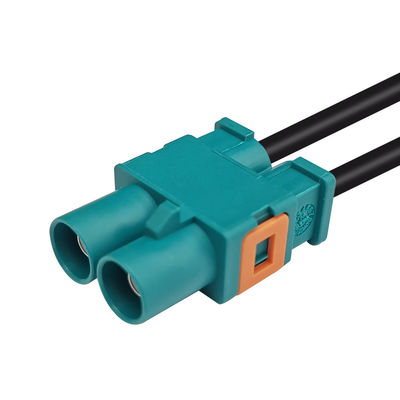

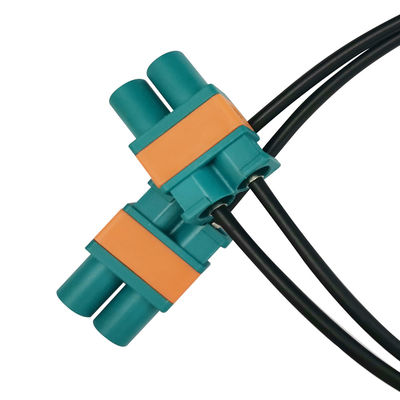

GPS GSM Double FAKRA Connector , RG316 RG174 Cable Dual FAKRA Car Antenna Adapter

Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA Cable Connector
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Universal Dual Plug Crimp Connector Product Keywords Fakra Connector Assembly
Gender Male/Female Pins 2P
Connector Body Style Straight Application Automotive, Automotive,GPS Antennas,TV/video Displays
High Light

GPS Double FAKRA Connector

,

GSM Double FAKRA Connector

,

RG174 Dual FAKRA Car Antenna Adapter

Leave a Message
Product Description

Dual Port Fakra Connector For RG316 RG174 Cable Automotive GPS GSM Antenna



Product description:
Fakra connectors are widely used components in automobiles today for: navigation systems, remote control, car phone, car TV, audio equipment, antenna and other functions.



Main Feature:
1.Cable connectors (straight, right angle)
2.Fulfill the tough requirements of the automotive industry
3.No misuse due to secure coding system
4.Reliable and durable
5.Multiple housings for space savings and for quick plug-in operations
6.14 different mechanical and color key codes
7.Robust plastic housing with locking feature and audible clicking noise


Applications:

1.Automotive
2.Global Positioning Satellite
3.Satellite Radio
4.Bluetooth
5.Remote Vehicle Diagnostic
6.Infotainment Systems


Offer Custom:
We accept OEM and ODM orders. If you need a different installation, please let us know the type of FAKRA connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.


Technical Specifications:



Impedance 50 Ohm
Frequency Range DC - 6 GHz
Voltage Rating 335 Volts RMS Continuous
Dielectric Withstanding Voltage 800 VRMS Max
Insulation Resistance 1000 MΩ Min
Center Contact Resistance 24 mΩ Max
Temperature Range −40°C to +105°C
Mating Cycles 100 Min
Coupling Mechanism Push-On



Our Service:
1.Accept OEM and ODM orders.
2.Samples are free of charge, only the customer has to pay the courier fee.
3.Support multiple logistics methods.
4.Fast delivery time and first-class service.
