Practical FAKRA HSD Cable Z Code Male To E Code Female For Automotive

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Automotive Power Connector Cable Orientation Straight
Coupling Mechanism Push-On Impedance 100Ω
Temperature Range −40°C To +105°C Application Advanced Driving Assistant System (ADAS)
High Light

Practical FAKRA HSD Cable

,

Male FAKRA HSD Cable

,

Automotive 4 Pin LVDS Cable

Leave a Message
Product Description

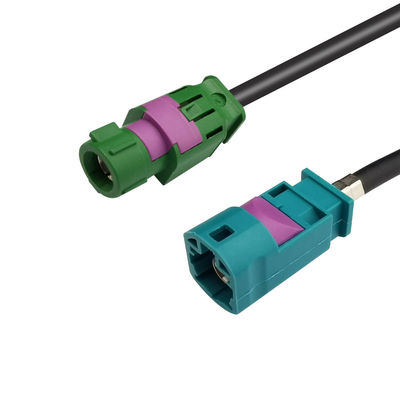

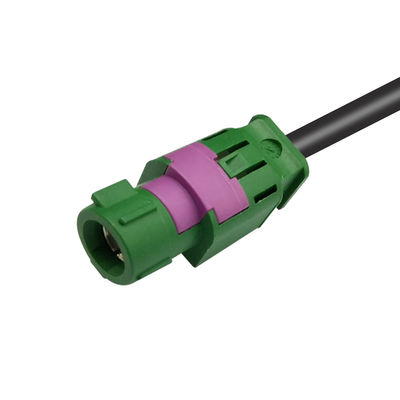

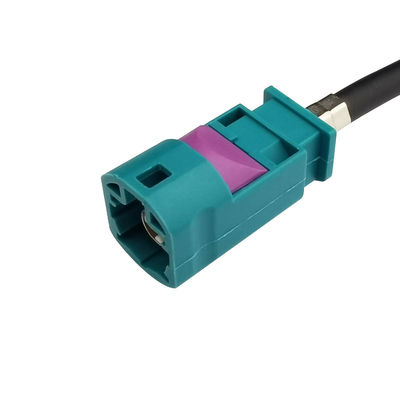

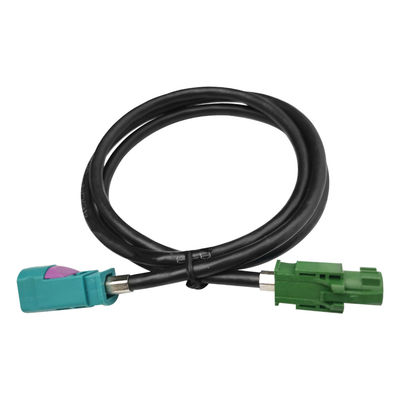

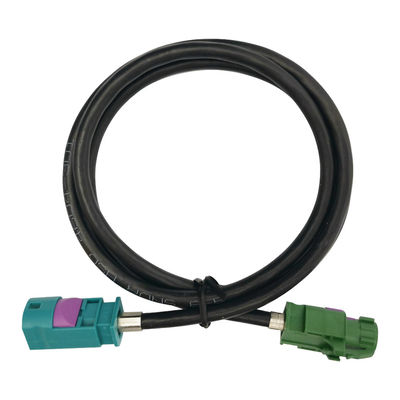

HSD Cable Universal Automotive Z Code Male To E Code Female LVDS 4Pin Cable



Product description:

LEADSIGN HSD series connectors, based on the 4Pin principle, are symmetrical and control the impedance of the interconnection system High Speed Data transmission at 100Ω.It has good shielding and signal stability, a fast transmission rate, high-cost performance, a small size, etc.HSD is designed for the automotive market and can be used in applications such as LVDS cameras, USB and IEEE1394 to meet a wide range of needs.



Main Feature:

1. High performance for low-voltage differential signals
2. Highly shielded data system
3. Characteristic impedance is 100Ω
4. 14 different mechanical and color codes.
5. Compatible with LVDS, Ethernet, and USB protocols.
6. Full range of connectors for unsealed and sealed applications.
7.Reliable shield construction and materials.



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Characteristic impedance 100Ω
Operating voltage ≤100Volts rms
Insulation resistance 100MΩ Min
Withstand voltage 250Volts rms
Internal conductive contact resistance 10mΩ Max
External conductive contact resistance 7.5mΩ Max
Endurance 25Cycles Min
Insertion force 30N Max
Pull-out force 5N Min
Snap Retention Force 110 Min
Anti-misinsertion efficiency 80 Min



Our Service:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.
