Camera HSD LVDS Cable 4 PIN Code A Female Extension Practical

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD LVDS Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type RF Cable/HSD Cable Item Auto Vehicle High-Speed Transmission
Model Number Wire Harness Cable Assembly Orientation Straight
Impedance 100Ω Application Automotive
High Light

Camera HSD LVDS Cable

,

Code A HSD LVDS Cable

,

Practical HSD Female Extension Cable

Leave a Message
Product Description

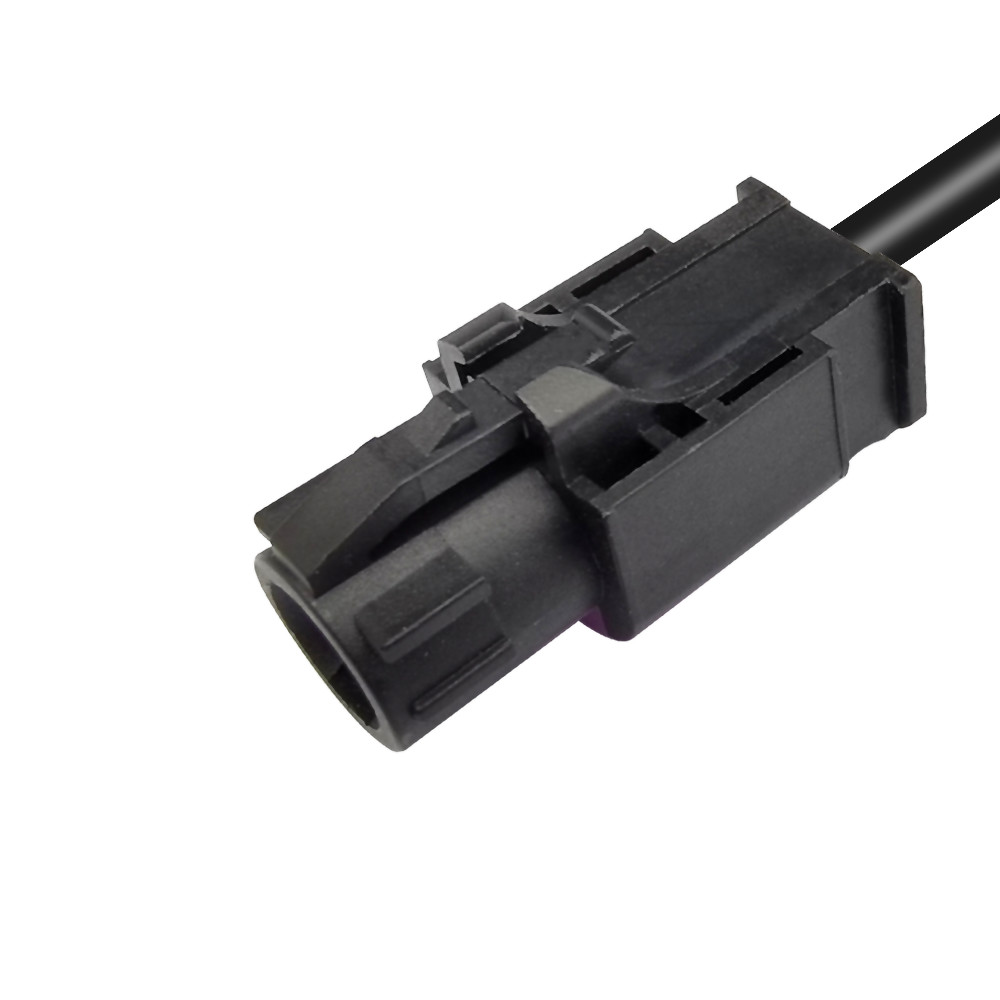

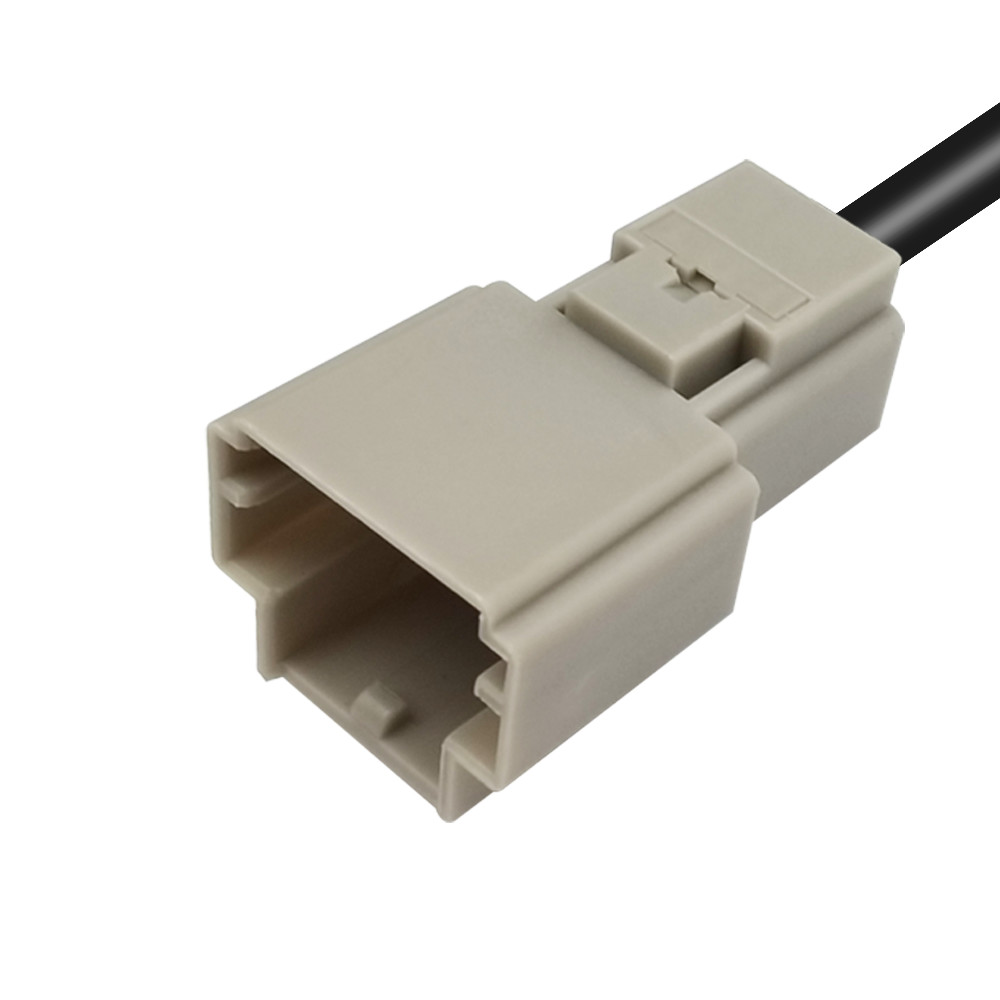

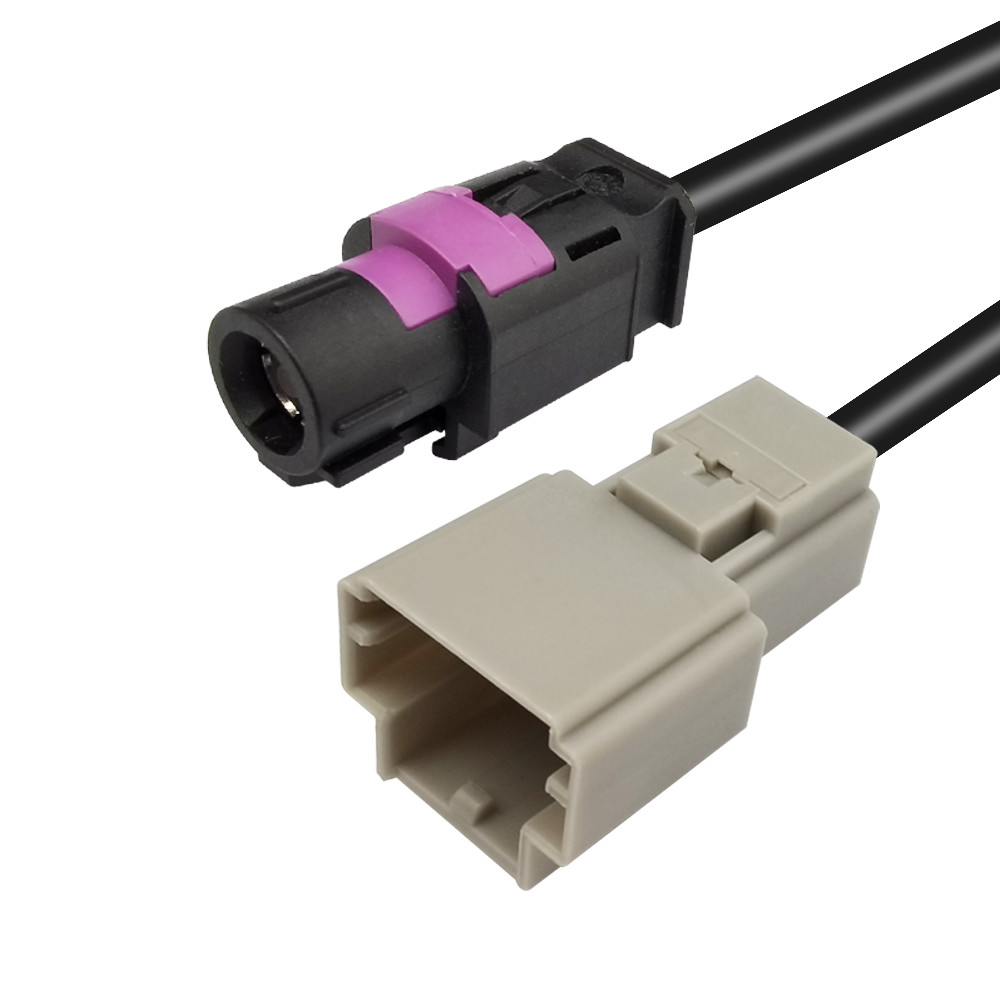

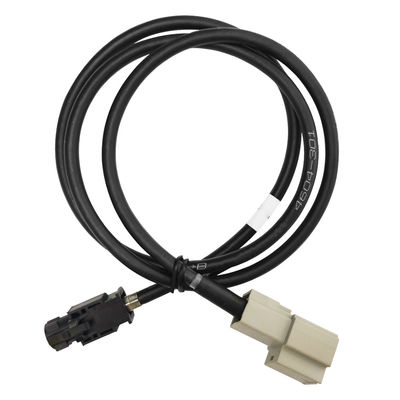

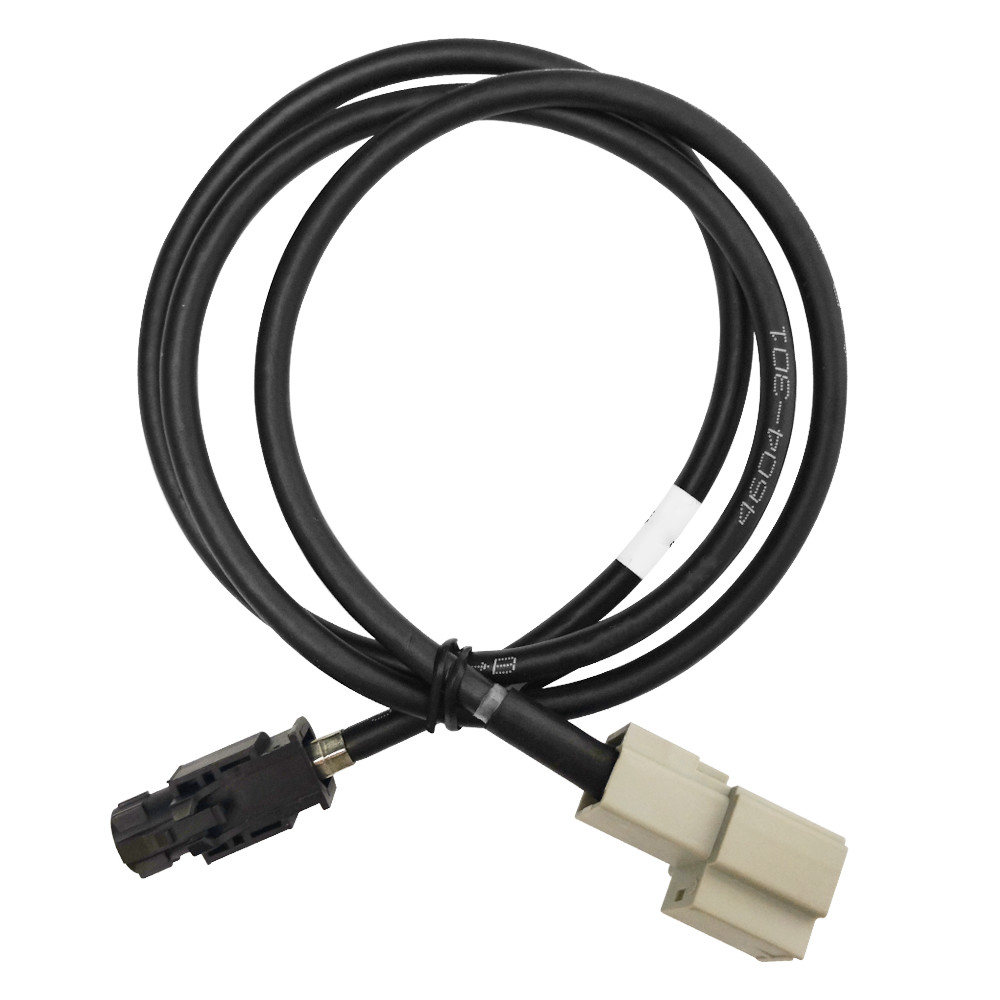

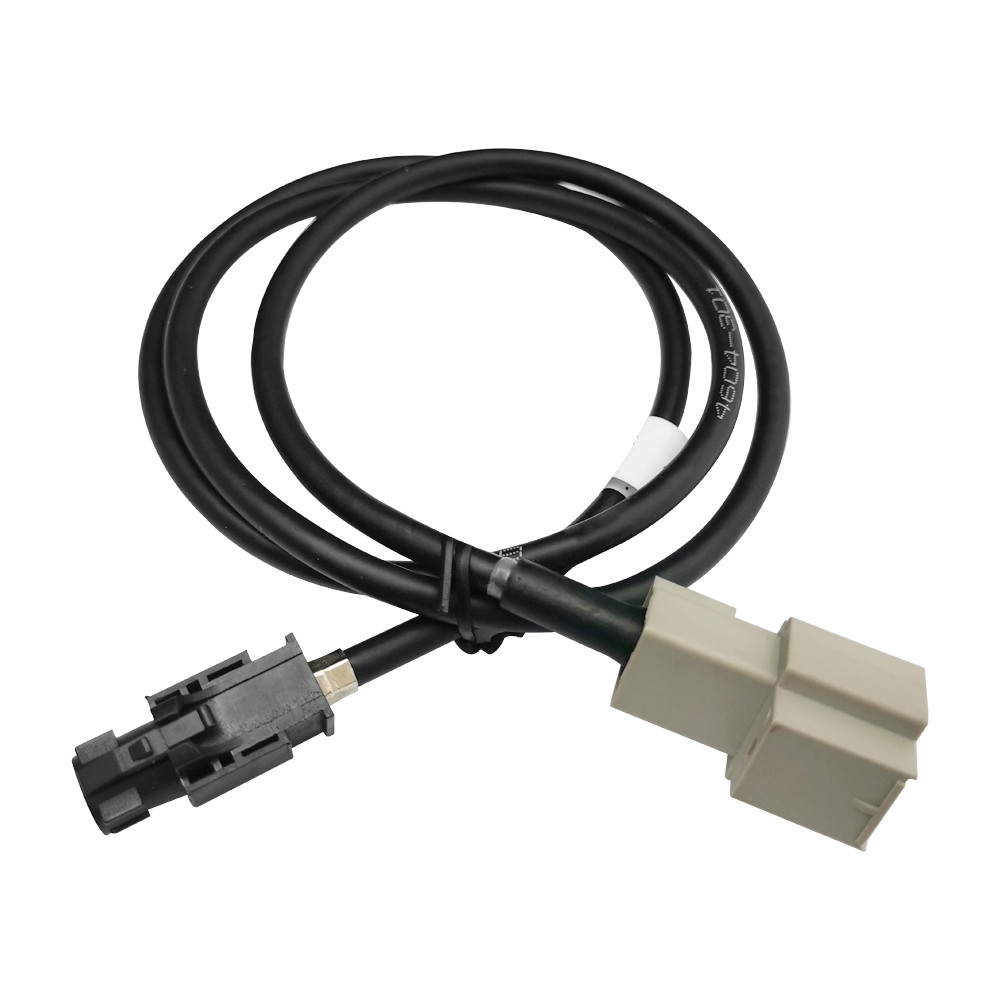

Automotive HSD 4PIN A Code Female Extension Cable For LVDS Camera



Product description:

LEADSIGN offers advanced specialized automotive connectors and wire and cable to meet the demand for high-speed data transmission connections in vehicles.HSD connectors are widely used in the field of automotive electronic entertainment system, which is an important component belonging to the signal transmission between in-car multimedia devices.



Main Feature:

1. Ultra-high anti-interference signal transmission

2. High cost performance, controllable quality assurance, the main parts to the assembly are completed internally
3.Prevents misuse due to secure coding system
4.Primary and secondary locking systems lead to high assembling security

5.Reliable and durable

6.Multiple housings for space savings and quick plug-in operations

7.Data rate up to 6 Gbps

8.Fulfill the demanding requirements of the automotive industry



Applications:

1.Wifi/Bluetooth/4G signal
2.Antenna Connections
3.Remote vehicle Diagnostic
4.Remote Control Keyless Entry
5.Engine Management Systems
6.Air Pressure Control
7.Camera systems
8.AM/FM Equipment
9.GPS



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



HSD
Characteristic impedance 100Ω
Frequency range DC-2 GHz
Operating voltage ≦100Volts rms
Insulation resistance 1000MΩ Min
Volts resistance 250Volts rms
Working current 1.5A ~ 3A DCdepending on cable type
Contact resistance Inner conductor: 10mΩ Max;
Outer conductor: 7.5mΩ Max
Insertion force 30N Max
Pull-out force 5N Min
Snap Retention Force 110 Min
Anti-misinsertion efficiency 80 Min
