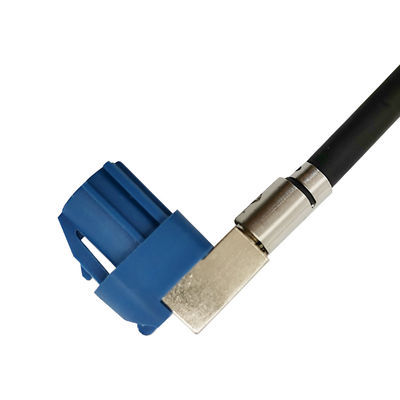

Right Angle HSD LVDS Cable Wiring Harness Code C To K Female Connector

Place of Origin CHINA
Model Number HSD LVDS Cable
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type HSD 4 PIN Connector And Cable Application Telematics, Multimedia, Infotainment, GPS, Navigation
Product Keywords HSD LVDS Cable Orientation Straight / Right Angle
Impedance 100Ω Temperature Range -40° ~ +105°C
High Light

Right Angle HSD LVDS Cable


HSD LVDS Cable Code C


Female HSD LVDS Wiring Harness

Leave a Message
Product Description

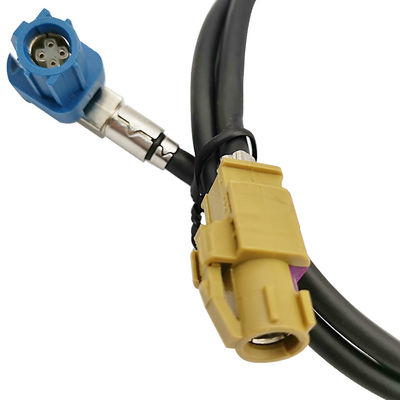

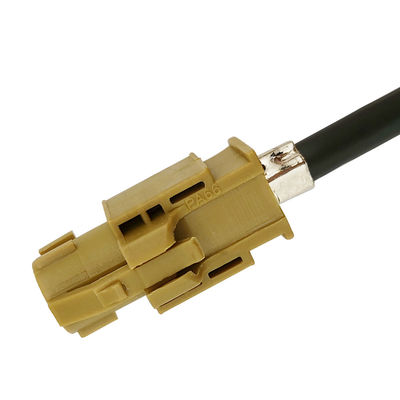

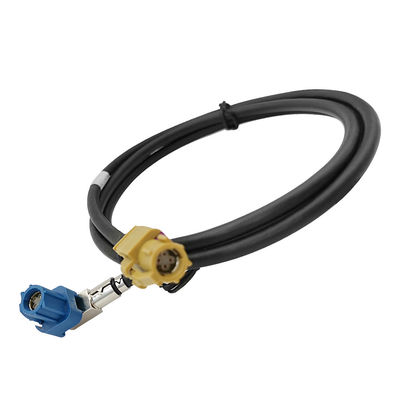

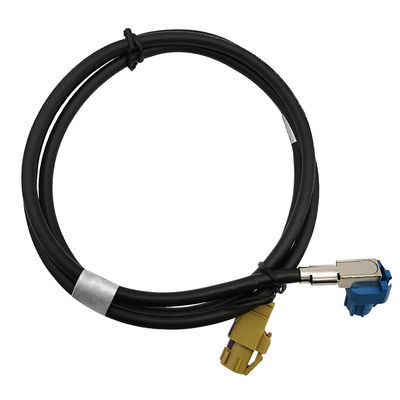

Automotive HSD LVDS Wiring Harness Cable Code C To K Female Connector


Product description:

LEADSIGN offers advanced specialized automotive connectors and wire and cable to meet the demand for high-speed data transmission connections in vehicles.HSD LVDS cables provide connectivity solutions for automotive infotainment modules, cameras, global positioning satellites, display devices and remote vehicles.


Main Feature:

1.It is compatible to USCAR requirements
2.Suitable for sealed applications
3.HSD product can be used in combination with a variety of protocols:
4.1 & 4 Channel Low Voltage Differential Signaling (LVDS)
5.Gigabit Video Interface (GVIF)
7.IEEE 1394
8.Ethernet protocols



1.Traditional infotainment
2.Dashboard/touch screen
3.Hd screen
5.USB connection
6.Dual-band WIFI
7.Wraparound camera


Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of HSD connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.


Technical Specifications:


Temperature Range -40° ~ +105°C
Characteristic Impedance 100Ω
Frequency Range DC~6GHz
Operating Voltage 100V rms
Withstand Voltage 250 V rms
Core Connection Resistance ≤ 10 mΩ
Insulation Resistance ≥ 1000 MΩ
Intervention loss ≤ 0.1 dB, DC to 2 GHz
Voltage ≥ 20 dB, DC to 1 GHz ≥ 17 dB, 1 GHz to 2 GHz




1.Q: Can your company accept customize?
A: Welcome OEM & ODM.


2.Q:Can you provide samples to me?

A:Yes,we can provide samples to you and you need to pay the shipping cost.


3.Q: How can I get the cable price list?

A: Please contact us with detailed inquiry information, so we can offer the latest price for you.
