Code C To K Female HSD LVDS Cable 4 PIN For Automotive Extension

Place of Origin CHINA
Model Number HSD LVDS Cable
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Type HSD 4 PIN Connector And Cable Application Telematics, Multimedia, Infotainment, GPS, Navigation
Impedance 100Ω Gender Female
Temperature Range -40° ~ +105°C Frequency DC~6GHz
High Light

Code C Female HSD LVDS Cable


4 PIN Female HSD LVDS Cable


Automotive Extension HSD Cable

Leave a Message
Product Description

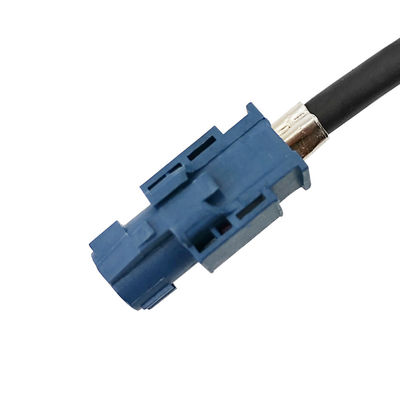

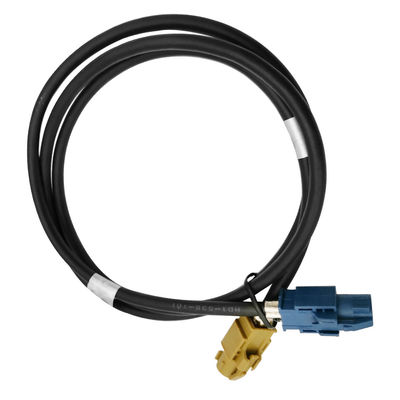

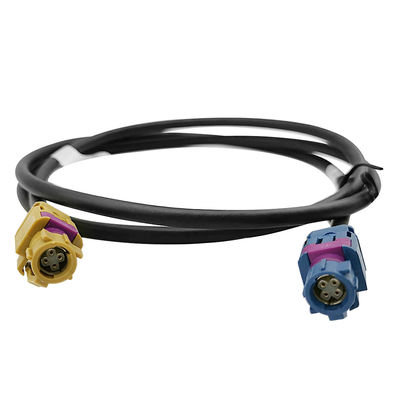

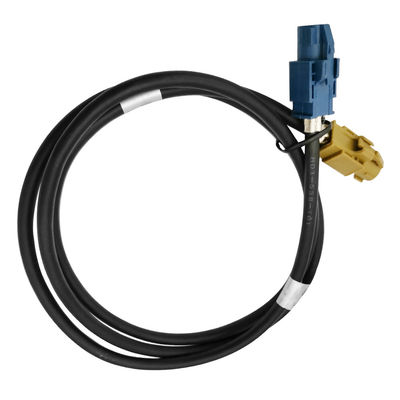

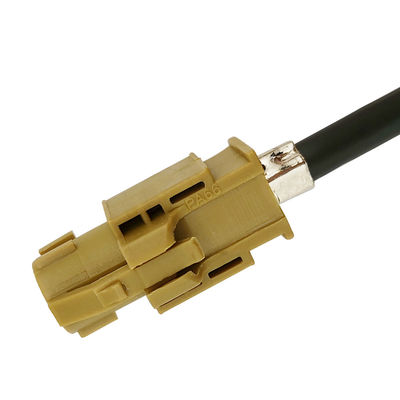

Automotive High Speed Extension HSD Code C To K Female LVDS Cable


Product description:

LEADSIGN offers advanced specialized automotive connectors and wire and cable to meet the demand for high-speed data transmission connections in vehicles.HSD connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer device ports, and display devices. Focusing on various applications in automobiles.


Main Feature:

1. Compliant with LVDS, Ethernet and USB protocols.
2. Full range of connectors for unsealed and sealed applications.
3. Expanded portfolio of PCB-side connectors.
4. High level of process automation and global manufacturing systems.
5. High-speed shielded connection system for digital data with performance up to 6Gbps.
6.Reliable and durable.
7.Multiple housings for space savings and quick plug-in operations.



1.Advanced Driver Assistance Systems (ADAS).
2.Telematics, multimedia, infotainment, GPS, navigation, and cameras.
3.Body control, safety, security, and comfort.


Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of HSD connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.


Technical Specifications:


Temperature Range -40° ~ +105°C
Characteristic Impedance 100Ω
Frequency Range DC~6GHz
Operating Voltage 100V rms
Withstand Voltage 250 V rms
Core Connection Resistance ≤ 10 mΩ
Insulation Resistance ≥ 1000 MΩ
Intervention loss ≤ 0.1 dB, DC to 2 GHz
Voltage ≥ 20 dB, DC to 1 GHz ≥ 17 dB, 1 GHz to 2 GHz




1.Q: Can your company accept customize?
A: Welcome OEM & ODM.


2.Q:Can you provide samples to me?

A:Yes,we can provide samples to you and you need to pay the shipping cost.
