Vehicle Coaxial HSD Wire Cable , Multipurpose Z Code LVDS Cable

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD LVDS Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Orientation Straight Type Coaxial
Item Auto Vehicle High-Speed Transmission Model Number Wire Harness Cable Assembly
Application Automotive Impedance 100Ω
Highlight

Vehicle HSD Wire Cable

,

Coaxial HSD Wire Cable

,

Multipurpose Z Code LVDS Cable

Leave a Message
Product Description

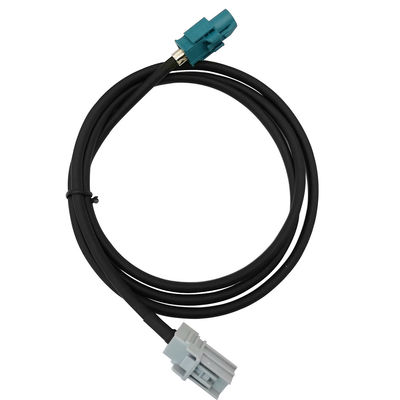

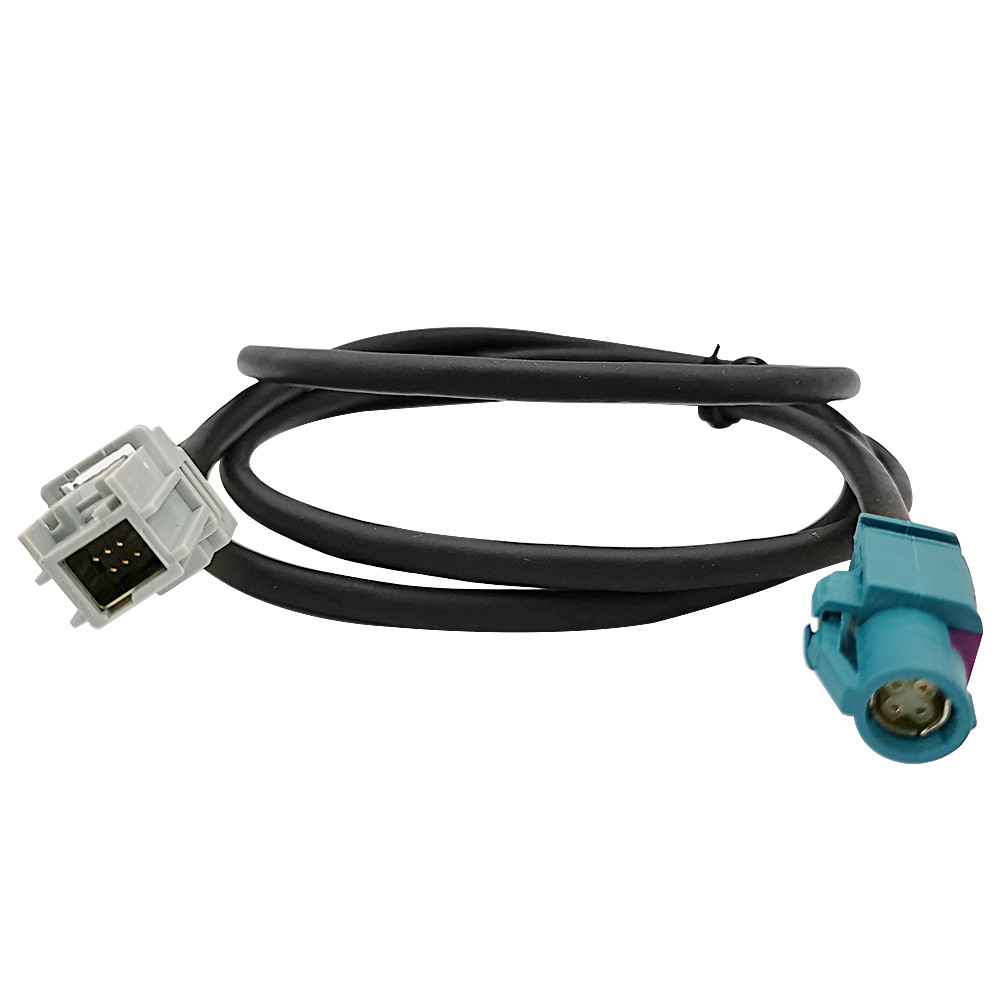

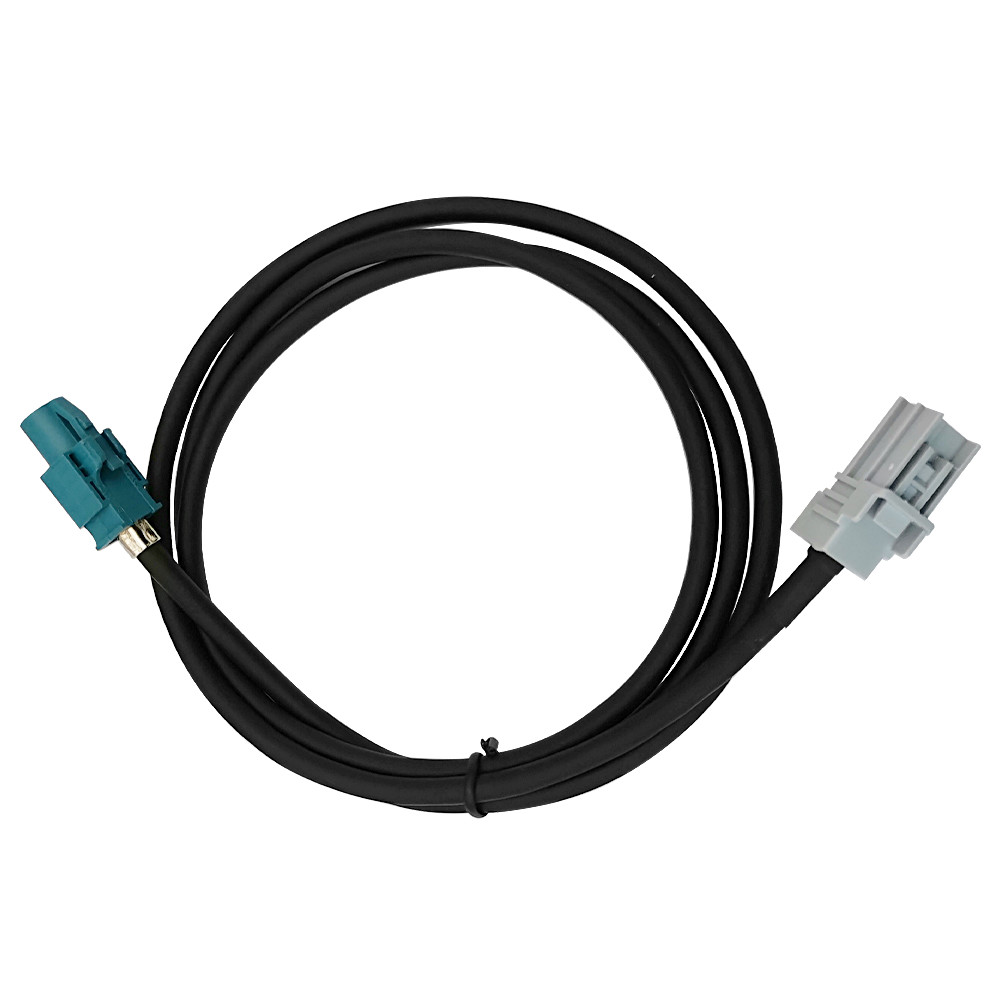

HSD Z Code Connector To Multimedia Host And Screen LVDS Cable For Buick GL8



Product description:

Automotive Connector Automotive High Speed Drive HSD LVDS Cable.HSD connectors are widely used in the field of automotive electronic entertainment system, which is an important component belonging to the signal transmission between in-car multimedia devices. Automotive wiring harnesses and connectors accept custom production!



Main Feature:

1. Ultra-high anti-interference signal transmission

2. High cost performance, controllable quality assurance, the main parts to the assembly are completed internally
3.Prevents misuse due to secure coding system
4.Primary and secondary locking systems lead to high assembling security

5.Reliable and durable

6.Multiple housings for space savings and quick plug-in operations

7.Data rate up to 6 Gbps

8.Fulfill the demanding requirements of the automotive industry



Applications:

1.Advanced Driver Assistance Systems (ADAS).
2.Telematics, multimedia, infotainment, GPS, navigation, and cameras.
3.Body control, safety, security, and comfort.

4.Aerospace.

5.TV Video.



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Characteristic impedance 100Ω
Frequency range DC-2 GHz
Operating voltage ≦100Volts rms
Insulation resistance 1000MΩ Min
Volts resistance 250Volts rms
Working current 1.5A ~ 3A DCdepending on cable type
Contact resistance Inner conductor: 10mΩ Max;
Outer conductor: 7.5mΩ Max
Insertion force 30N Max
Pull-out force 5N Min
Snap Retention Force 110 Min
Anti-misinsertion efficiency 80 Min



FAQ:

1.Q: How can I get the cable price list?

A: Please contact us with detailed inquiry information, so we can offer the latest price for you.



2.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
