Z Code Female To HSL HSD Cable Assembly 4 Pin For Auto Wire Harness

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Voltage 60 V Rms Frequency Range Depending On Cable Type DC To 6 GHz
Application Automotive Orientation Straight
Body Material Brass / Zinc Diecast Impedance 100Ω
High Light

Z Code HSD Cable Assembly

,

Female HSD Cable Assembly

,

Auto HSD Female Cable

Leave a Message
Product Description

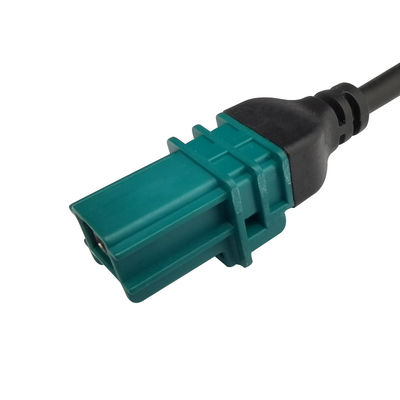

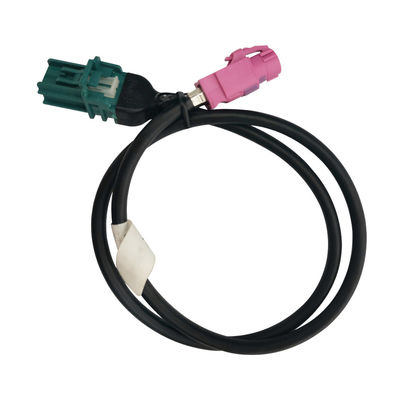

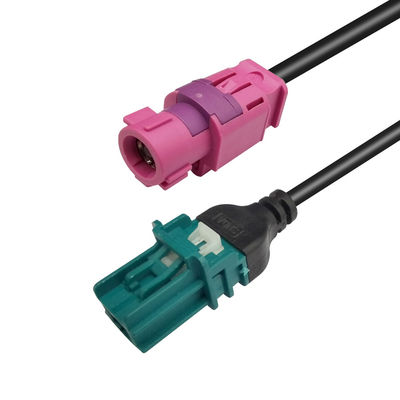

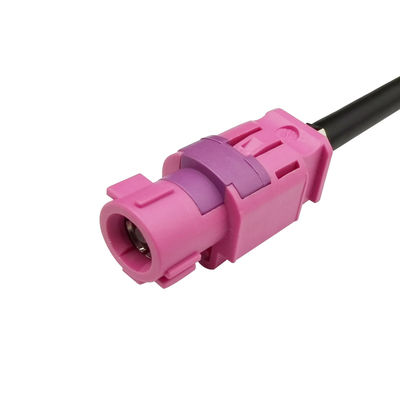

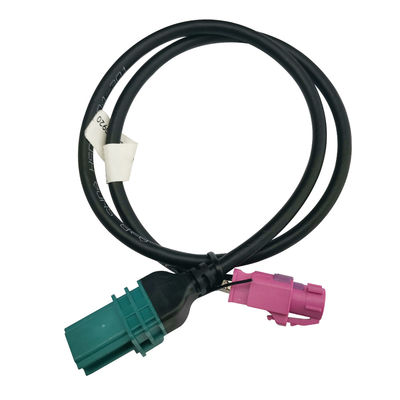

HSD 4pin Z Code Female To HSL Cable Assembly For Auto Wire Harness



Product description:

LEADSIGN offers a comprehensive range of standard cable assemblies as well as customized solutions for high-speed data transmissions. This is a high-performance digital system for low-voltage differential signals which prevents interference from crosstalk and external sources. HSD is a 100 Ω fully-shielded interconnect system that can use shielded twisted quad cables.



Main Feature:

1.Primary and secondary lock
2.Crimp connection
3.Plug pins protected by plastic domes
4.High cable retention force
5.High coding efficiency (different codings to eliminate misconnections are available on the plastic housing)
6.No contact pin damage possible
7.Scoop proof



Application:

1.Automotive electronics
2.Telecommunications industry, such as radio base stations
3.Digital infotainment electronics
4.Digital symmetric networks
5.LVDS cameras, USB connectivity, Ethernet and FireWire



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of FAKRA connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Product Detail:



Impedence 100Ω
Frequency range depending on cable type DC to 6 GHz
Roturn loss

≥ 20 dB, DC to 1 GHz

≥ 17dB,1 GHz to 2 GHz

Insertion loss ≤0.1 dB,DC to 2 GHz
Signal contact resistance ≤ 10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms



Our Serivce:

1.Samples are free of charge, only the customer has to pay the courier fee.
2.Accept OEM and ODM orders.
3.Fast delivery time and first-class service.
4.Support multiple logistics methods.
