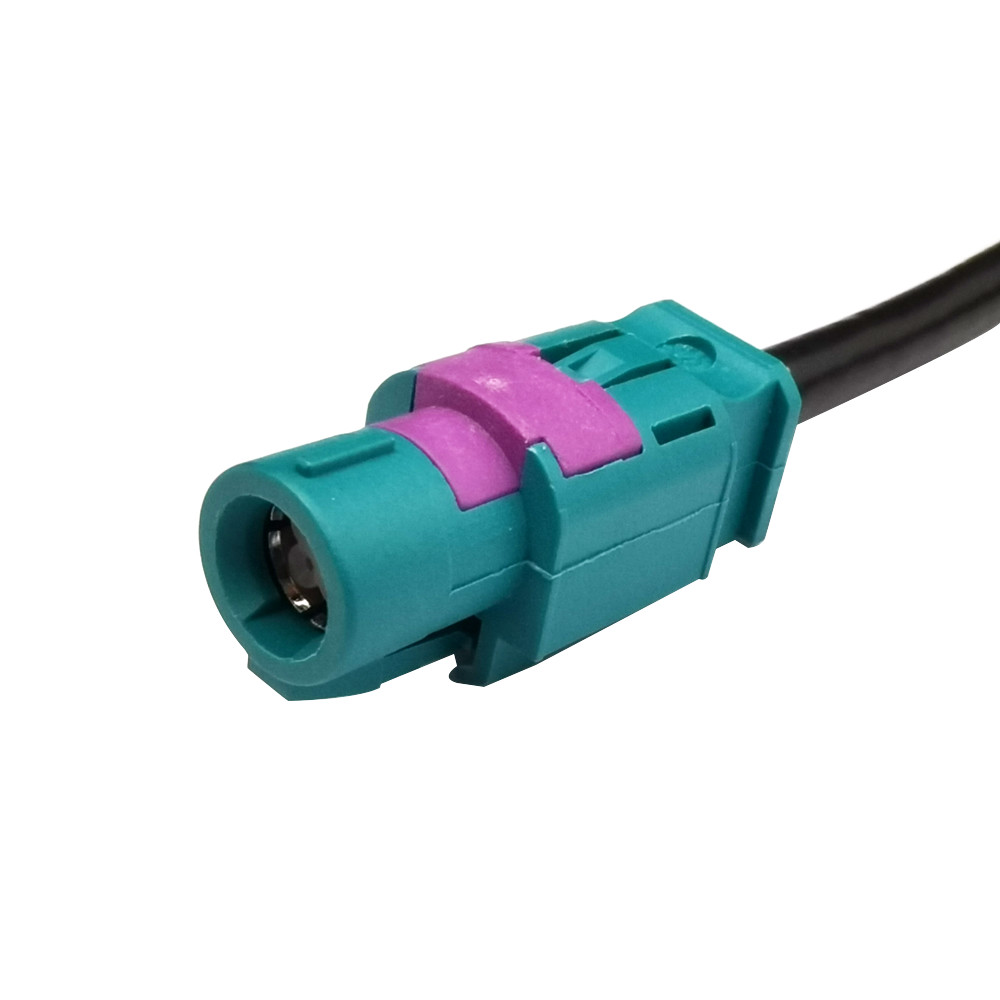

Z Code To FAKRA USB Cable 4 Pins Brass Contact Multipurpose High Speed

  • Z Code To FAKRA USB Cable 4 Pins Brass Contact Multipurpose High Speed
  • Z Code To FAKRA USB Cable 4 Pins Brass Contact Multipurpose High Speed
  • Z Code To FAKRA USB Cable 4 Pins Brass Contact Multipurpose High Speed
  • Z Code To FAKRA USB Cable 4 Pins Brass Contact Multipurpose High Speed
  • Z Code To FAKRA USB Cable 4 Pins Brass Contact Multipurpose High Speed
Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA HSD Cable
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Impedance 100Ω Contact Brass
Working Voltage 335V R.m.s At Sea Level Frequency High
Type RF Cable Application Automotive
Highlight

Z Code FAKRA USB Cable

,

Brass FAKRA USB Cable

,

Multipurpose FAKRA Z Cable
Leave a Message
Product Description

High Speed Data FAKRA HSD 4pins Z Code Cable Assembly To USB



Product description:

Designed for the automotive market, HSD is a high-performance, highly shielded data system for low-voltage differential signals that can be used in applications such as LVDS cameras, USB and IEEE1394 to meet a variety of needs.HSD offers mechanical keying, locking, color code options, and minimal size to meet global industry requirements.



Main Feature:

1. Fully shielded connector system with different wire diameters and types
2. Compliant with LVDS, Ethernet, and USB protocols
3. Full range of connectors for unsealed and sealed applications
4. Expanded portfolio of PCB-side connectors
5. High level of process automation and global manufacturing systems
6. IDB 1394 automotive specification
7. USCAR 2, REV 5
8.LV214

9. RoHS compliant



Applications:
1.Traditional Infotainment
2.Dashboard / Touch Screen
3.HD Screen
4.Bluetooth
5.USB connectivity
6.Dual-band WIFI
7.Surround Camera



Technical Specifications:



Impedance 100 Ω
Frequency Range DC～6GHz
Voltage Rating 100 VRMS Max Continuous
Dielectric Withstanding Voltage 250 VRMS Min
Insulation Resistance 1000 MΩ Min
Contact Resistance 10 MΩ Max(Center)/ 7.5 MΩ Max(Outer)
Temperature Range −40°C to +105°C
Mating Cycles 25 Min
Coupling Mechanism Push-on



FAQ:



1. Q:What is your sample policy?
A: Samples are free of charge, only the customer has to pay the courier fee.



2.Q:Do you accept OEM / ODM orders?

A:Yes, we accept OEM / ODM orders.



3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
