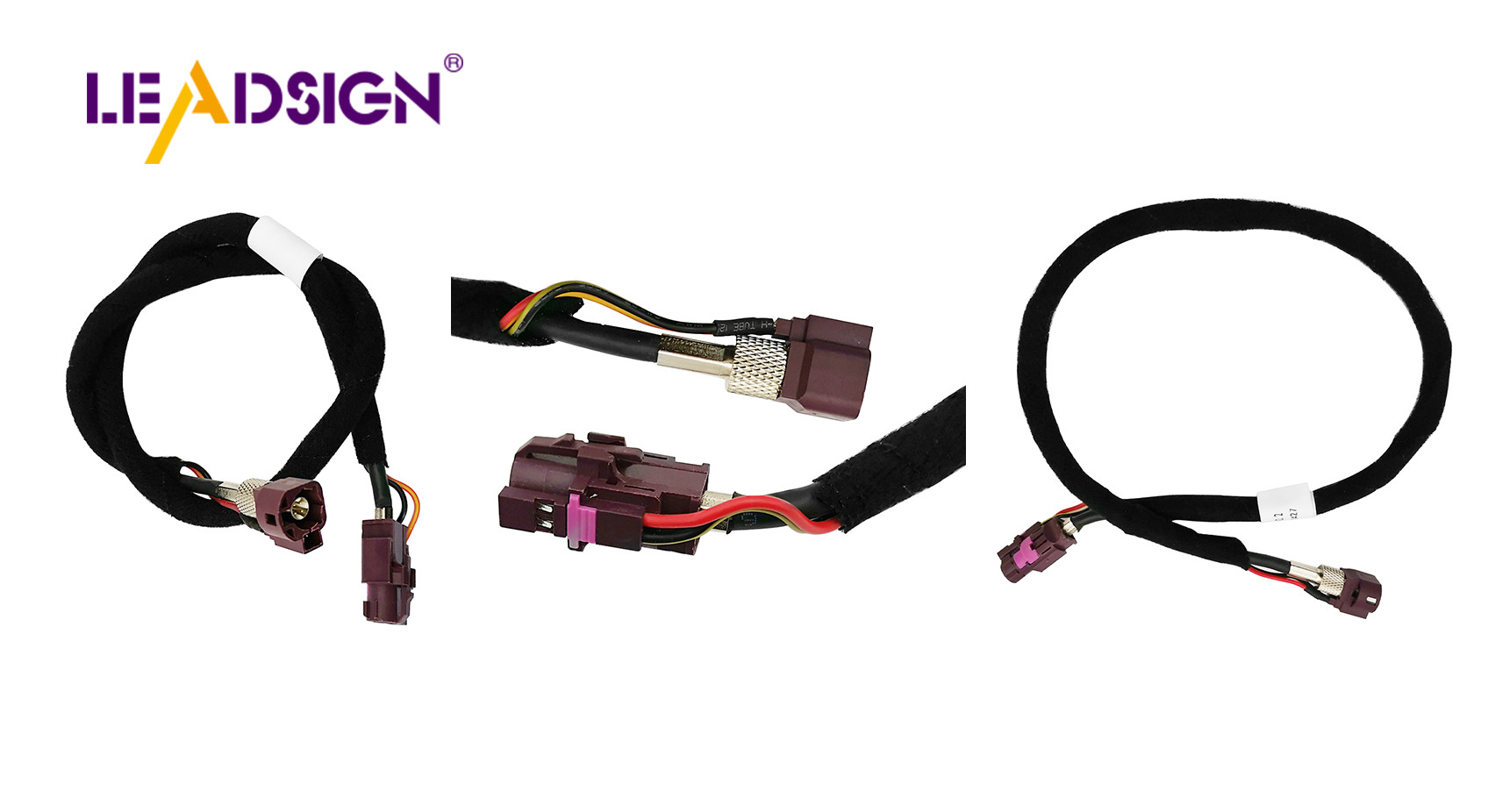

HSD LVDS Cable Enhanced Signal Integrity for High-Resolution Displays

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD LVDS Cable
Minimum Order Quantity 500 PCS
Price Contact the seller
Packaging Details Carton size 29*13*11CM,20pcs per carton
Delivery Time 7~14 work days
Supply Ability 200000 PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Impedance 100Ω Code D Code
Frequency Range Up To 6 GHz Cable Length Customizable
Voltage Resistance Complies With Industry Standards Working Temperature -40℃ ~ +105℃
MOQ 20PCS
Leave a Message
Product Description


Description:

The HSD LVDS Cable - D Code, 4+2PIN is engineered to provide enhanced signal integrity for high-resolution displays. This cable ensures reliable and efficient transmission of high-frequency signals, making it ideal for advanced automotive and industrial applications where high-quality image and data transmission is critical.

Key Feature:

  • Enhanced Signal Integrity: Minimizes signal loss and interference, ensuring clear and stable transmission.
  • High-Resolution Support: Capable of supporting high-definition displays with excellent image quality.
  • Durable Construction: Made from robust materials to withstand harsh environments and extended use.
  • Compact and Flexible Design: Easy to install in space-constrained environments, with flexibility to fit various configurations.
  • High-Frequency Performance: Supports up to 6 GHz frequency, ideal for high-speed data transfer.
  • Reliable Connection: Ensures secure and stable connections, reducing the risk of disconnections.

HSD Coding:

HSD Z Code Connector to GVIF Cable for Advanced Vehicle Networking 0HSD Z Code Connector to GVIF Cable for Advanced Vehicle Networking 1

Technical Parameters:

HSD
Coding HSD+2 A.B.C.D.E.F.Z
PIN 4 signal pins,2 power pins
Cable e.g.Dacar 535,Dacar 636
Packing Unit on request
Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C



Support and Services:

We offer flexible customization services and accept OEM and ODM orders to meet specific customer needs. Whether it's cable length, connector type, or other technical requirements, we can customize according to your requests.

Support and Services:

  • Accept OEM and ODM orders: Customized production based on customer requirements.
  • Free samples: Samples are free of charge; customers only need to pay for the courier fee.
  • Support multiple logistics methods: Choose the best logistics solution based on customer needs.
  • Fast delivery time and first-class service: Provide quick delivery and excellent customer service.
