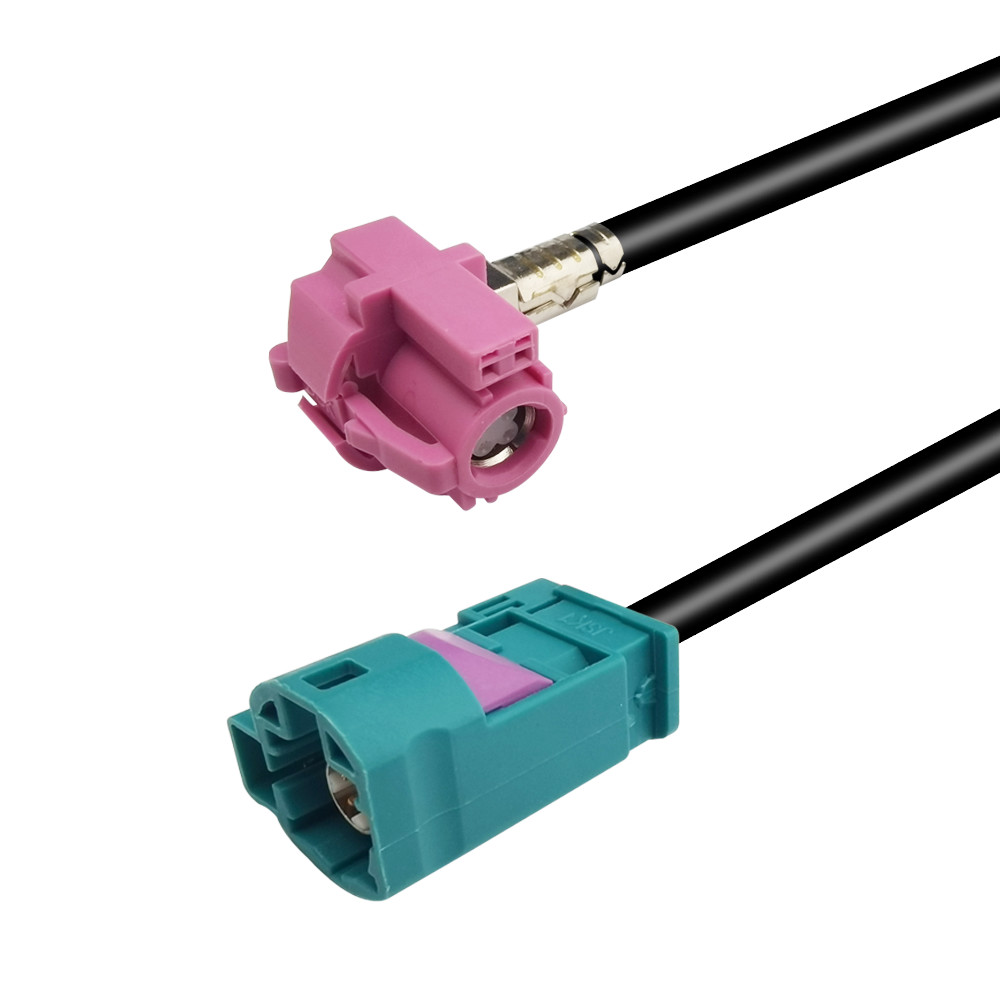

H Code HSD FAKRA Cable Assembly Female Jack To Fakra Z Male Jack

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD Cable
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number HSD Connector And Cable Frequency DC~6GHz
Orientation Straight / Right Angle Impedance 100 Ohm
Pins 4p Application Automotive
High Light

H Code FAKRA Cable Assembly

,

Female FAKRA Cable Assembly

,

Male FAKRA Connector Assembly

Leave a Message
Product Description

HSD Cable Assembly Fakra H HSD Female Jack To Fakra Z HSD Male Jack



Product description:

With the development of wireless communications and in-vehicle digital content, high-performance digital systems have been developed for high-speed data (HSD) transmission. HSD interconnect systems are designed for the automotive market, for example, LVDS cameras, USB, and IEEE 1394 applications.



Main Feature:

1.Primary and secondary lock

2.Crimp connection

3.Reliable and durable.

4.Plug pins protected by plastic domes

5.High cable retention force

6.High coding efficiency (different codings to eliminate misconnections are available on the plastic housing)

7.No contact pin damage possible

8.Multiple housings for space savings and quick plug-in operations



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of HSD connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Impedance 100 Ω
Frequency Range DC~6GHz
Voltage Rating 100 VRMS Max Continuous
Dielectric Withstanding Voltage 250 VRMS Min
Insulation Resistance 1000 MΩ Min
Contact Resistance 10 MΩ Max(Center)/ 7.5 MΩ Max(Outer)
Temperature Range −40°C to +105°C
Mating Cycles 25 Min
Coupling Mechanism Push-on



HSD Coding:

Car GSM FAKRA Antenna Connector , RF Coaxial PCB Mount FAKRA Code D 0Car GSM FAKRA Antenna Connector , RF Coaxial PCB Mount FAKRA Code D 1



About Us:



Responsibility is the assurance of quality, and quality is the life of corporation. We have a strong R&D team, located in Shenzhen, China.We are looking forward to long term cooperation with customers, we will make best service and after sales service for all of our customers. If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.



FAQ:

1. Q:What is your sample policy?
A: Samples are free of charge, only the customer has to pay the courier fee.



2.Q:Do you accept OEM / ODM orders?

A:Yes, we accept OEM / ODM orders.



3. Q: What are your payment terms?
A: L/C, T/T, Western Union can be accepted.



H Code HSD FAKRA Cable Assembly Female Jack To Fakra Z Male Jack 2H Code HSD FAKRA Cable Assembly Female Jack To Fakra Z Male Jack 3
