4 Pins Housing Jack HSD Automotive Harness , Practical HSD Female To Female Cable

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD Cable Assembly
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Coaxial Orientation Straight / Right Angle
Gender Female Pins 4P
Application Automobile Impedance 100 Ohm
High Light

4 Pins HSD Automotive Harness

,

Housing Jack HSD Automotive Harness

,

Practical HSD Female To Female Cable

Leave a Message
Product Description

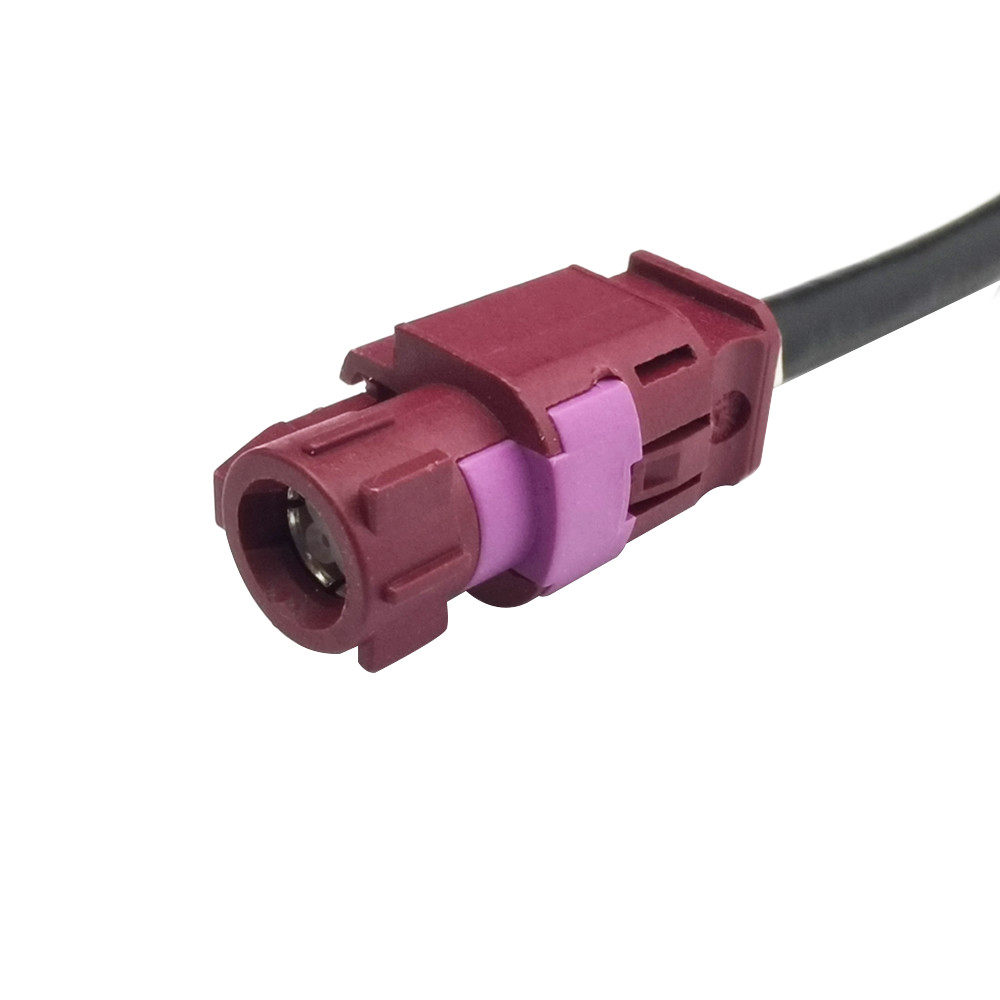

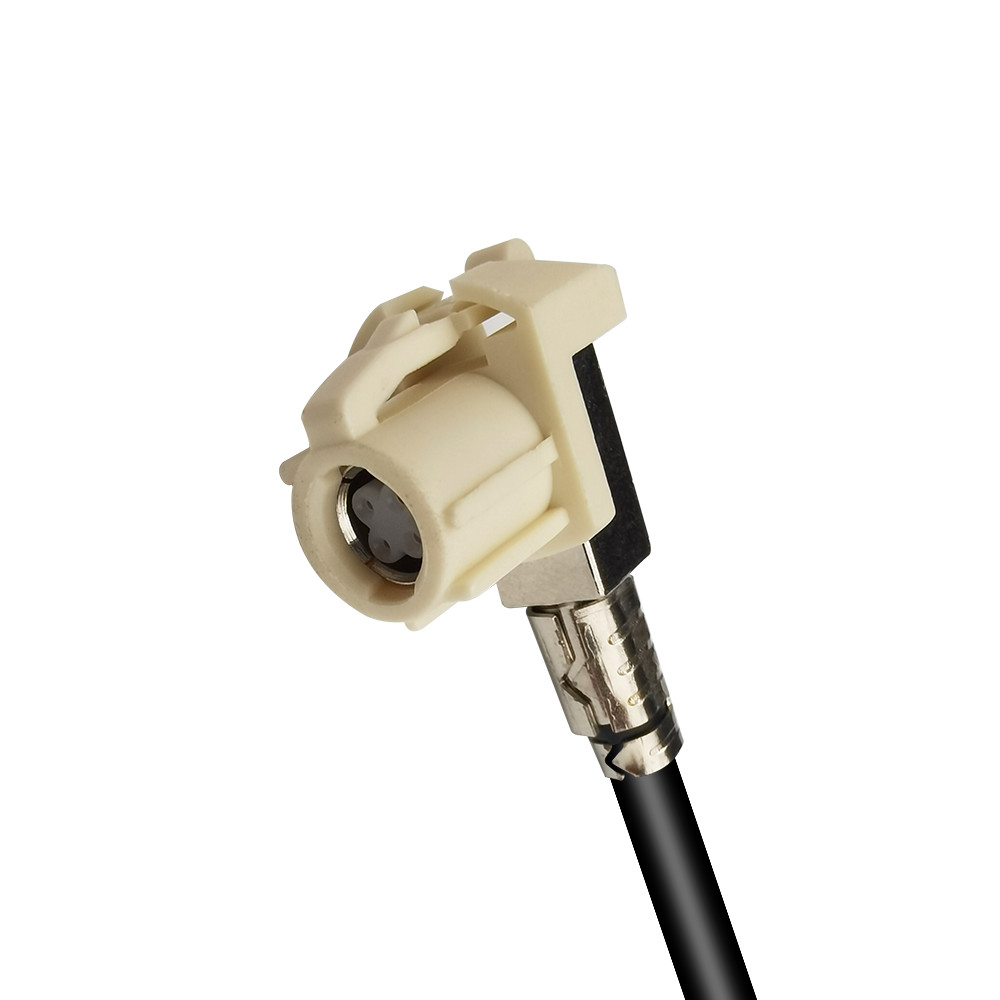

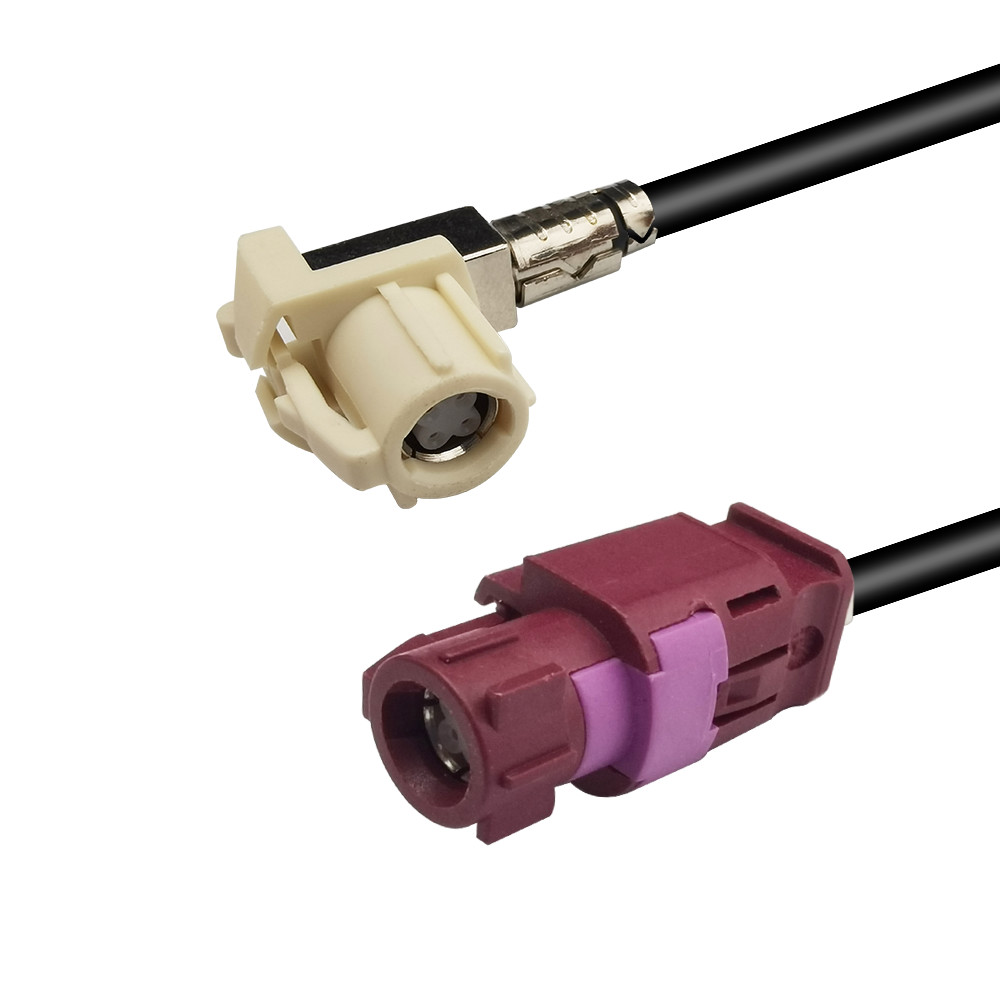

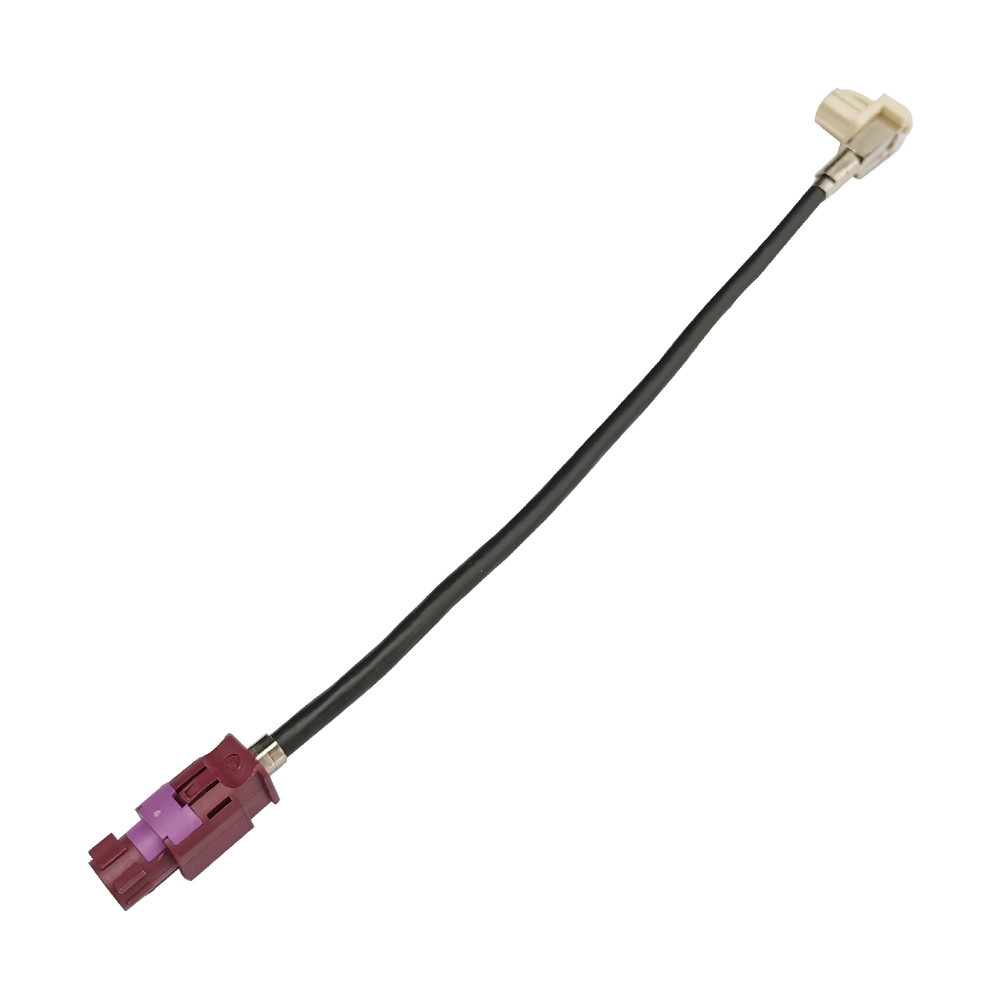

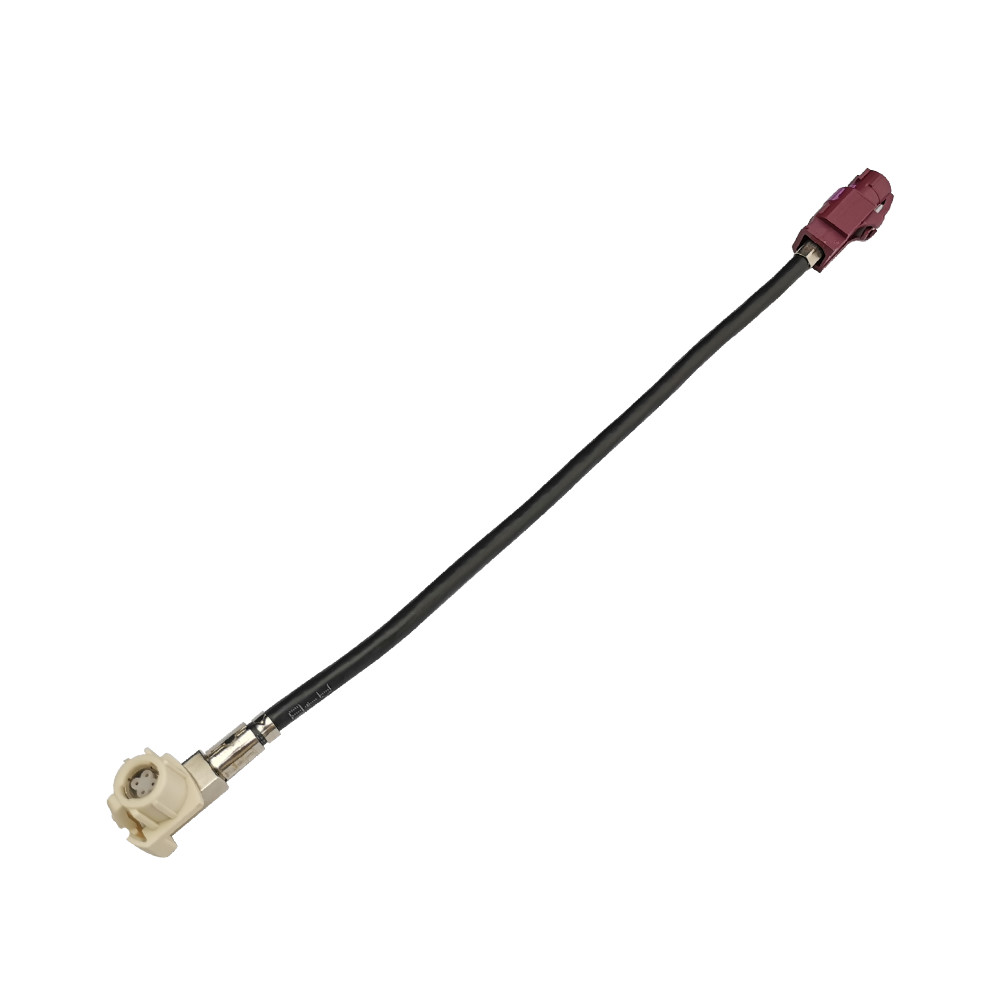

HSD Automotive Harness 4 Pins Connector Female To Female Cable With Housing Jack



Product description:

The HSD connection system is a high-performance, highly shielded data system for low-voltage differential signals with a characteristic impedance of 100 Ω using shielded twisted-pair cables.
The HSD interface developed for the automotive industry provides two differential signal pairs, so that data can be sent not only based on low-voltage differential signals (LVDS), but also for USB 2.0 / 3.0, Ethernet (100BASE-TX, 1000BASE-T1, BroadR-Reach) specifications with high shielding efficiency. The relevant transmission characteristics can meet the requirements even under strict cost requirements. With the introduction of automotive Ethernet, the tight structure of HSD is also a compatible solution.





Main Feature:

1.High-performance digital systems for low-voltage differential signals.
2.Protection against crosstalk and interference from external signal sources.
3.High holding power.
4.One solution for many digital transmission standards.
5.Fulfill the demanding requirements of the automotive industry.
6.Prevents misuse due to secure coding system.
7.Primary and secondary locking systems lead to high assembling security.
8.Reliable and durable.
9.Multiple housings for space savings and quick plug-in operations.
10.Stamped and formed variants (SF) for process-safe, fully automated assembly and significant cost reductions.



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of HSD connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



HSD
Temperature Range -40° ~ +105°C
Characteristic Impedance 100Ω
Frequency Range DC~6GHz
Withstand Voltage 250 V rms
Voltage ≥ 20 dB, DC to 1 GHz ≥ 17 dB, 1 GHz to 2 GHz
Intervention loss ≤ 0.1 dB, DC to 2 GHz
Insulation Resistance ≥ 1000 MΩ
Core Connection Resistance ≤ 10 mΩ
Operating Voltage 100V rms



About Us:



Responsibility is the assurance of quality, and quality is the life of corporation. We have a strong R&D team, located in Shenzhen, China.We are looking forward to long term cooperation with customers, we will make best service and after sales service for all of our customers. If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.



FAQ:

1.Q:Do you have a catalog? Can you send me the catalog to have a check of all products?

A:Yes, can contact us online or send an Email to get the catalog.



2.Q:Do You Accept OEM / ODM Orders?

A:Yes, we accept OEM / ODM orders.



4 Pins Housing Jack HSD Automotive Harness , Practical HSD Female To Female Cable 04 Pins Housing Jack HSD Automotive Harness , Practical HSD Female To Female Cable 1
