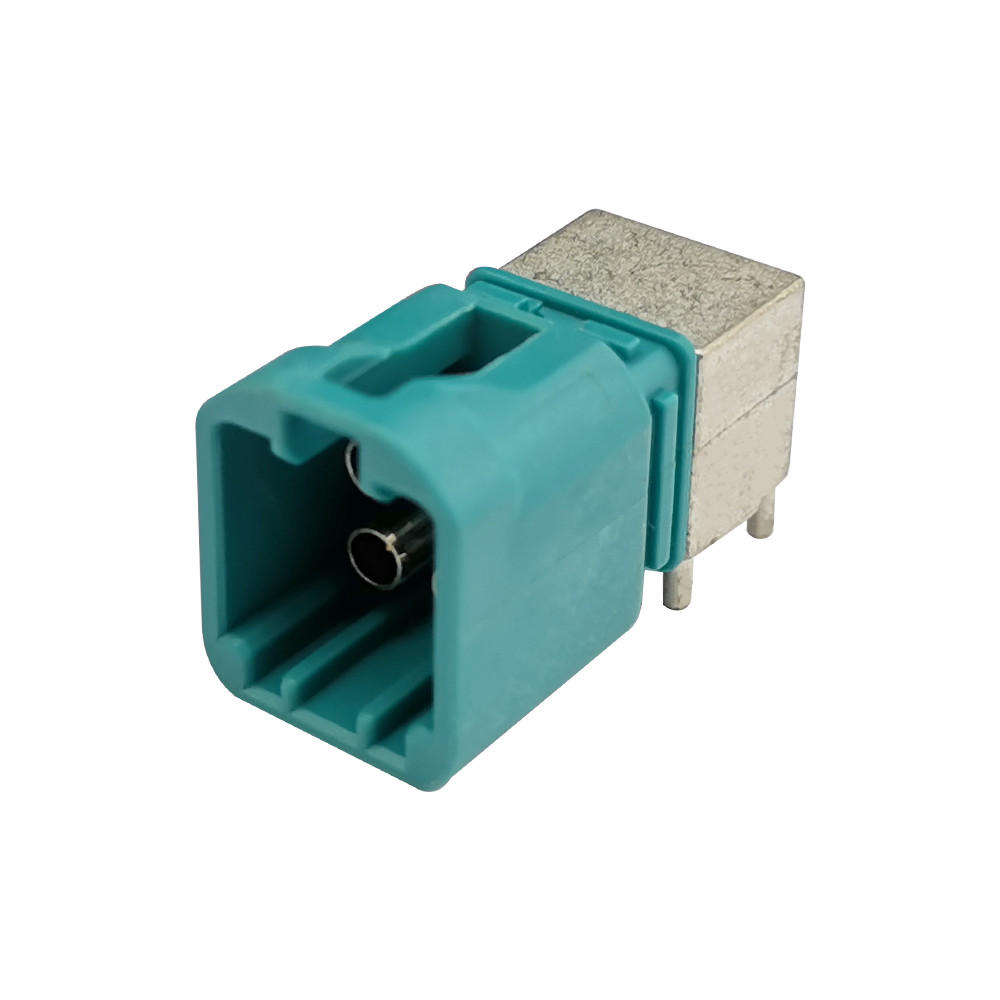

HFM Quad Mini FAKRA Connectors Durable For Car 360 Camera System

Place of Origin China
Brand Name LDS
Certification E-Mark
Model Number LDS-HFM-204ZM
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Carton size 29*13*11CM,20pcs per carton
Delivery Time 7~14 work days
Supply Ability 200000 PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Impedance 50Ω Frequency DC To 9 GHz
Insulation Resistance ≥1000 MΩ Test Voltage 750 V Rms
Working Voltage 335 V Rms Power Current ≤1.0A DC
Working Temperature -40℃ ~ +105℃
High Light

HFM Mini FAKRA Connectors

,

Quad Mini FAKRA Connectors

,

Camera System Quad Mini FAKRA

Leave a Message
Product Description

Quad Right Angle Plug Mini Fakra HFM Automobile For Car 360 Camera System

Description:

The Mini Fakra product is designed for four high-speed data transmission to meet automotive data transmission rates up to 6 GHz.HSD connectors provide connectivity solutions for automotive infotainment modules, cameras, Global Positioning Satellite, display devices and Remote Vehicle.

Key Feature:
1.High-speed shielded connection system suitable for digital data with performance up to 6 Gbps.
2.High reliable connection, good contact and firm not loose.
3.Can be used in combination with multiple protocol interfaces such as LVDS Ethernet and USB.
4.Have their own unique coding, coding and color are used for different purposes.
5.High level of process automation and global manufacturing footprint
6.Extend the PCB connector product portfolio.
7.Have multiple types of integration.
8.IDB 1394 Automotive Specification.

Technical Specifications:


Material
 Housing PA
 Center Pin Copper Alloy
 Outer contact Zinc Alloy
 Insulator HTN
Electrical Performance
 Impedance 100 Ω
 Frequency Range DC to 2 GHz
 Return Loss

 ≥20 dB to 1 GHz
 ≥17 dB to 2 GHz

 Insertion Loss ≤0.1 dB to 2 GH
 Insulation Resistance ≥ 1000 MΩ
 Center Contact Resistance ≤ 8mΩ
 Test Voltage 250 V rms
 Working Voltage 100 V rms
 Contact Current ≤ 1.5 A DC
Mechanical Performance
 Mating Cycles ≥ 25 Time
 Engagement Force ≤ 30 N
 Disengagement Force ≥5 N
 Retention Force Latch ≥ 110 N
 Temperature Range -40 °C ~ +105 °C


Dimensions & PCB Layout:

HFM Quad Mini FAKRA Connectors Durable For Car 360 Camera System 0
Others Coding:
 HFM Quad Mini FAKRA Connectors Durable For Car 360 Camera System 1
