Female To Female HSD Cable Assembly 4 Pins Z Code Waterblue Color

Place of Origin CHINA
Model Number HSD Cable
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model Number HSD 4 PIN Connector And Cable Impedance 100Ω
Temperature Range -40° ~ +105°C Pins 4P
Frequency DC~6GHz Application Automotive
High Light

Female HSD Cable Assembly


Waterblue HSD Cable Assembly


Z Code Female HSD Cable

Leave a Message
Product Description

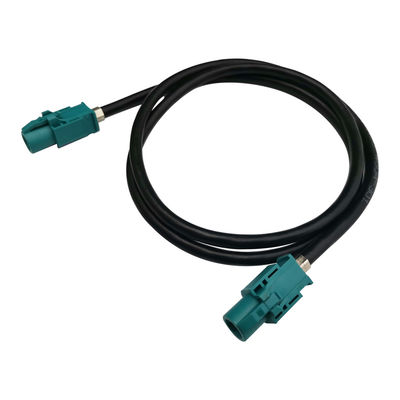

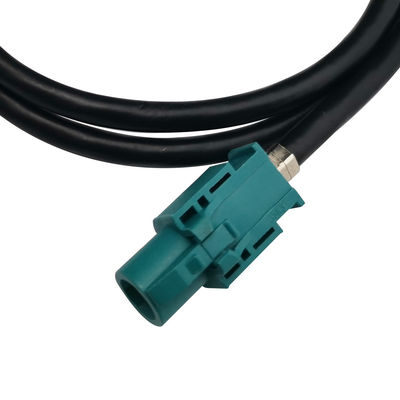

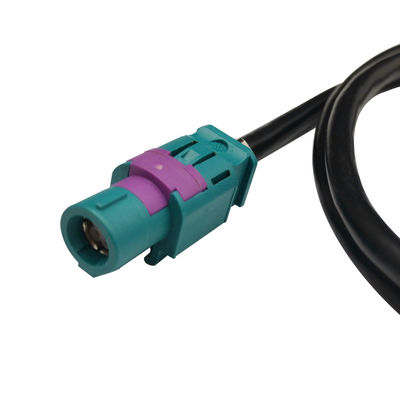

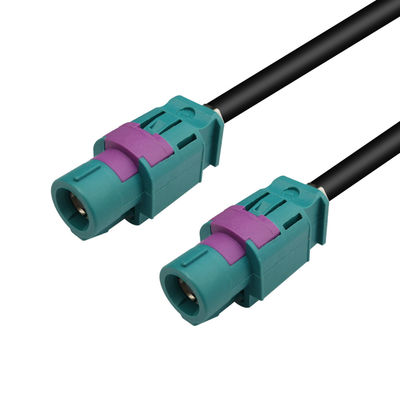

HSD Cable Z Code 4 Pins Waterblue Female To Female High Speed Data Automotive


Product description:

High-Speed Data (HSD) connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer ports, and display units. The development of unlimited communication and digital content in vehicles has driven the demand for high-speed data communication systems in automobiles.


Main Feature:

1.Stamping and forming variants (SF) for process safety, fully automated assembly, and significant cost reduction.
2.Meets the demanding requirements of the automotive industry.
3.Preventing misuse thanks to a safety coding system.
4.High assembly safety due to primary and secondary locking systems.
5.Reliable and durable.
6.Multiple housings for space-saving and fast plug-in operation.


Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of HSD connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.


Technical Specifications:


lmpedance 100Ω±15%
Frequency DC to 6.0 GHz
Return loss

20 dB to 1.0 GHz

≥17 dB to 2.0 GHz

lnsertion loss ≤0.1 dB @ 2.0 GHz
Pair Skew(between signal contacts)
Straight connectors ≤5 psec./m
Right angle connectors ≤25 psec./m
Nearend-crosstalk ≤30 dB(1 GHz)
Farend-crosstalk ≤35 dB(1 GHz)
Insulation resistance ≥1x10M³Ω
Signal contact resistance ≤10 m Ω
Outer contact resistance ≤7.5m Ω
Test voltage 250 v rms
Working voltage 100 v rms
RF-leakage(Shielding effectiveness)

75 dB up to 1 GHz

≥65 dB up to 2 GHz

Mechanical data
Mating cycles 25
Engagement force ≤30 N
Disengagement force ≥5N
Housing retention force 110 N
Polarization feature effectiveness ≥ 80 N
Cable retention force ≥150 N
Envirinmental data
Temperature range -40℃ to+105℃
Thermal shock DIN IEC 60068-2-14
Vibration(Random) DIN IEC 60068-2-64
Temperature and humidity USCar 2.4-5.6.2
2011/65/EU Compliant


About Us:

Responsibility is the assurance of quality, and quality is the life of corporation. We have a strong R&D team, located in Shenzhen, China.We are looking forward to long term cooperation with customers, we will make best service and after sales service for all of our customers. If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.



1.Q: How can I get the cable price list?
A: Please contact us with detailed inquiry information, so we can offer the latest price for you.


2.Q:Can you provide samples to me?
A:Yes,we can provide samples to you and you need to pay the shipping cost.

3.Q: Can your company accept customize?
A: Welcome OEM & ODM.
