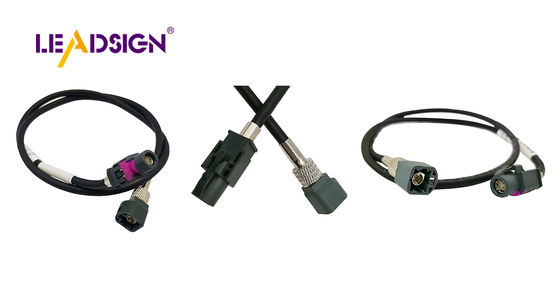

HSD LVDS Cable A Code Black Color 4PIN Connector Cable for ADAS Systems

Place of Origin CHINA
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD LVDS Cable
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

Product Description:

The HSD LVDS Cable - A Code, Black Color, 4PIN is specifically designed to deliver durable and reliable performance for Advanced Driver Assistance Systems (ADAS). With a robust construction and high-quality materials, this cable ensures consistent and stable data transmission, making it an essential component in modern automotive systems.

Features:

  1. Durable Construction: Engineered with high-quality materials to withstand harsh automotive environments.
  2. Reliable Performance: Ensures stable and consistent signal transmission, reducing the risk of data loss.
  3. High-Frequency Support: Capable of handling high-frequency signals, suitable for advanced ADAS applications.
  4. Compact Design: The 4PIN configuration allows for easy integration into space-constrained areas.
  5. Enhanced Signal Integrity: Minimizes interference and signal degradation, ensuring clear and accurate data transmission.
  6. Easy Installation: Designed for quick and secure installation, reducing assembly time and costs.

Applications:

  1. Advanced Driver Assistance Systems (ADAS): Provides reliable data transmission for various ADAS functionalities such as lane departure warnings, adaptive cruise control, and collision avoidance systems.
  2. Automotive Infotainment Systems: Delivers high-quality audio and video signals to car entertainment systems.
  3. Navigation Systems: Ensures stable and precise data transfer for in-car navigation devices.
  4. Rear-View and Surround-View Cameras: Connects cameras to the vehicle's display system, providing clear and real-time video feeds.
  5. Vehicle-to-Everything (V2X) Communication: Facilitates secure and reliable communication between the vehicle and external systems.
  6. Telematics Systems: Supports the transmission of telematics data for vehicle tracking, diagnostics, and remote control applications.



HSD Coding:

HSD Z Code Connector to GVIF Cable for Advanced Vehicle Networking 0HSD Z Code Connector to GVIF Cable for Advanced Vehicle Networking 1

Technical Parameters:

HSD
Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C

Support and Services:

We offer flexible customization services and accept OEM and ODM orders to meet specific customer needs. Whether it's cable length, connector type, or other technical requirements, we can customize according to your requests.

Support and Services:

  • Accept OEM and ODM orders: Customized production based on customer requirements.
  • Free samples: Samples are free of charge; customers only need to pay for the courier fee.
  • Support multiple logistics methods: Choose the best logistics solution based on customer needs.
  • Fast delivery time and first-class service: Provide quick delivery and excellent customer service.
