Dual Plug Z Code FAKRA Extension Cable Stable With Waterblue Connector

Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA Extension Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Telematics, Multimedia, Infotainment, GPS, Navigation Pins 2P
Connector Body Style Straight Impedance 50 Ohm
Model Number FAKRA Extension Cable Gender Female
High Light

Dual Plug FAKRA Extension Cable

,

Stable FAKRA Extension Cable

,

Waterblue Connector FAKRA Z Cable

Leave a Message
Product Description

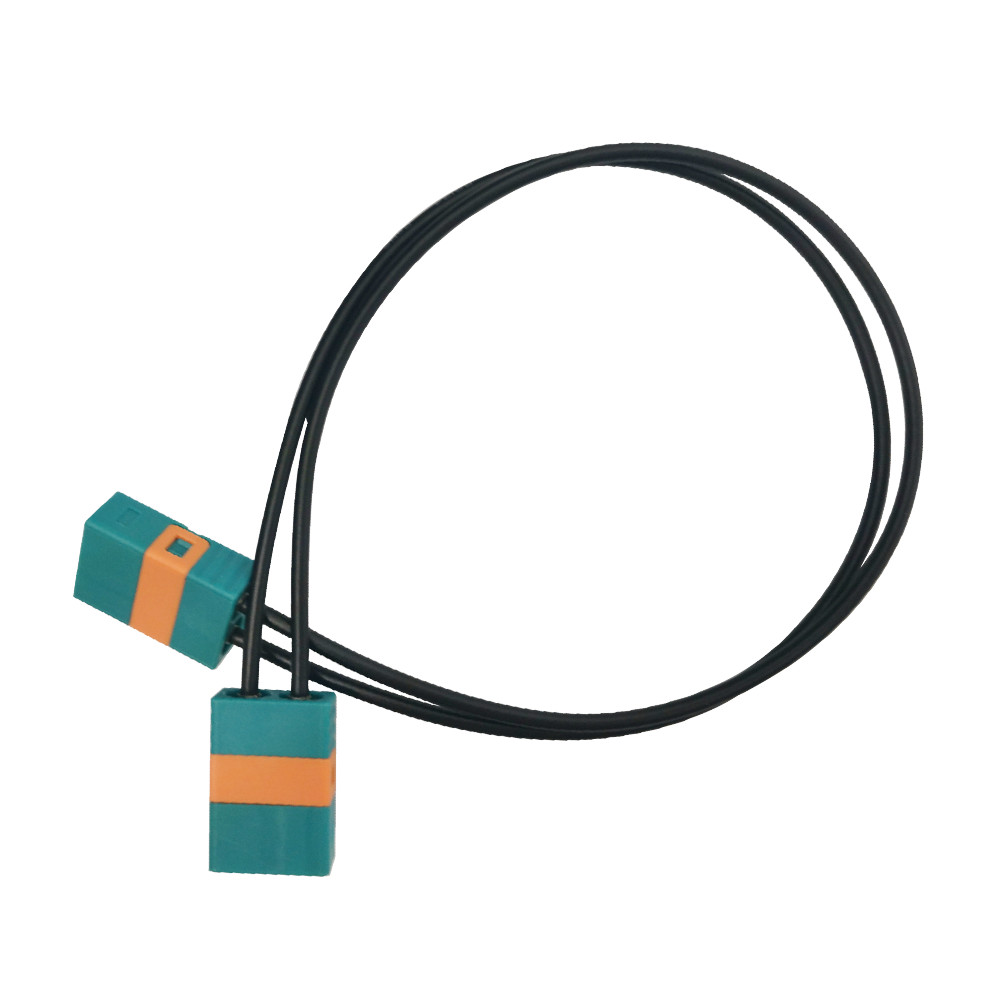

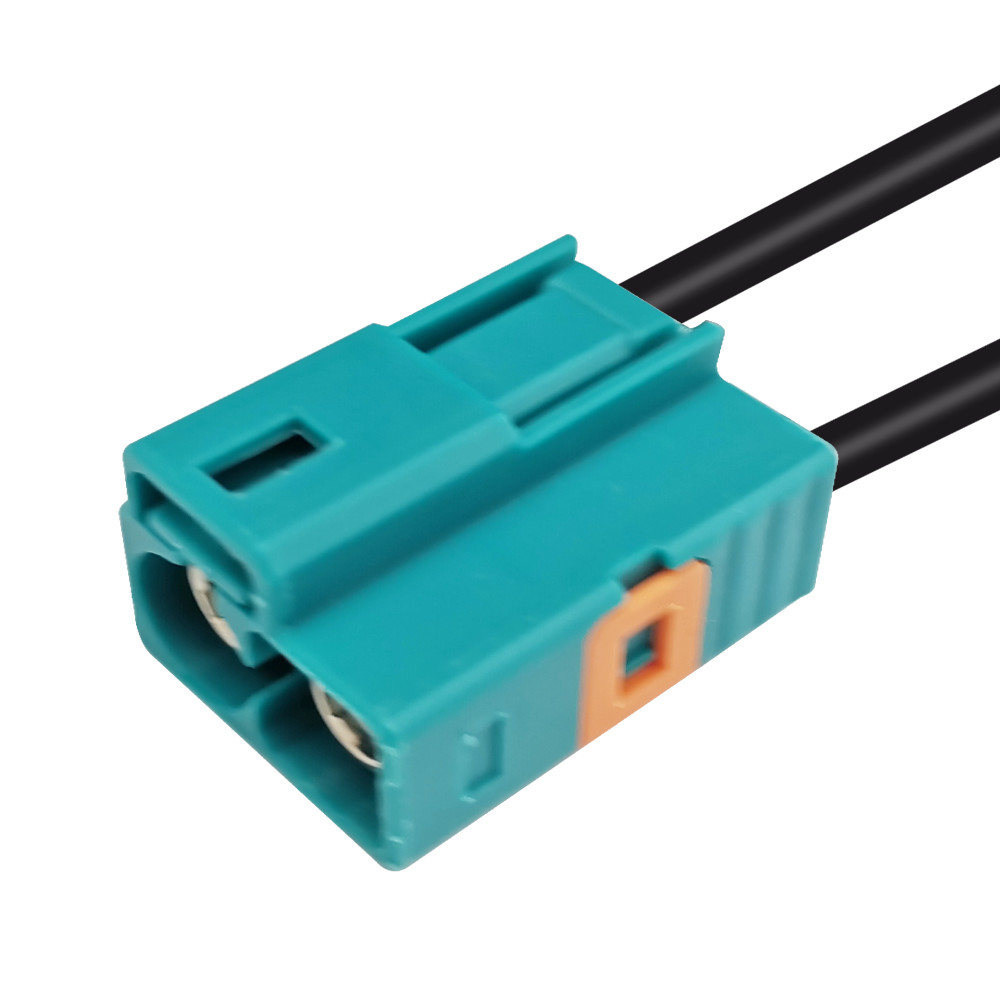

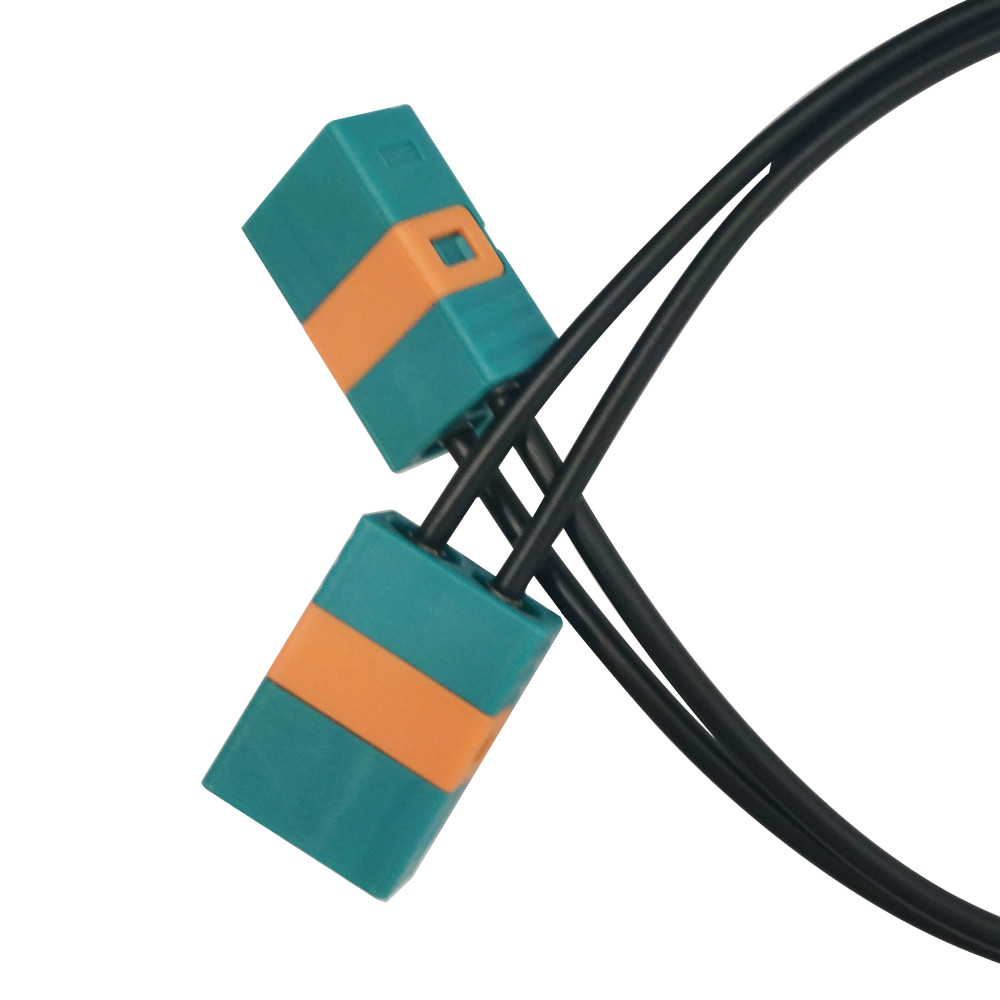

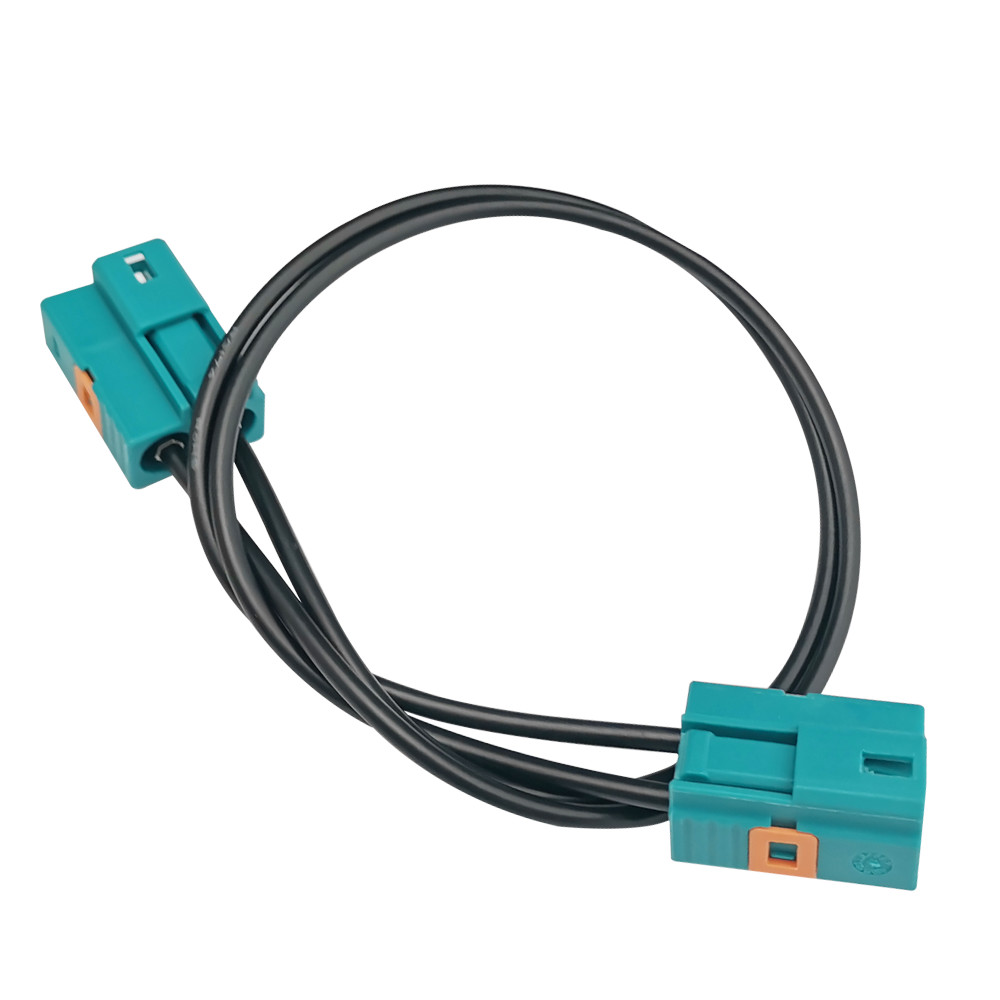

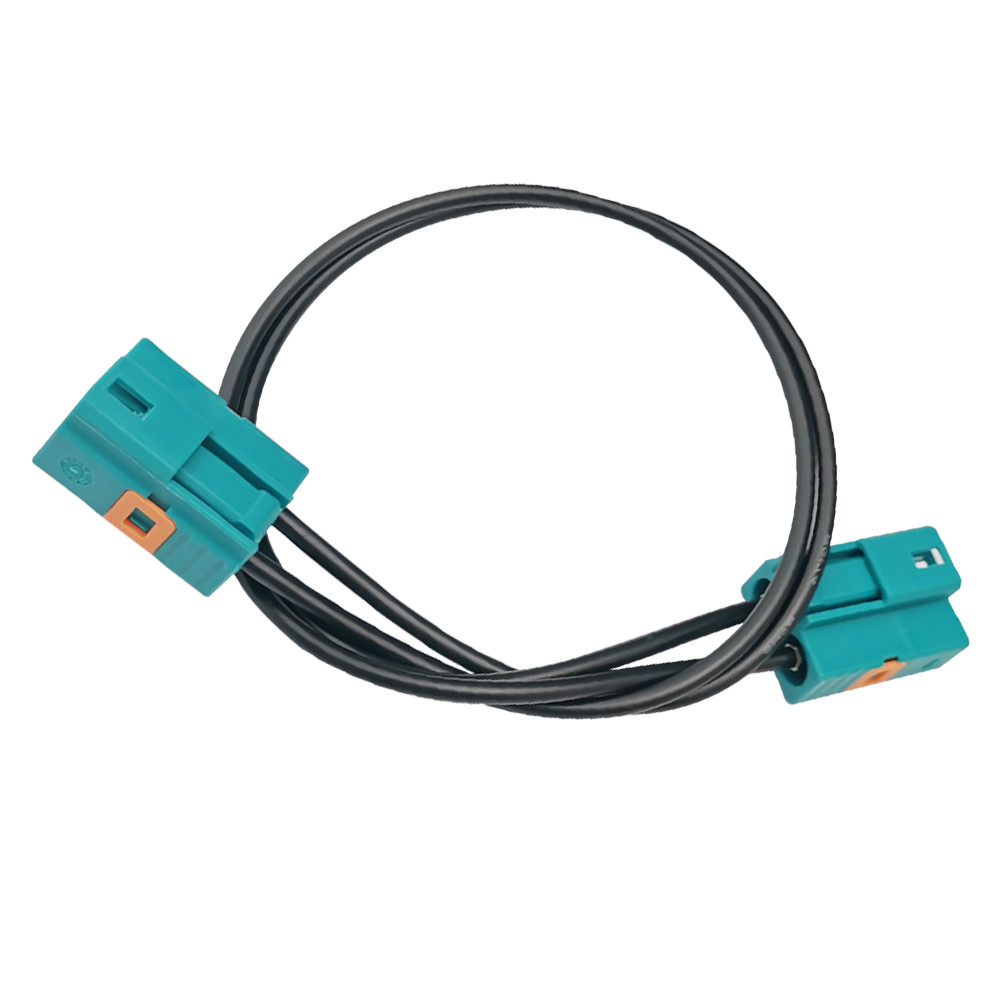

Fakra Waterblue Connector Dual Twin Double Fakra Plug Z Code Extension Cable



Product description:

HFM allows customers to trust an interface that can adapt to future vehicle networks, applications, and protocols. The primary task of autonomous driving and driver assistance systems is to ensure safety. It needs to determine the exact position, constantly calculate routes, and detect and classify objects. High volumes of data from multiple cameras, different sensors, and navigation sources must be combined and transmitted for this purpose - in real-time. HFM complies with all common automotive standards. Reduced weight and size - up to 80% space saving compared to conventional FAKRA connectors.



Main Feature:

1.Small dimensions – optimized used of space
2.Highest mechanical robustness
3.Modular system – saving installation space by as much as 80 %
4.Cost optimized
5.Real-time data transmission
6.CPA – optional Connector Position Assurance



Application:

1.Autonomous driving
2.Driver assistance systems
3.Navigation
4.Infotainment
5.Rear-entertainment
6.Internet & mobile communication
7."WiGig" (Wireless Gigabit)



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of HSD connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Product Detail:



lmpedance 50Ω
Frequency range DC up to 20 GHz
High data rates up to 28 Gbps
Mating cycles up to 25
Center contact resistance ≤ 15 mΩ
Outer contact resistance ≤5 mΩ
Test voltage ≤800 V rms
Working voltage ≤60 V DC
Temperature range -40°C-+105°C



Our Serivce:

1.Fast delivery time and first-class service.

2.Samples are free of charge, only the customer has to pay the courier fee.
3.Support multiple logistics methods.

4.Accept OEM and ODM orders.
