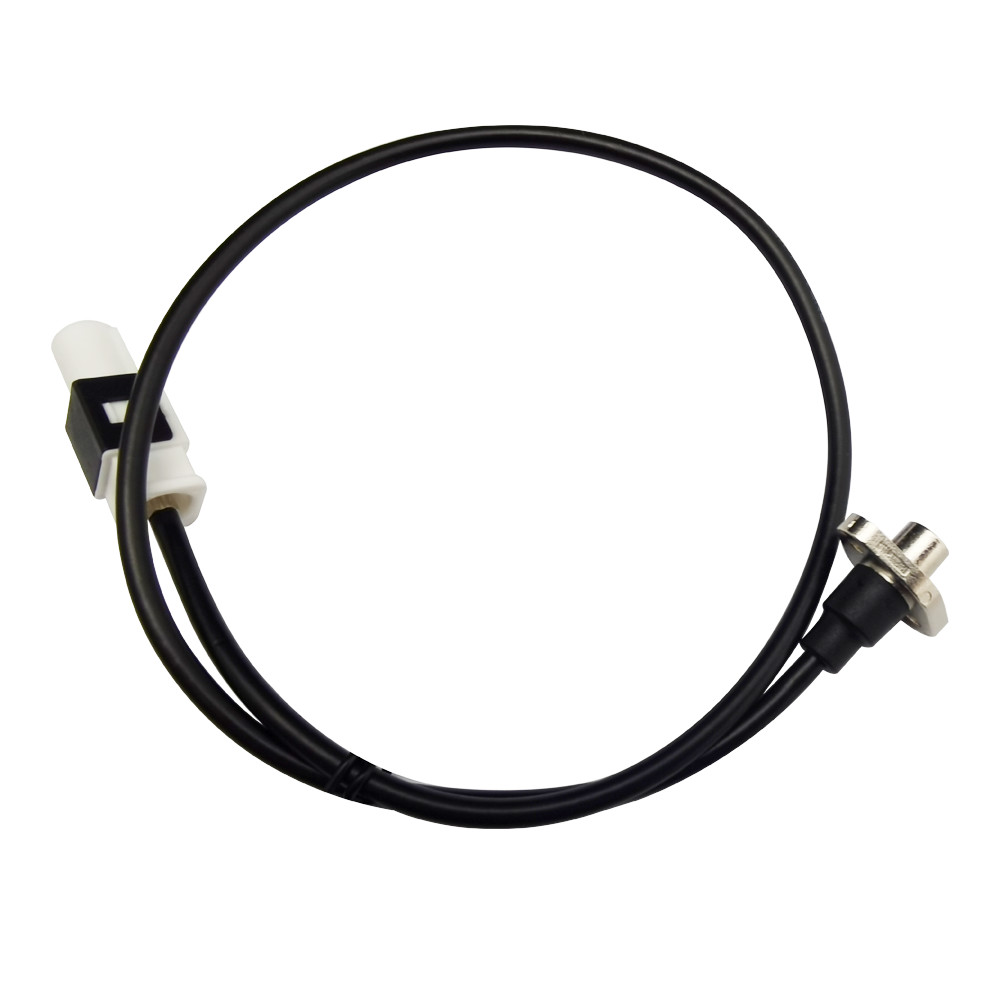

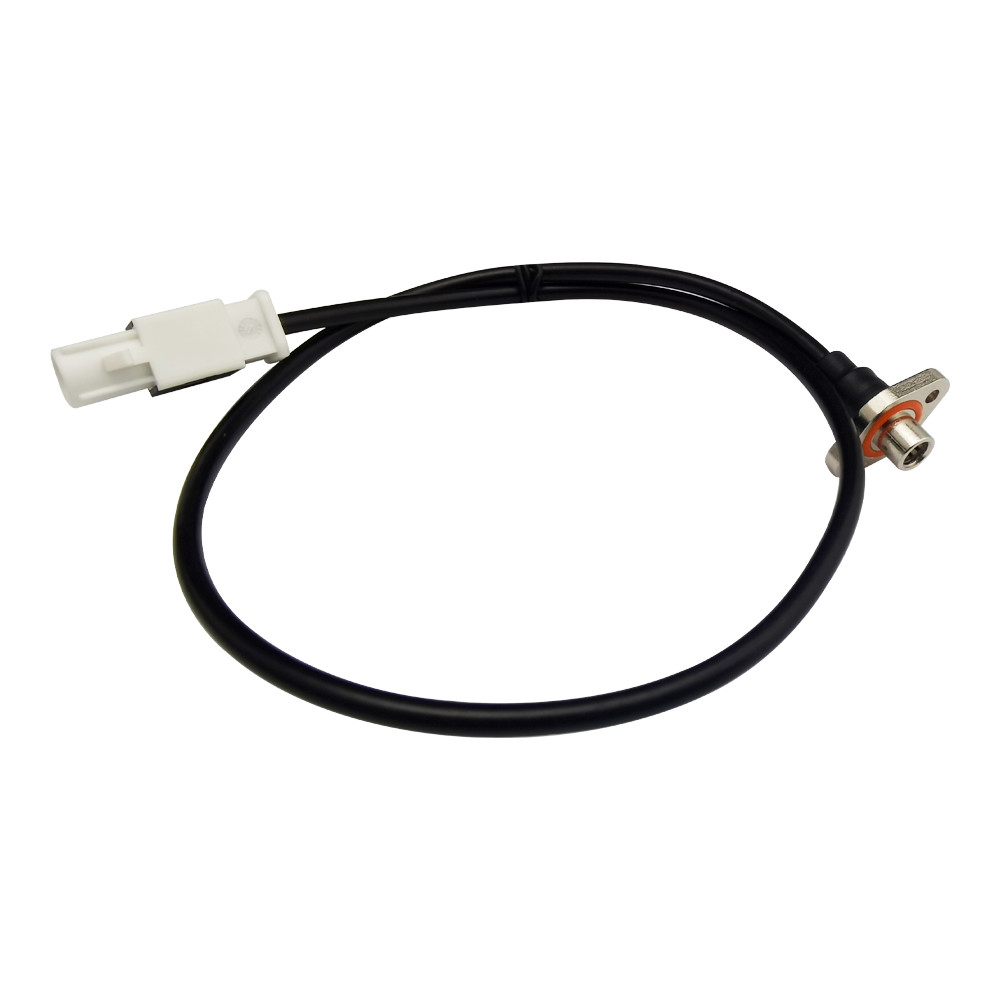

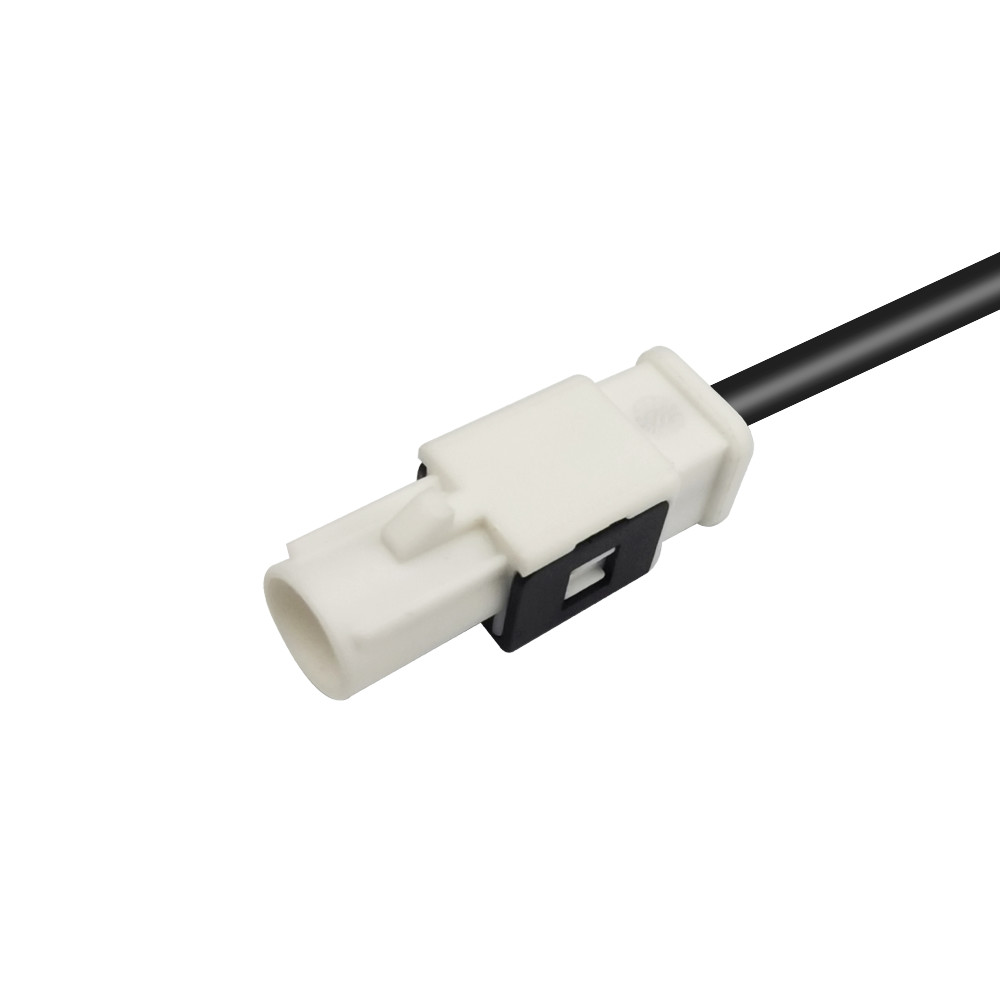

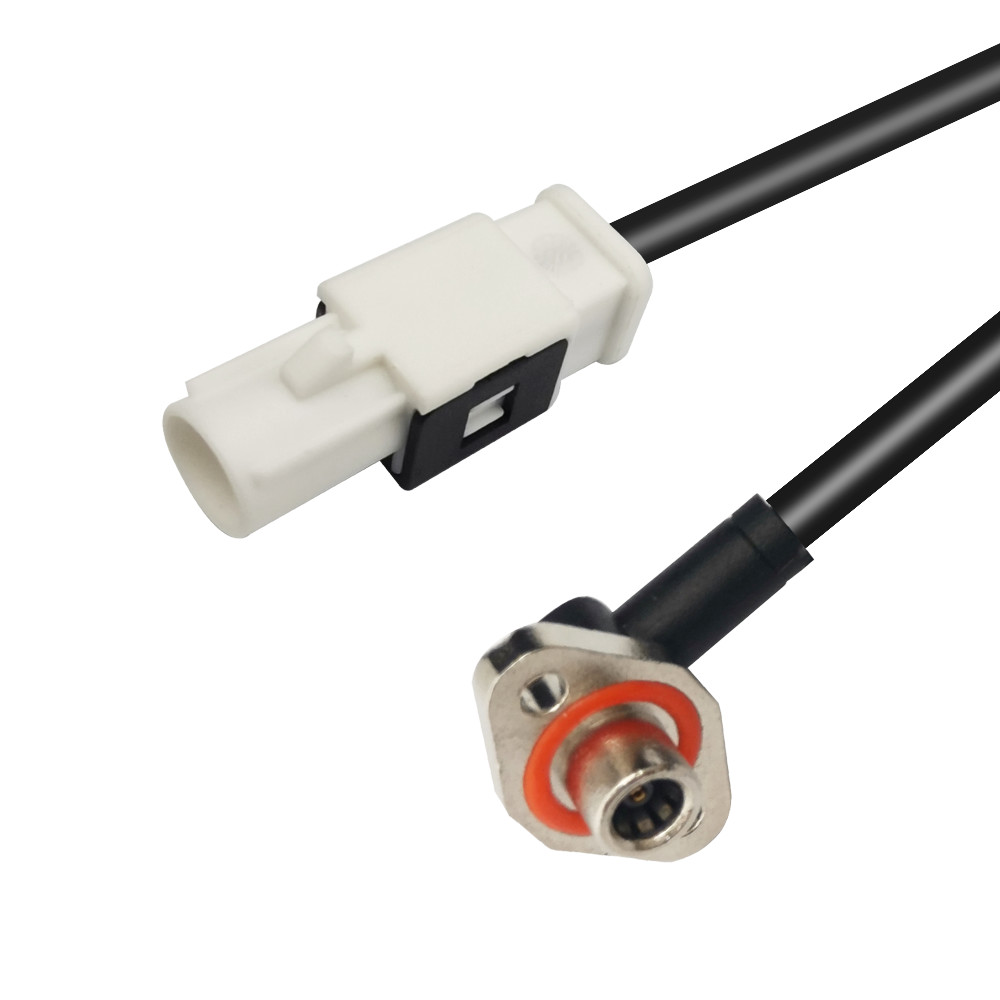

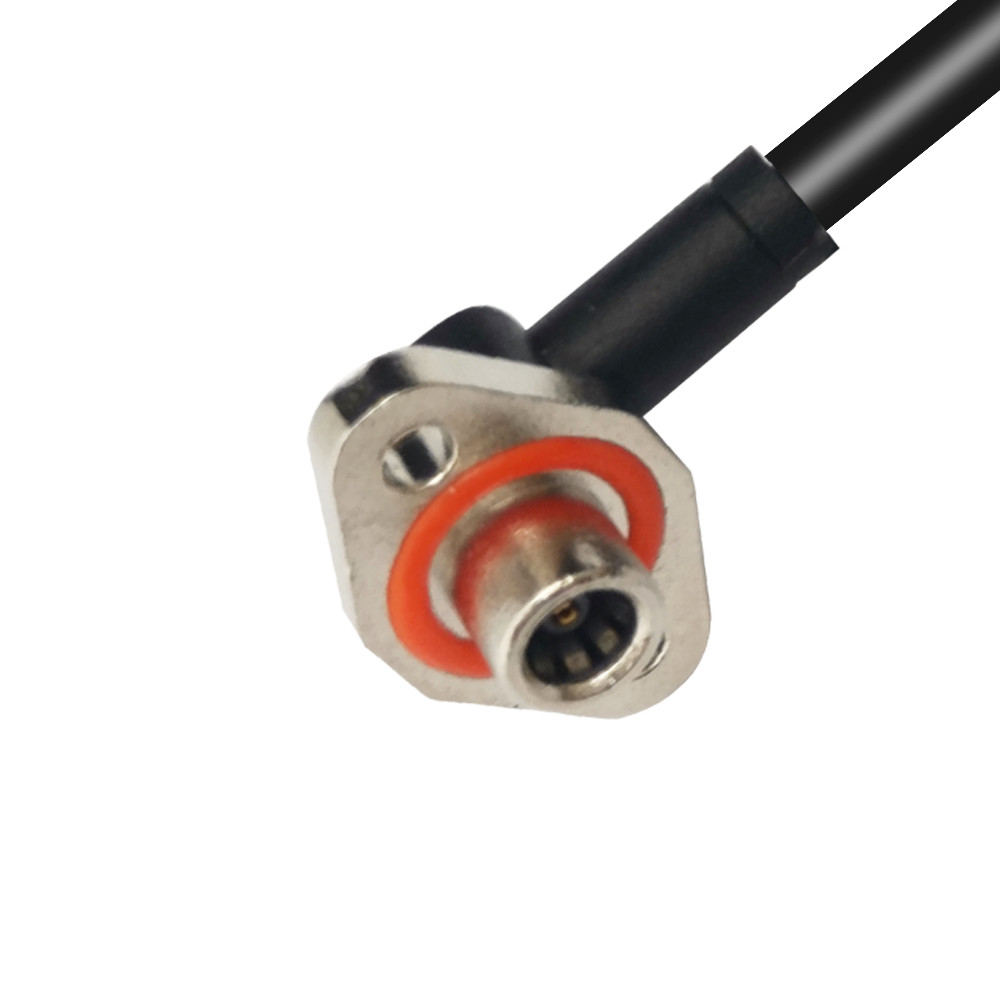

Code B SMB Coax FAKRA Extension Cable Adapter For Camera Connection

Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA Extension Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fakra Smb Cable Color Cream
Type Coaxial Application Advanced Driving Assistant System (ADAS)
Gender Female Male Customized Service OEM ODM Accept
High Light

SMB FAKRA Extension Cable

,

Coax FAKRA Extension Cable

,

Camera SMB Coax Cable

Leave a Message
Product Description

Fakra Code B Smb Coax Cable Adapter For Camera Connection Car Camera Cable



Product description:

FAKRA connectors are used as standard interfaces for high-frequency telematic applications in vehicles where the number one priority is to ensure safety. For example, in autonomous driving and driver assistance systems where it is necessary to determine exact positioning, continuously calculate routes, and detect and classify objects. High data volumes from several cameras, various sensors, and navigation sources must therefore be combined and transmitted in real time.



Main Feature:

1.High data rates up to 8 Gbps

2.13 mechanical and colored codings and one neutral coding

3.Primary and secondary lock

4.Stamped parts on separate coils (center contact, support sleeve, connector head plug)

5.RoHS, WEEE, ELV Conformity



Applications:

1.Radio antenna

2.GPS telematics or navigation

3.Infotainment & television

4.Mobile communication

5.RF bluetooth / WLAN applications

6.Radio frequency remote control for keyless entry

7.Vehicle auxiliary heating

8.Sensors for detection, evaluation and reactio



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of FAKRA connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Impedance 50Ω
Return loss ≥ 18 dB
Temperature range -40 °C to +105 °C
Mating cycles ≥ 25
Frequency range DC up to 6 GHz
Test voltage 750 V DC
Working voltage 60v DC
RF-leakage ≥65 dB
Retention force primary lock ≥80 N
Retention force secondary lock ≥60 N



FAKRA Coding:

Code B SMB Coax FAKRA Extension Cable Adapter For Camera Connection 0

FAQ:

1.Q: How can I get the cable price list?

A: Please contact us with detailed inquiry information, so we can offer the latest price for you.



2.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
