GPS Z Code FAKRA Extension Cable Female Adapter With Straight Coaxial Connector

Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA Adapter
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Adapter Connector Type Code Z
Impedence 50omh Connector Materials Brass
Color Water Blue Product Name Female Waterproof Automotive Connector
High Light

GPS FAKRA Extension Cable

,

Z Code FAKRA Extension Cable

,

Straight FAKRA Female Adapter

Leave a Message
Product Description

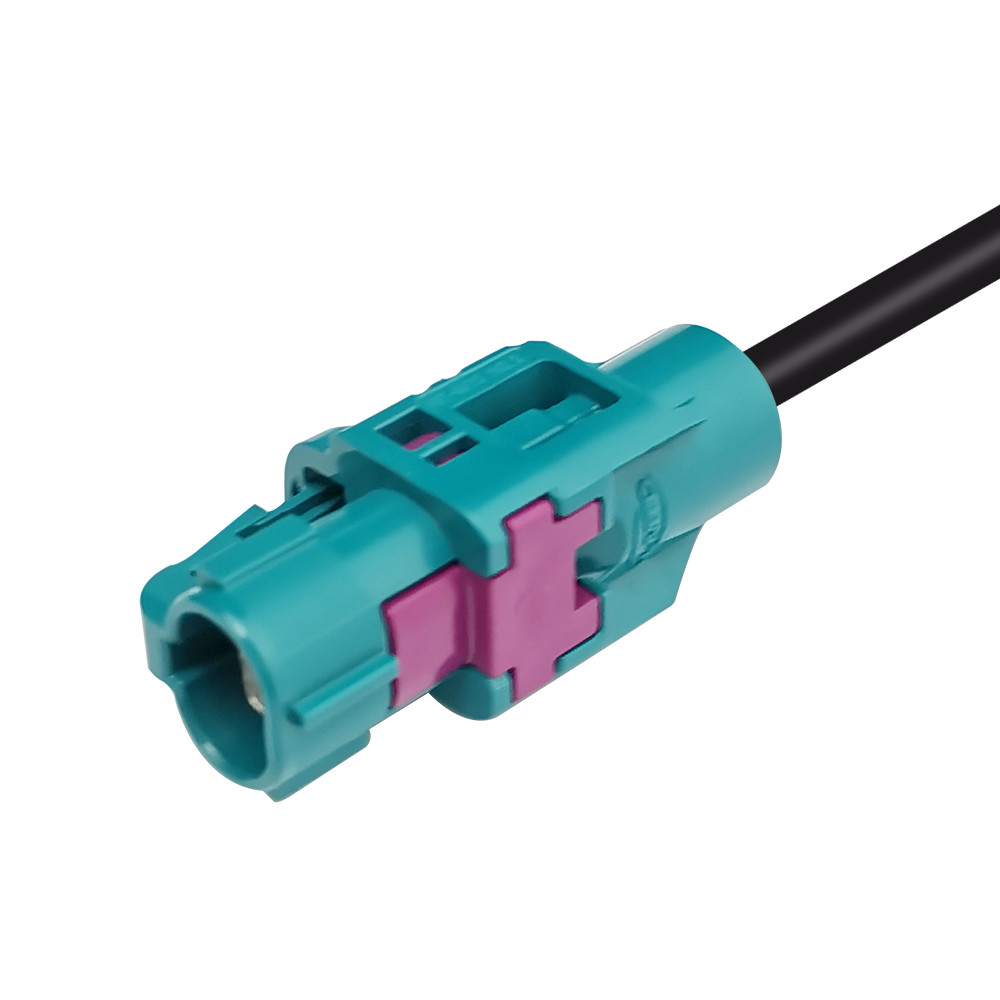

Fakra Female Adapter Z Code Straight Coaxial Connector For Gps Antenna



Product description:

The Fakra connector is especially to meet the requirements of eliminating the automotive industry. The Fakra connector is a widely used part in the automobile at present, which is used in the navigation system, remote control, Car phone, car TV, audio equipment, antenna, and other functions.



Main Feature:

1. Correct matching by color and error-proof structure.
2.The connector is better protected by the sheath.
3. Easy to install.
4. Connector and sheath shall not be confused.
5. Excellent frequency bandwidth, high reliability, and long service life.



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of FAKRA connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Shell Brass, nickel plated
Jack Beryllium bronze, gold plated
Insulator PTFE
Crimping sleeve Brass, nickel plated
Fixed ring Beryllium bronze
Plastic shell PA66+30%GF
impedance 50
frequency range 4Ghz
Dielectric withstand voltage 1,000V (RMS)
Inner conductor ≤ 20m
outer conductor ≤10m
Insulation impedance ≥1,000MΩ
VSWR DC - 2GHz<1.2
Mesh Get stuck
 durability ≥ 500 cycles



FAKRA Coding:

Right Angle FAKRA Aerial Connector RF Coaxial Practical PCB Mount 0

About Us:



Responsibility is the assurance of quality, and quality is the life of corporation. We have a strong R&D team, located in Shenzhen, China.We are looking forward to long term cooperation with customers, we will make best service and after sales service for all of our customers. If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.



FAQ:

1.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.


2.Q: How can I get the cable price list?
A: Please contact us with detailed inquiry information, so we can offer the latest price for you.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
