Durable RF FAKRA Antenna Adapter Z Code Plug Coaxial Extension Cable

Place of Origin CHINA
Model Number FAKRA Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Data Transmission Code Z Code
Color Waterblue Application Automotive,ADAS
Business Type OEM&ODM MOQ 20 PCS
High Light

Durable FAKRA Antenna Adapter


RF FAKRA Antenna Adapter


Z Code FAKRA Antenna RF Adapter

Leave a Message
Product Description

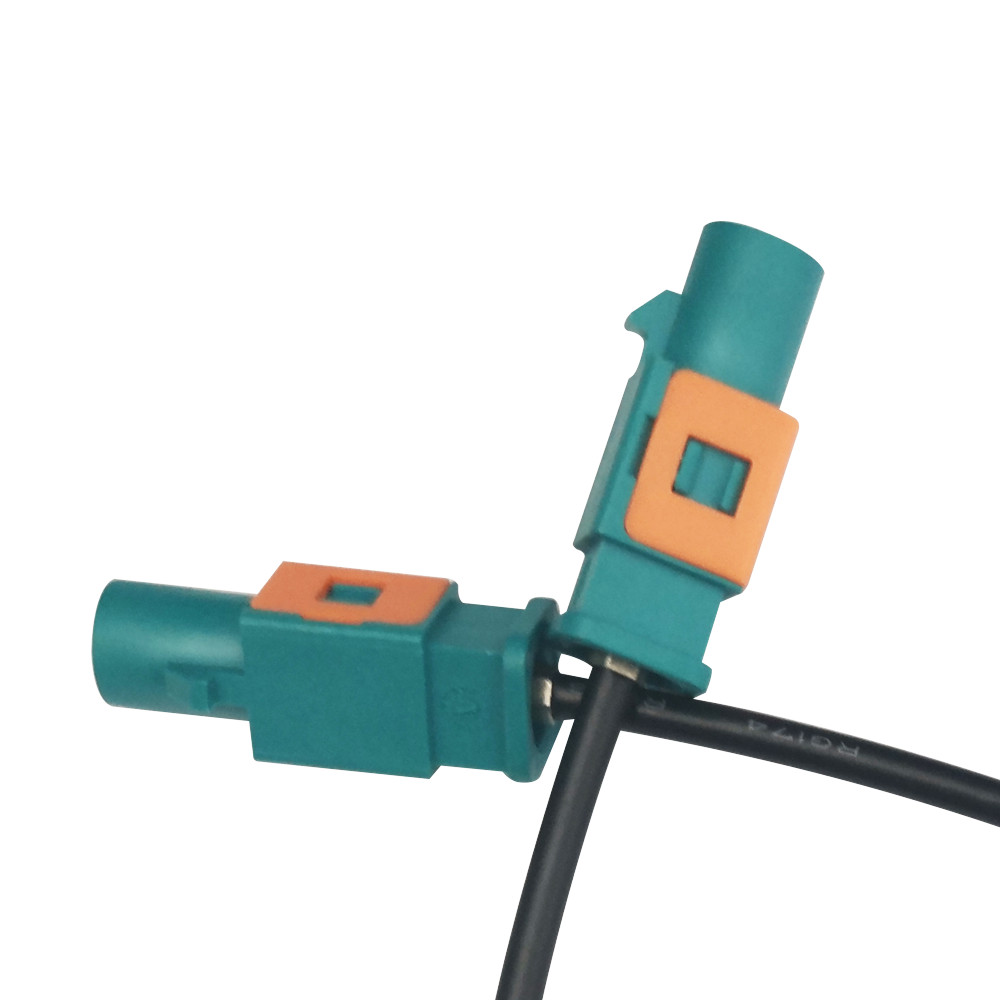

Antenna RF Adapter Wire Fakra Z Code Plug Extention Coaxial Cable


Product description:

FAKRA connectors are specifically designed for automotive applications such as radio antennas, GPS antennas or navigation, in-car mobile communications, RF Bluetooth applications as well as RF remote keyless entry and vehicle assisted heating. It features good shielding and signal stability, fast transmission rate, high cost performance and small size.


Main Feature:

1.Meeting the stringent requirements of the automotive industry.
2.Operating temperature range from -40 °C to +105 °C

3.The connector is be protected by the cap .

4.Easy to assembly.Optimized installation space.

5.Many difference between the connector and the cap.

6.MOQ:20 PCS.


1.Radio antennas
2.GPS telematics or navigation
3.Infotainment and TV
4.Mobile communications
5.RF Bluetooth/WLAN applications
6.Vehicle auxiliary heating


Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of FAKRA connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.


Technical Specifications:


Impedance 50Ω
Frequency Range DC up to 6 GH
Return loss ≥ 18dB
lnsulation resistance ≥1x 1GΩ
Center contact resistance ≤5mΩ
Outer contact resistance ≤5 mΩ
Test voltage 750VDC
Working voltage 60V DC
Contact current ≤4 A DC
RF-leakaga ≥65dB
Temperature range -40°C-+105°C
Mating cycles (standard) ≥25
Mating cycles (waterproof) ≥5
Engagerment force (single, standard) ≤25N
Engagement force (waterproof) ≤45 N
Disengagernent force ≥2N
Retention force latch ≥ 110N
Retention force primary lock ≥80 N
Retention force secondary lock ≥ 60 N


FAKRA Coding:


Durable RF FAKRA Antenna Adapter Z Code Plug Coaxial Extension Cable 0



1.Q: Do you accept customizable orders?

A: Yes, we accept OEM & ODM.


2.Q: How can I get the cable price list?
A: Please contact us with detailed inquiry information, so we can offer the latest price for you.

3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
